➤ Used Hyundai Wia KH63G - 2014 - Horizontal Machining Center

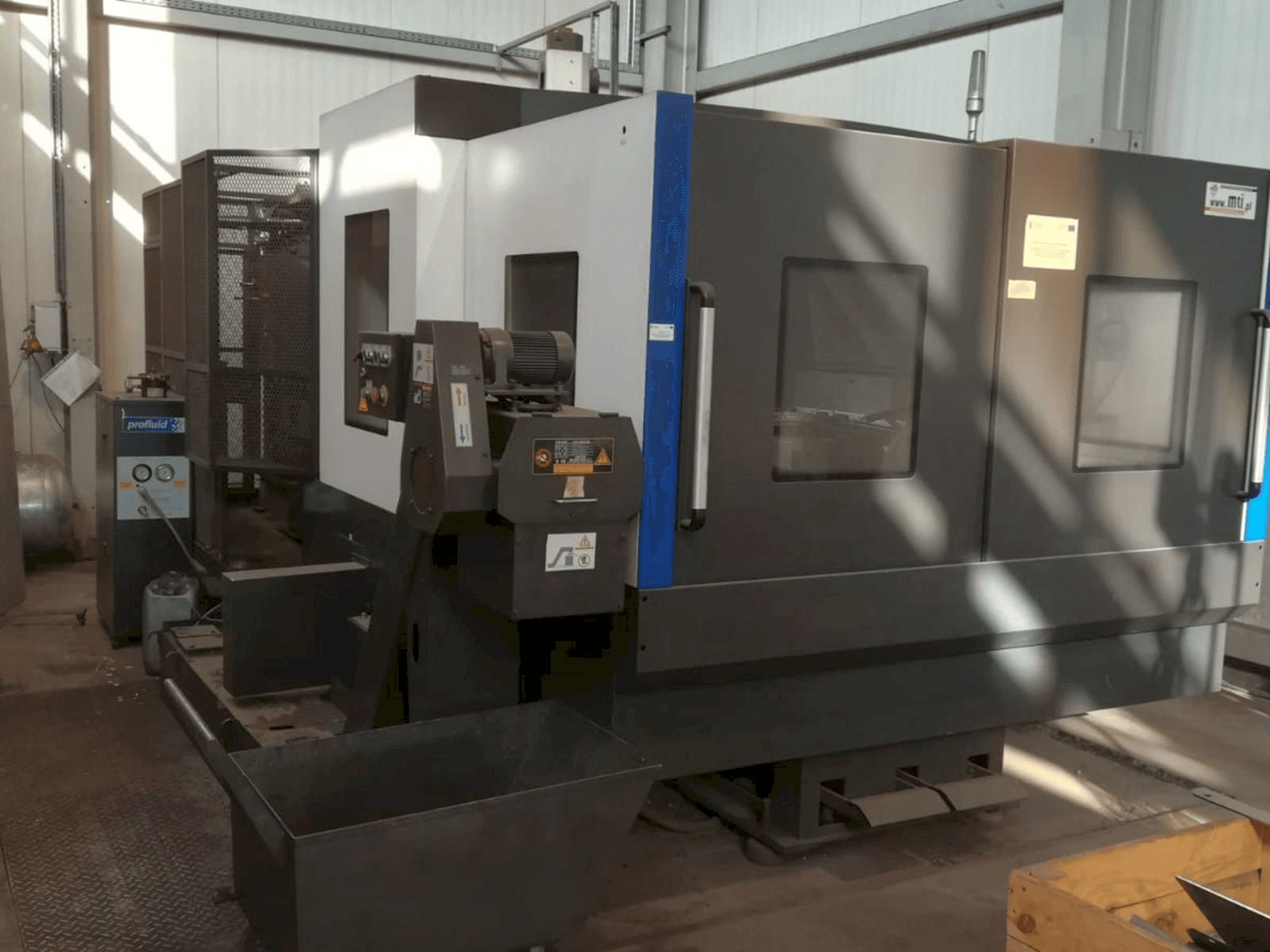

This Hyundai Wia KH63G Horizontal Machining Center was built in the year 2014 in South Korea. It has been on for 5500 hours, of which 3000 are spindle hours. It is operated through a FANUC 31 control unit. This 4 axis machine comes with a spindle speed range 11-8000 rpm. It is in very good working conditions, ready for test and with its full documentation available.

Overview

brand: Hyundai Wia
year: 2014
MODEL: KH63G
production hours: 5500
application type: Milling
Location: Poland
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Hyundai Wia KH63G

General Data

Measurements width: 3530 mm
Measurements depth: 5320 mm
Measurements height: 3106 mm
Machine weight: 14000 kg

Control Unit

Brand: FANUC
Model: 31

Main drive

Spindle speed range: 11-8000 1/MIN
Spindle motor power: 22 kW
Tool taper: ISO 50
Number of axis: 4

Movement

X-AXIS Movement: 950 mm
Y-AXIS Movement: 825 mm
Z-AXIS Movement: 760 mm

Table

Outer length: 630 mm
Outer width: 630 mm
Max distance between vertical spindle and table: 825 mm
Table load: 1000 kg

Turret

Number of tool slots: 60 pcs

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 36 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - No. Of cnc controlled axles: 4 pcs
- - No. Of pallets: 2 pcs
- - Max workpiece height: 875 mm
- - Max. Feed rate in x/y/z: 333 mm/s
- - Apc no. Of pallet : 2 pcs
- - Pallet change time: 26 s
- - Apc type: shuttle
Qualitative Machine Benefits:
- - Machine in very good working condition.
- - Ready for test.
- - Full documentation available.

Extra information

- There are no tooling included in the offer.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
