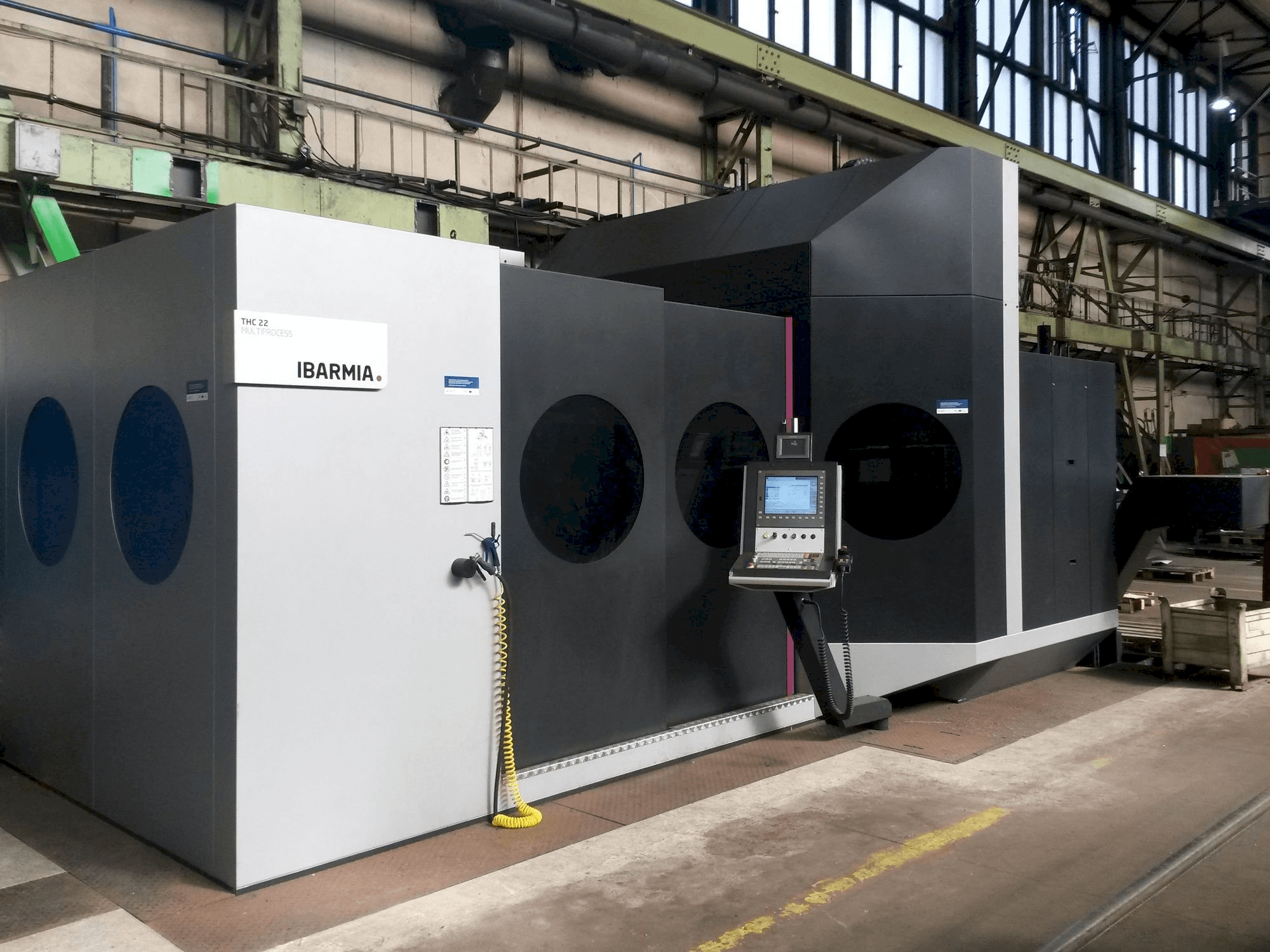

IBARMIA THC 22 MULTIPROCESS Vertical Machining Center

This IBARMIA THC 22 MULTIPROCESS Vertical Machining Center was manufactured in the year 2015 in Spain. It has been working for only 2500 hours. This 5 axis machine is equipped with a Heidenhain TNC i640 HSCI control unit. This machine can work with a spindle speed range up to 12000 rpm. Machine in very good condition, low hours.

Overview

brand: IBARMIA
year: 2015
MODEL: THC 22 MULTIPROCESS
production hours: 2500
application type: Milling
Location: Czech Republic
machine type: Mill-Turn Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - IBARMIA THC 22 MULTIPROCESS

Control Unit

Model: TNC i640 HSCI
Brand: HEIDENHAIN

Main drive

Spindle speed range: 12000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 2200 mm
Y-AXIS Movement: 1600 mm
Z-AXIS Movement: 1500 mm

Workpiece

Workpiece z: 1750 mm
Workpiece weight: 10000 kg

Tools

Slots in storage: 60
Max weight: 20 kg
Max tool diameter: 125/250 mm
Max tool length: 450 mm
Type of tool holder: HSK-A 100 DIN 69893

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turn table diameter 1600 mm, max. Turning dia. 2200 mm
- - Table rpm 400, power (s1-100%) 81 kw
- - Min. -max. Distance spindle nose/table 0-1500 mm
- - Tilting head (b axis) range 180 deg. +/- 15 degrees
- - Spindle motor power (s6-40%/s1-100%) 74/48 kw
- - Spindle torque (s6/s1) 452/303 nm
- - Cooling through spindle, outer tool cooling
- - Remote hand wheel
Qualitative Machine Benefits:
- - Very good condition, low hours!
- - Machine manual included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
