- IBARMIA ZV 50/3000 Vertical Machining Center

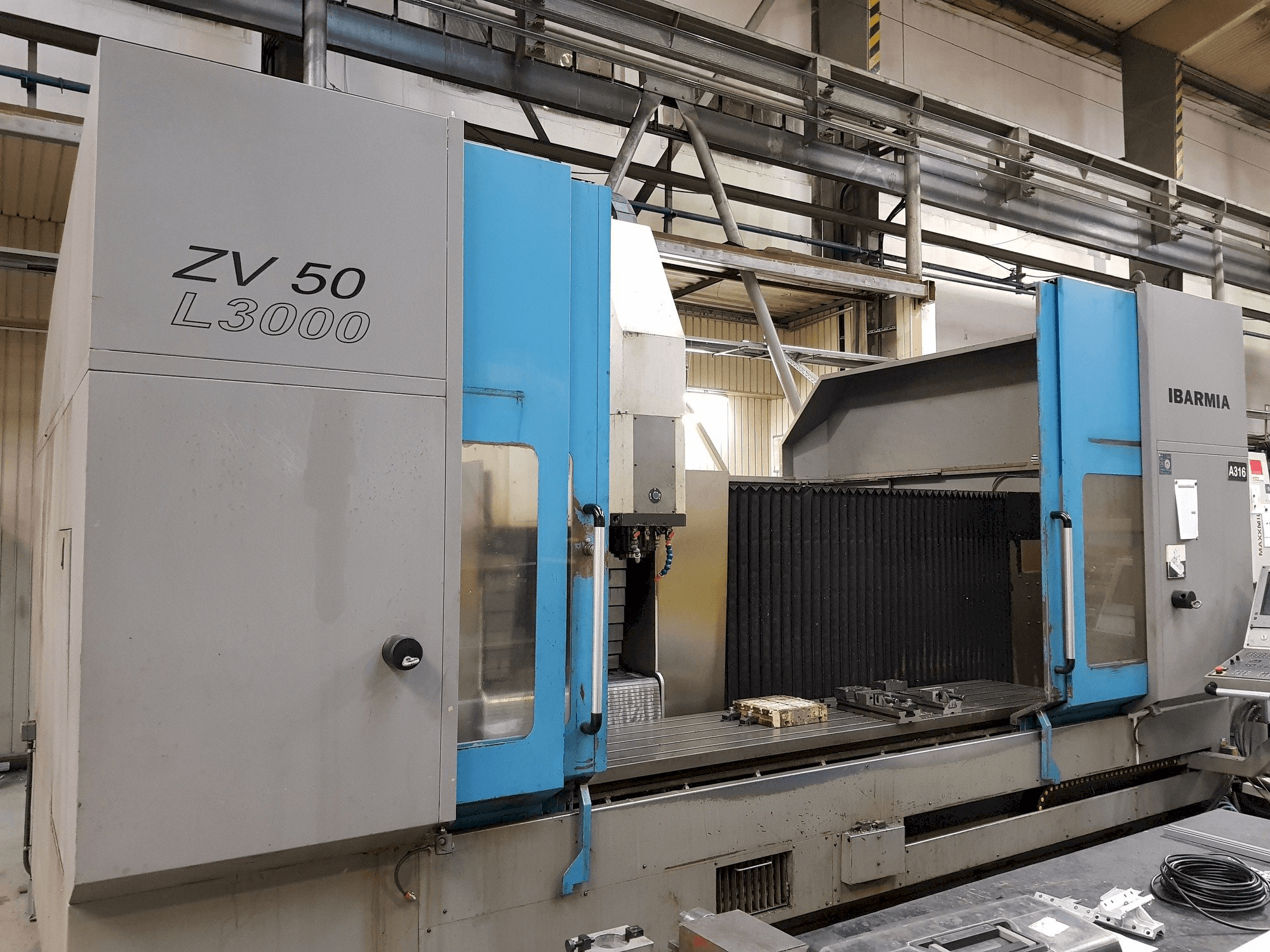

This IBARMIA ZV 50/3000 Vertical Machining Center was manufactured in the year 1999 in Spain. This 3 axis machine can work with a spindle speed range up to 6000 rpm and have 50325 / 21308 of working hours. It counts with a Heidenhain TNC 426 control unit and a is in very good condition.
Overview
- brand: IBARMIA
- year: 1999
- MODEL: ZV 50/3000
- application type: Milling
- Location: Czech Republic
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: Heidenhain
Technical Information - IBARMIA ZV 50/3000
General Data
- Measurements width: 7120 mm
- Measurements depth: 3500 mm
- Measurements height: 3200 mm
Control Unit
- Brand: Heidenhain
- Model: TNC 426
Main drive
- Number of spindles: 1
- Spindle speed range: 6000 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 3000 mm
- Y-AXIS Movement: 600 mm
- Z-AXIS Movement: 800 mm
Workpiece
- Workpiece weight: 2800 kg
Table
- Outer length: 3600 mm
- Outer width: 650 mm
- Number of tslots: 5
- Distance between: 125 mm
Tools
- Slots in storage: 30
- Type of tool holder: SK-50
Media
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Information
- Technical Machine Benefits:
- - Pendular machining (optional) with x=1060 mm each side
- - Distance between table surface and spindle nose (min. /max. ): 200 mm / 1000 mm
- - Main motor power 31 kw
- - 2x side doors
- Qualitative Machine Benefits:
- - Very good condition
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
