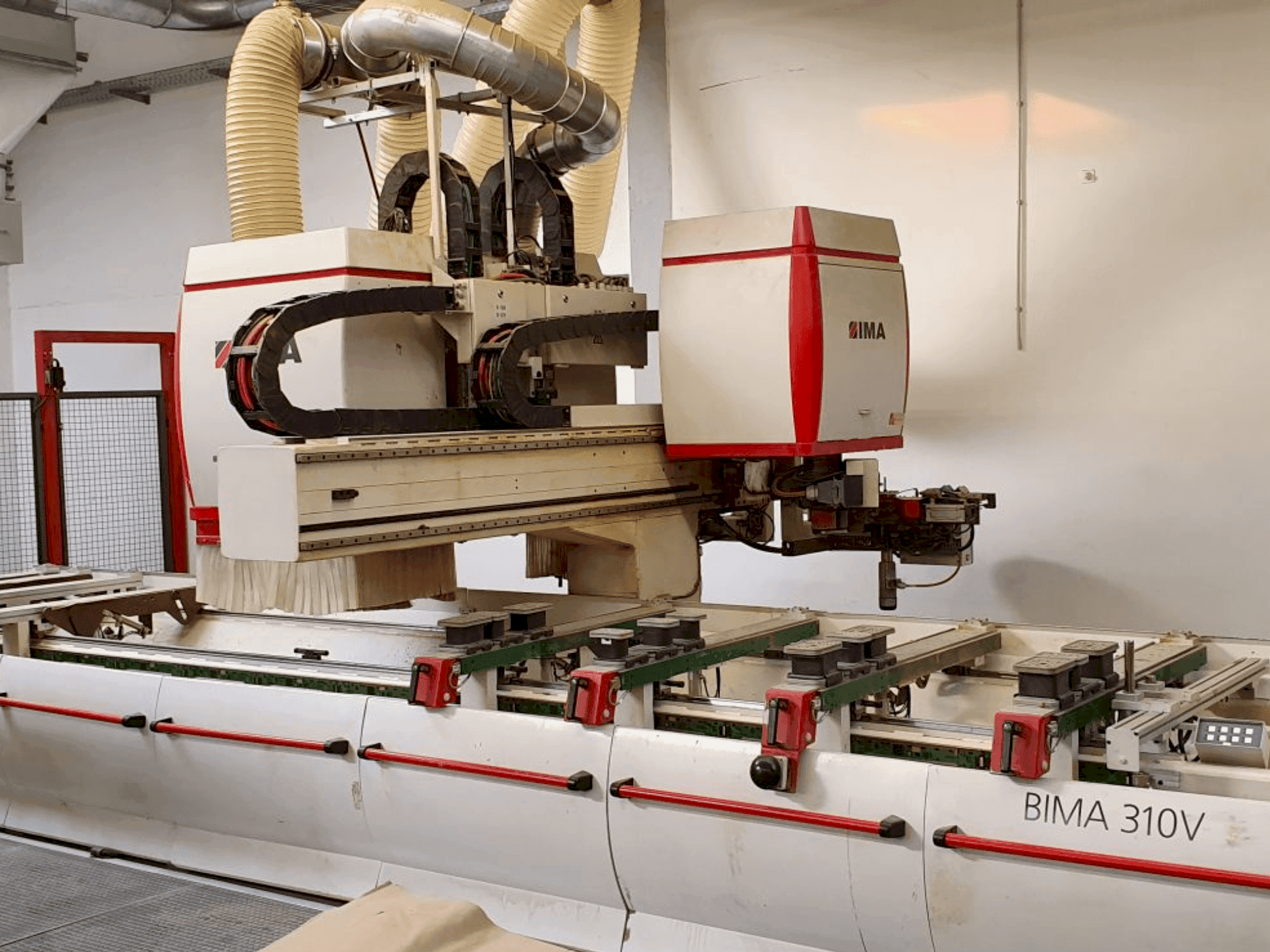

➤ Used IMA BIMA 310V 120/600 For sale | gindumac.com

This woodworking machine was manufactured in 2004. It features a robust 12 kW main spindle with a programmable speed range of 1500-24000 rpm and a tool holder HSK F63. The machine table includes 6 support arms and sets of suction plates, adjustable for various workpiece sizes. Additionally, it boasts a 100 m/min rapid traverse on the X-axis and an 18-fold tool change magazine. For more information about this woodworking machine, please reach out to us.

Overview

brand: IMA
year: 2004
MODEL: BIMA 310V 120/600
application type: CNC Wood Machining
Location: Germany
machine type: CNC Wood Machining Centre

Technical Information - IMA BIMA 310V 120/600

Main drive

Spindle speed range: 1500 - 24000 1/MIN
Spindle motor power: 12 kW
Tool taper: HSK F63 = 38 mm

Movement

X-AXIS Movement: 6000 mm
X-AXIS Rapid traverse: 100 m/min
Y-AXIS Movement: 1300 mm
Z-AXIS Movement: 100 mm
Z-AXIS Rapid traverse: 25 m/min
C-AXIS Movement: 360º MM

Table

Height adjustment: 950 mm

Tools

Slots in storage: 18
Max weight: 6 kg
Max tool diameter: 100 mm
Max tool length: 150 mm

Media

Main electronic connection: 3/N/PE, 400/230 V, 50 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Pull-in force: 11000 n
- - High-speed and precision machining with rapid traverse rates.
- - Versatile tool handling with an 18-fold tool change magazine and programmable spindle.
- - Efficient cooling and lubrication systems enhance spindle longevity and performance.
- - Central connection for extraction
- - Vacuum pump: 100 m3/h
- - Tool coding: place-coded
- - Air pressure: 6 bar
- - Machine table:6 support arms, adjustable in x-direction stops: rear and middle, all program-controlled suction plates: 6 sets, total of 12 suction plates alternating field area details for pendulum machining
- - Spindle cooling: water cooling, spindle lubrication: unique factory grease lubrication
Qualitative Machine Benefits:
- - Precision in machining with programmable spindle speeds and directions.
- - Enhanced flexibility with adjustable machine table and support arms for various workpiece sizes.
- - Drive: frequency-controlled three-phase motor
- - Direction of rotation: right/left, programmable
- - Tool feed: automatic
- - Max. Clamping height from upper edge of suction plate z1: 100 mm
- - Max. Workpiece thickness z2: depends on equipment/application

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
