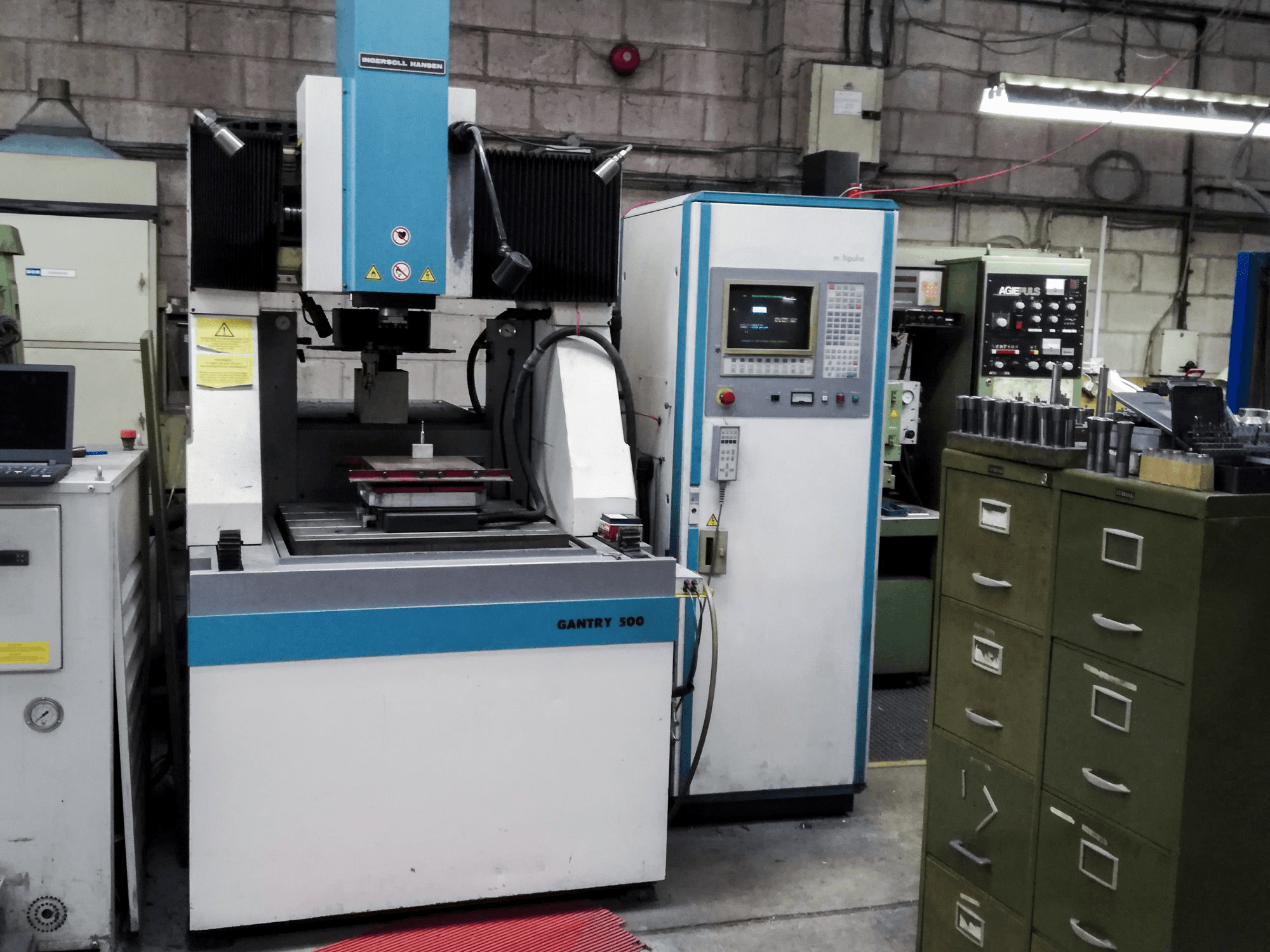

INGERSOLL HANSEN Gantry 500 Erosion Machine

This Gantry 500 is an Erosion Machine built by German manufacturer INGERSOLL HANSEN in 1996. This machine operates through a Rittal Multipulse Control unit with 1989 release. Please note that the machine’s cooling unit is not included in this sale.

Overview

brand: INGERSOLL HANSEN
year: 1996
MODEL: Gantry 500
application type: EDM
Location: United Kingdom
machine type: Die-Sinking EDM Machine
availability: Sold

Technical Information - INGERSOLL HANSEN Gantry 500

General Data

Measurements width: 2100 mm
Measurements depth: 2450 mm
Measurements height: 2600 mm
Machine weight: 4800 kg

Control Unit

Model: Multipulse
Release: 1989

Main drive

Number of spindles: 1

Movement

X-AXIS Movement: 525 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 375 mm

Table

Outer length: 730 mm
Outer width: 630 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 8.5 kVA
Dielectic tank: 400 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
