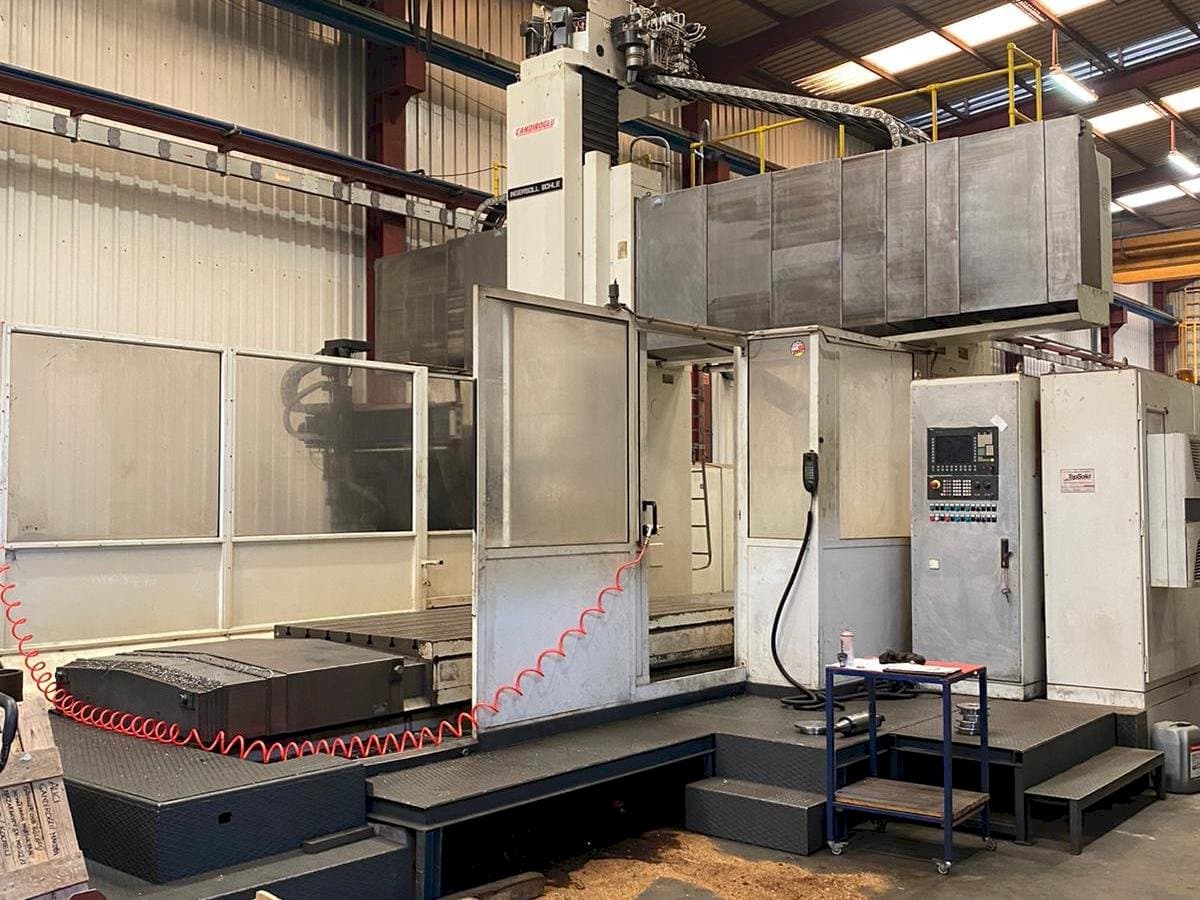

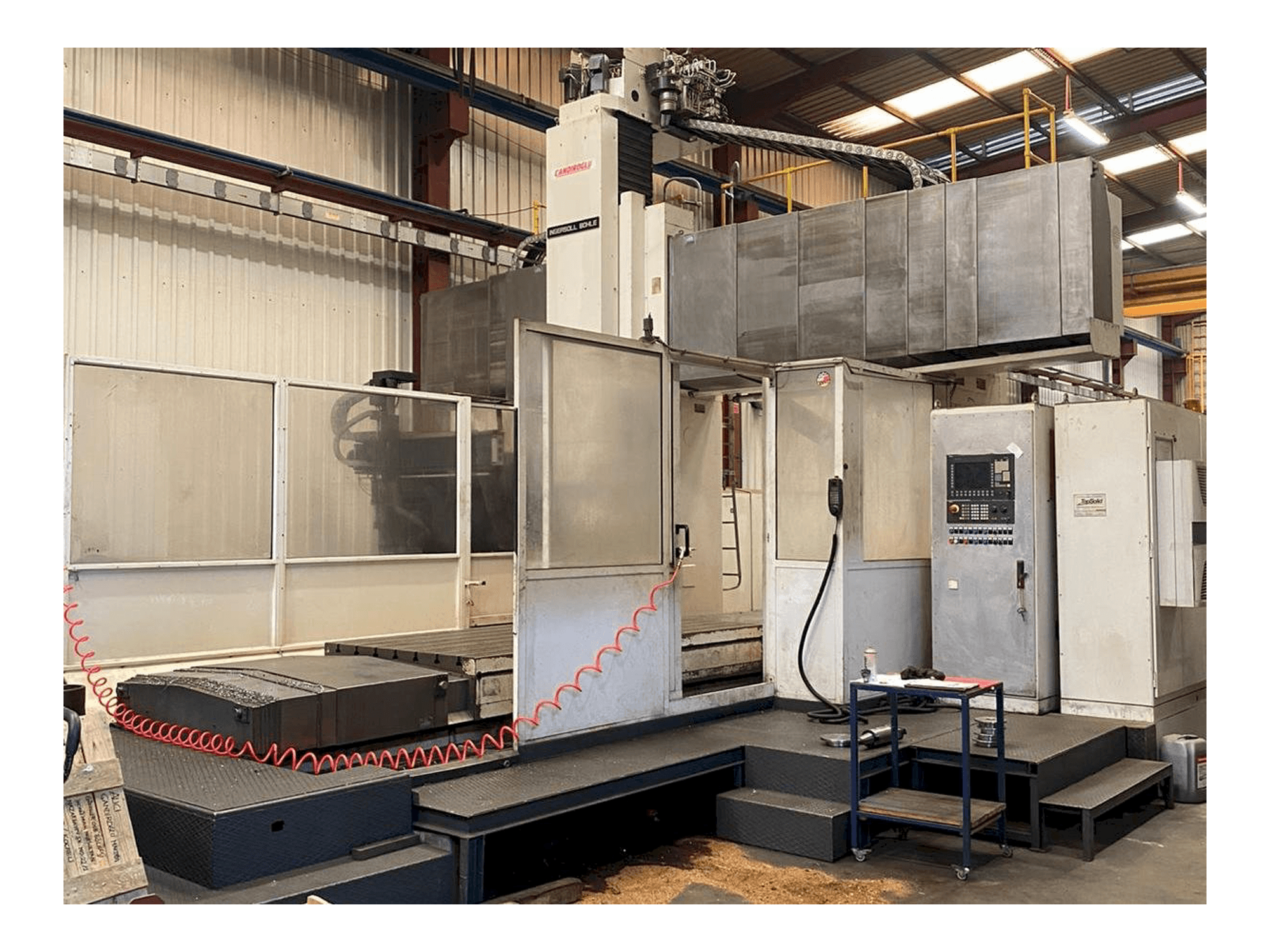

INGERSOL BOHLE Master Center T1

This INGERSOLL Master Center T1 Milling Machine was manufactured in the year 1991. It is equipped with a Siemens 840 D control unit. This 5 axis machine is capable of working with a spindle speed 40-4000 rpm, and a table surface 3000x1500 mm.

Overview

brand: INGERSOLL
year: 1991
MODEL: Master Center T1
application type: Milling
Location: Turkey
machine type: Universal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - INGERSOLL Master Center T1

General Data

Machine weight: 85000 kg

Control Unit

Model: 840 D
Brand: SIEMENS

Main drive

Spindle speed range: 40-4000 1/MIN
Spindle motor power: 50 kW
Number of axis: 5

Movement

X-AXIS Movement: 3900 mm
Y-AXIS Movement: 2700 mm
Z-AXIS Movement: 1100 mm

Table

Outer length: 3000 mm
Outer width: 1500 mm
Table load: 30000 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 2000mm between two columns x-y
- - Tool change 60 pcs
- - Head change 3 pcs
- - Torque 2400 nm
- - Spindle mount iso 50
- - T-slot width 28 mm
Qualitative Machine Benefits:
- - Refurbished in 2017

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
