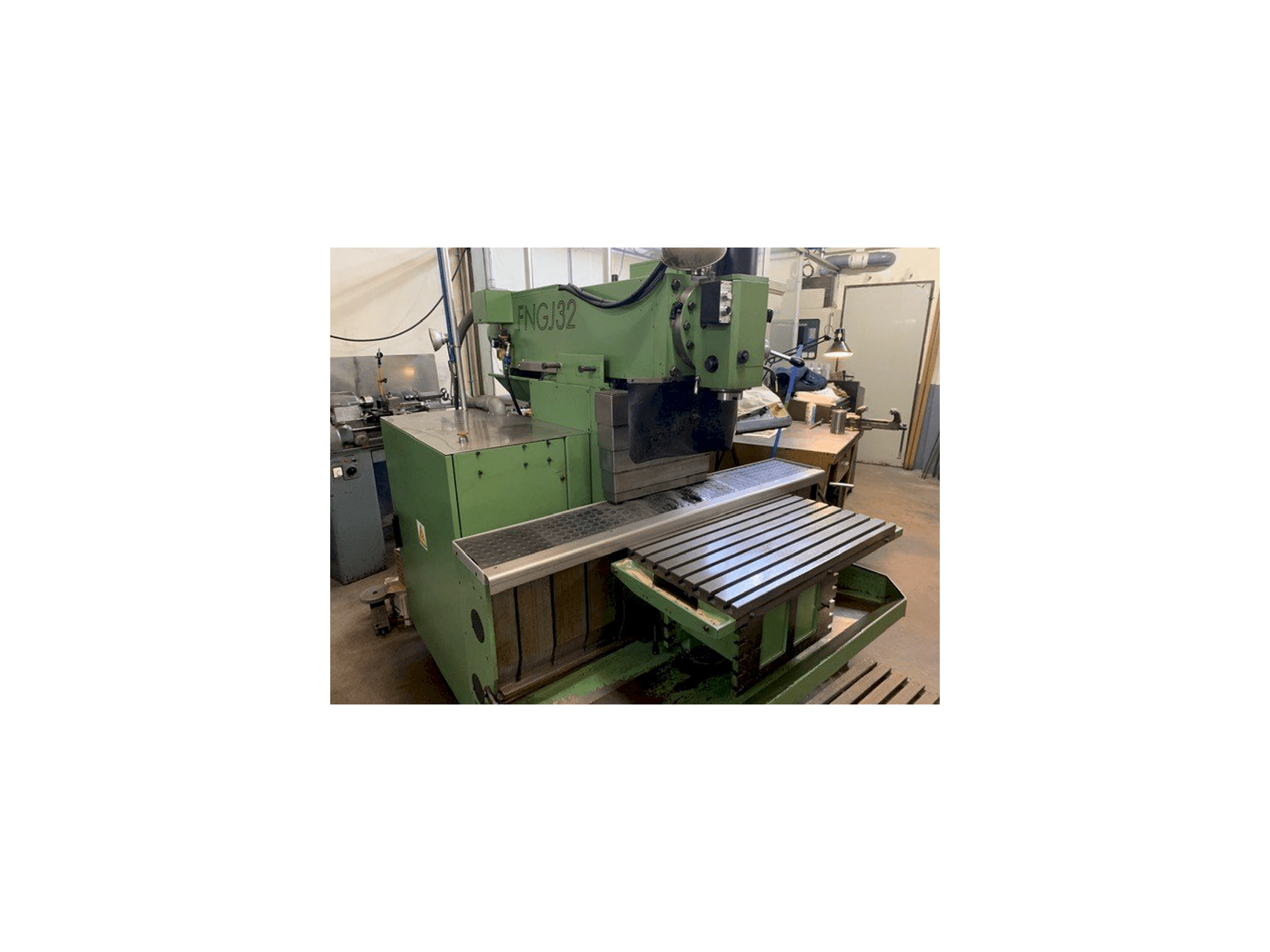

INTOS FNGJ32 Milling Machine

This INTOS FNGJ32 Milling Machine was built in the year 2000 in Czech Republic. It stands out for having a modified Z axis with ball screw, and larger flywheel, to move it more smoothly and precisely, with modification plans. This machine incorporates a HEIDENHAIN 3 axis viewer and a shaft with cone ISO-40. It includes as well pneumatic clamping of tools, with built-in lubricator.

Overview

brand: INTOS
year: 2000
MODEL: FNGJ32
application type: Milling
Location: Spain
machine type: CNC Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - INTOS FNGJ32

General Data

Machine weight: 1725 kg

Control Unit

Brand: HEIDENHAIN

Main drive

Main motor power: 3 kW

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 400 mm

Table

Outer length: 400 mm
Outer width: 800 mm

Media

Main electronic connection: 400 V/ 50 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 3 axis heidenhain viewer
- - Pneumatic clamping of tools, with built-in lubricator
- - Modified z axis
- - Centralized lubrication
- - Shaft with cone isa-40
- - Newly mounted precision p3 bearings
- - Drilling head
- - Option to work with y-axis car (iso-40).
Qualitative Machine Benefits:
- - Perfect conditions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
