- Johnford DMC-2100H Milling Machine

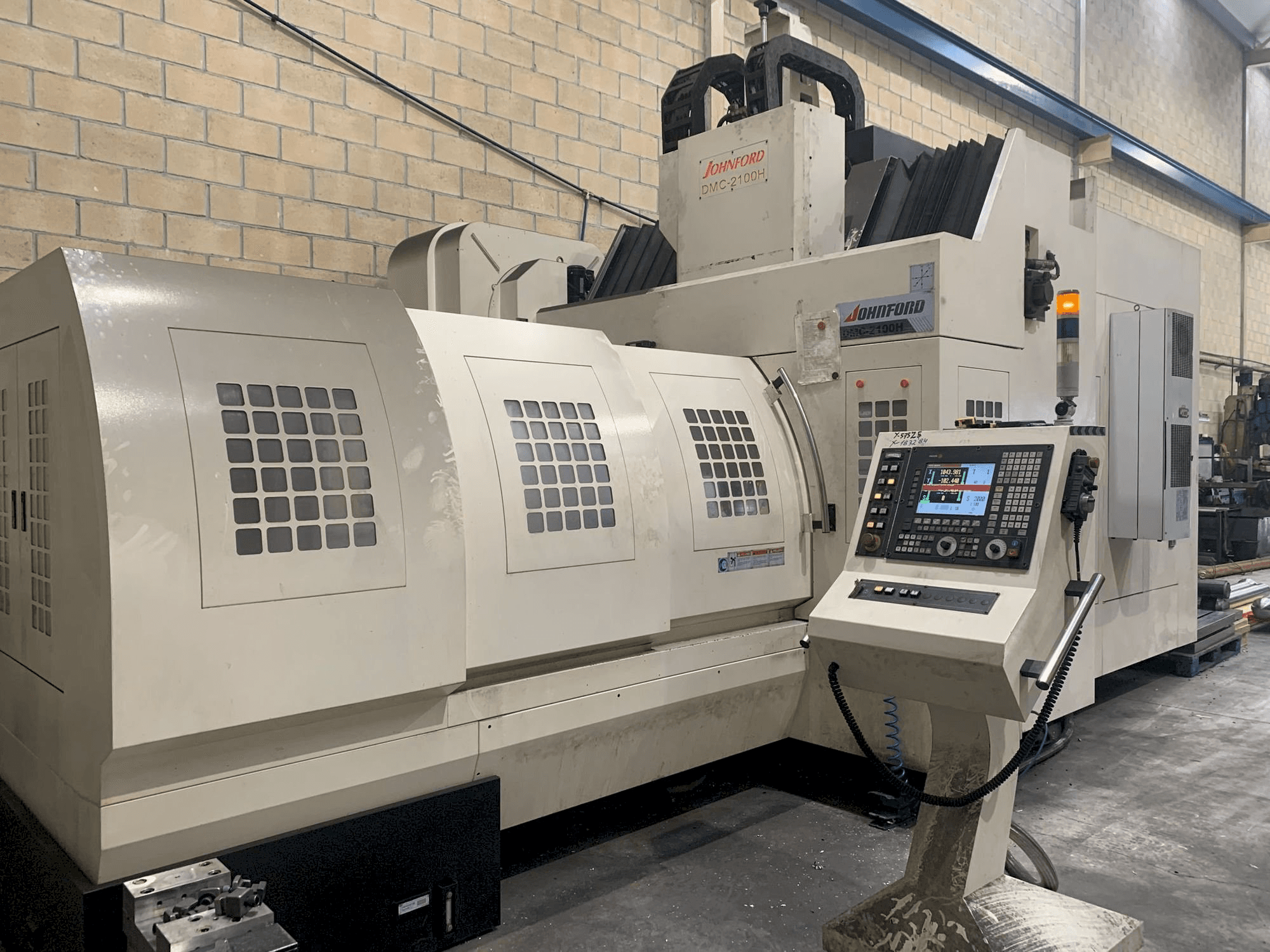

This Johnford DMC-2100H Milling Machine was manufactured in Taiwan in the year 2017. This 3 axis machine is equipped with a Fagor 8055 control unit. It can work with a spindle speed up to 6000 rpm. The machine is in good conditions, counts with low working hours.
Overview
- brand: Johnford
- year: 2017
- MODEL: DMC-2100H
- application type: Milling
- Location: Spain
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: Fagor
Technical Information - Johnford DMC-2100H
General Data
- Measurements width: 6515 mm
- Measurements depth: 3400 mm
- Measurements height: 3800 mm
- Machine weight: 23600 kg
Control Unit
- Brand: Fagor
- Model: 8055
Main drive
- Spindle speed range: 6000 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 2070 mm
- Y-AXIS Movement: 1300 mm
- Z-AXIS Movement: 800 mm
Workpiece
- Workpiece weight: 10000 kg
Table
- Outer length: 2100 mm
- Outer width: 1100 mm
Tools
- Slots in storage: 24
- Max weight: 15 kg
- Max tool diameter: 200 mm
- Max tool length: 400 mm
- Type of tool holder: ISO-50
Additional Information
- Technical Machine Benefits:
- - Distance between columns 1300 mm
- Qualitative Machine Benefits:
- - Little working hours
- - Very good condition
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
