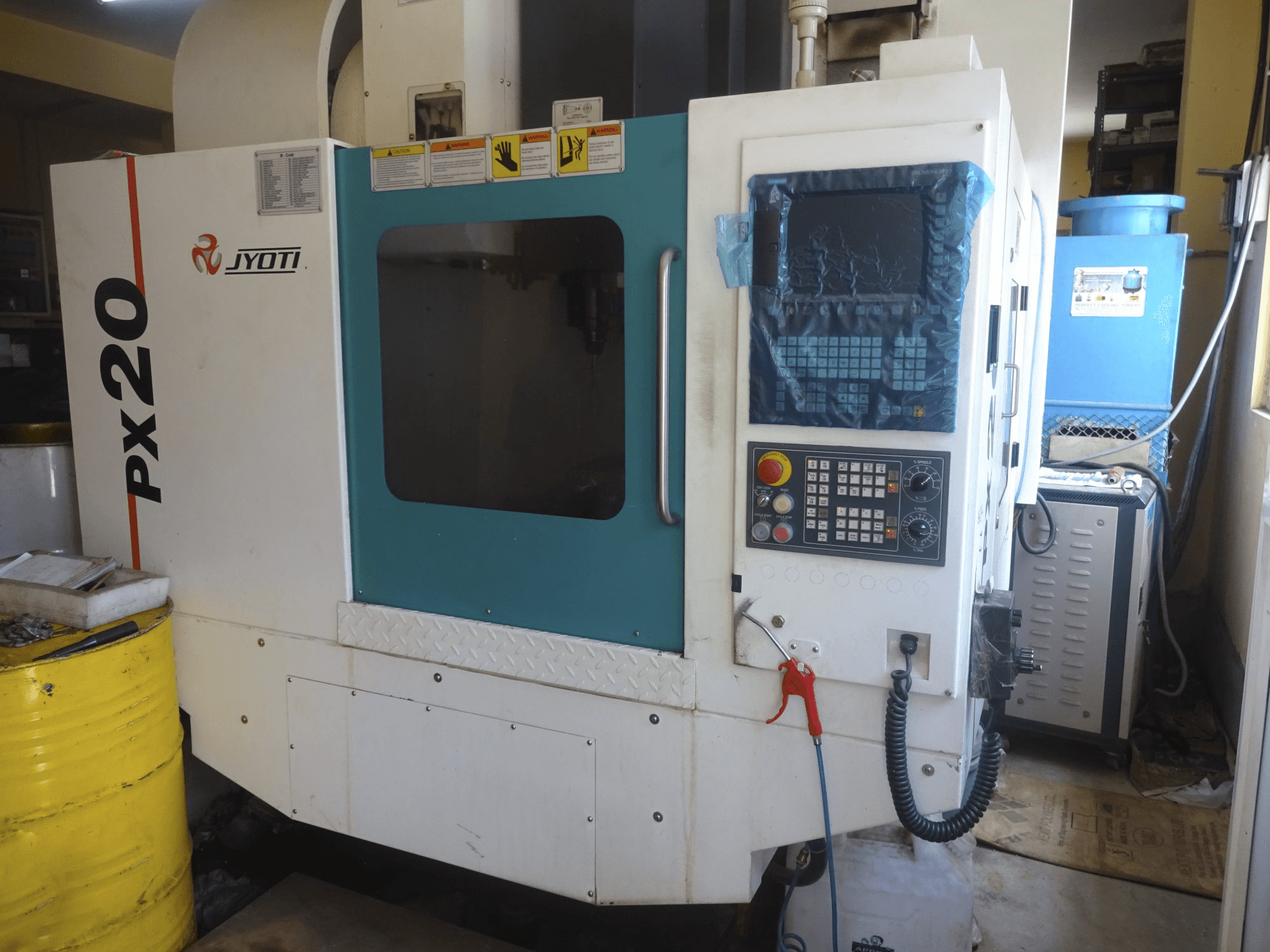

JYOTI PX-20 Vertical Machining Center

This JYOTI PX-20 Vertical Machining Center was manufactured in 2017 in India and has a working record of 2000 production hours. With a SIEMENS SINUMERIK 828D Control unit, this model stands out due to its wide movement range.

Overview

brand: JYOTI
year: 2017
MODEL: PX-20
production hours: 2000
application type: Milling
Location: India
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - JYOTI PX-20

General Data

Measurements width: 2837 mm
Measurements depth: 2125 mm
Measurements height: 2800 mm
Machine weight: 3650 kg

Control Unit

Model: SINUMERIK 828D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 0-8000 1/min
Spindle bore: 70 mm

Movement

X-AXIS Movement: 510 mm
X-AXIS Rapid traverse: 25 m/min
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 510 mm

Table

Outer length: 660 mm
Outer width: 460 mm
TSlots size: 3x14x125 mm

Tools

Slots in storage: 20
Max weight: 7 kg
Max tool diameter: 89 mm
Max tool length: 250 mm

Media

Main electronic connection: 415 V

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
