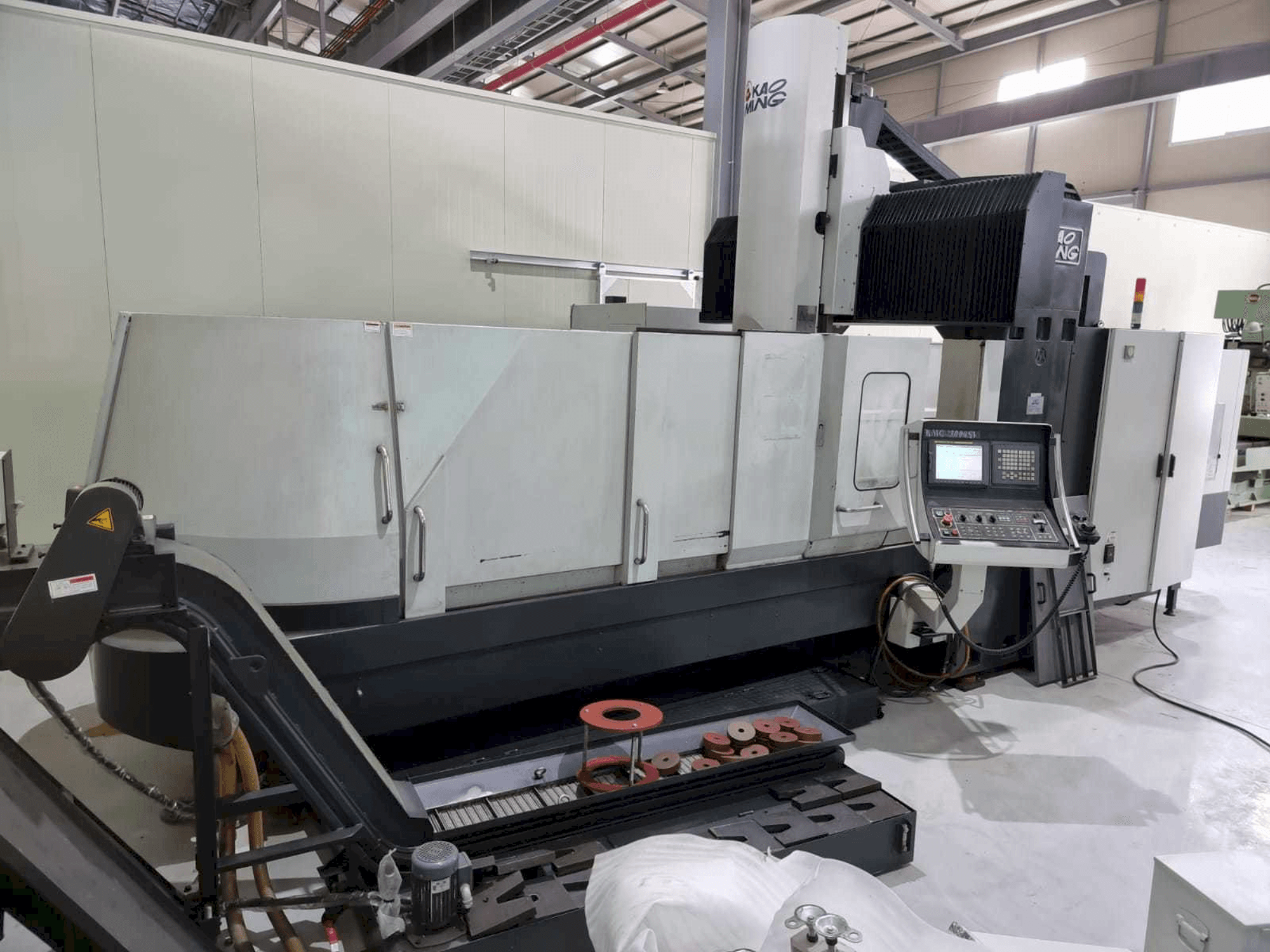

KAOMING KMC-3000SV Milling Machine

This KAOMING KMC-3000SV Milling Machine was manufactured in year 2012. It is equipped with a FANUC Series 18i-MB control unit. This 3 axis machine is capable of working with a spindle speed up to 8000 rpm.

Overview

brand: KAOMING
year: 2012
MODEL: KMC-3000SV
application type: Milling
Location: South Korea
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - KAOMING KMC-3000SV

Control Unit

Model: Series 18i-MB
Brand: FANUC

Main drive

Spindle speed range: 8000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 3230 mm
Y-AXIS Movement: 1400 mm
Z-AXIS Movement: 850 mm

Table

Outer length: 1250 mm
Outer width: 3000 mm

Media

Main electronic connection: 220V - 60Hz
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindel between table:1,050mm
- - Distance between columns:1,500mm
- - Tool taper: bt50
- - Magazine tool capacity : 30ea
- - Call right(led 3 step)
- - Mpg handle
- - Z axis ram: 850
Qualitative Machine Benefits:
- - Manual books

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
