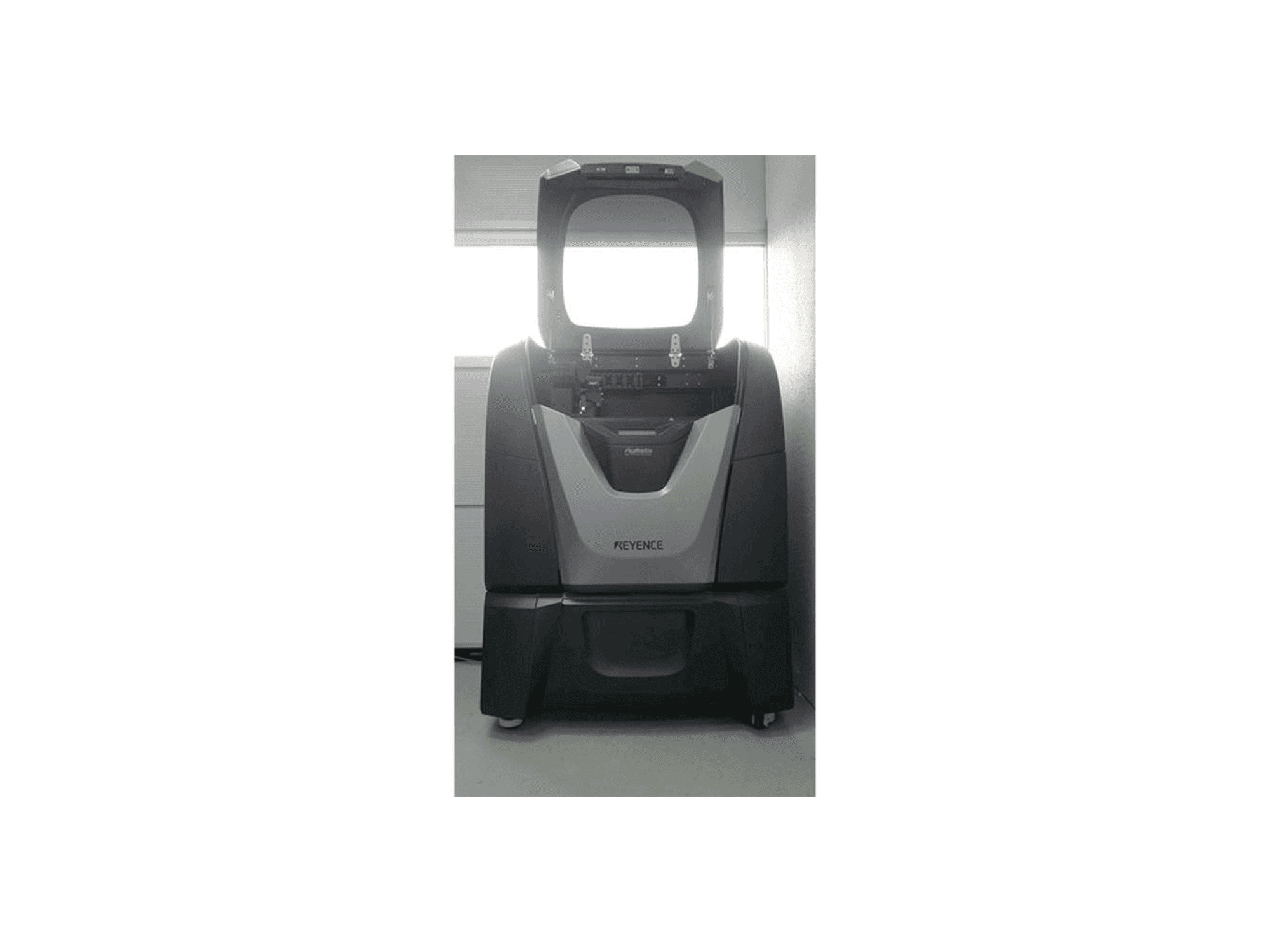

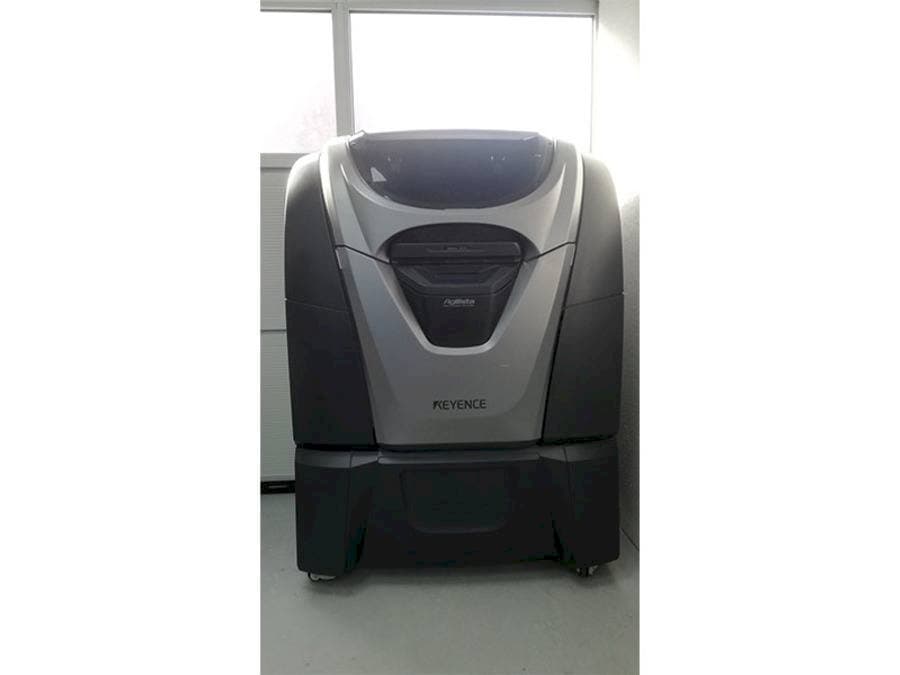

KEYENCE - Agilista-3200WDE-3DP-KEY-2016-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Wall thicknesses from 0. 2mm / building material with good transparency
  • - Very precise components without distortion at a good production speed
  • - High resolution (ar-m2): 15 µm / normal resolution (ar-m2): 20 µm / normal resolution (ar-h1): 20 µm / normal resolution (ar-g1l / h): 30 µmmin.
  • - Heat-resistant printing material ar-h1: layer thicknesses of 20 μm resolutionwall thickness: 0. 8 mm. Temperature resistance up to 100 ° c
  • - Elastic silicone printing material ar-g1l / ar-g1h: layer thicknesses of 30 μm resolution. Min. Wall thickness from 0. 5 mm (ar-g1l) / 0. 3 mm (ar-g1h). Printed models with the durability and properties of silicone
  • - Elastic silicone printing material ar-g1l / ar-g1h: very thin-walled and elastic models enable initial design tests. Thanks to the water-soluble support material, the models do not break or tear. Heat-resistant like normal silicone up to 150 ° c (ar-g1h) / 200 ° c (ar-g1l)
  • - Stl file / ar-s1 (water soluble)
  • - Standard printing material ar-m2: layer thicknesses of 15 μm resolution. Min. Wall thickness: 0. 2 mm
  • - Standard printing material ar-m2: high flexibility with small wall thicknesses for the implementation of locking lugs. Very stable components due to high strength
  • - Standard printing material ar-m2: quick assessment of assemblies through transparency. Long durability and dimensional stability for jig and jig construction
• Qualitative Machine Benefits:
  • - Polyjet printing with water-soluble support material reliable printer with an active maintenance contract
