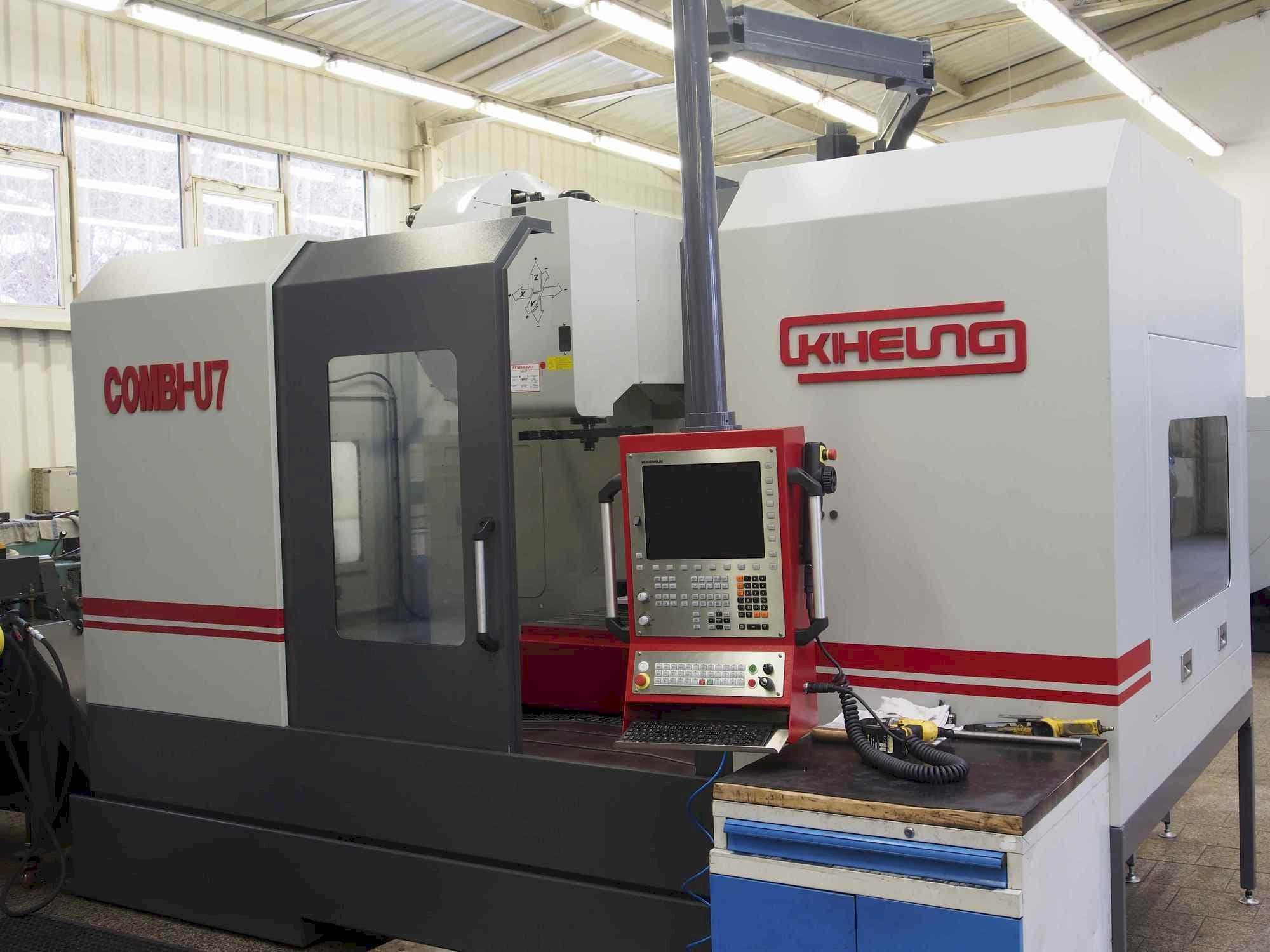

➤ Used KIHEUNG Combi-U7 - Vertical Machine Center

This KIHEUNG Combi-U7 Vertical Machine Center was manufactured in South Korea in the year 2016. It has only 3781 of working hours, of which 988 are spindle hours. This 3 axis machine operates through a Heidenhain iTNC 620 control unit. It has a spindle speed up to 4000 rpm. It includes a tool, workpiece probes, and set of tool holders. It is in very good condition, low hours.

Overview

brand: KIHEUNG
year: 2016
MODEL: Combi-U7
production hours: 3781
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - KIHEUNG Combi-U7

General Data

Machine weight: 12000 kg

Control Unit

Model: iTNC 620
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 4000 1/MIN
Spindle motor power: 24/38 kW
Number of axis: 3

Movement

X-AXIS Movement: 1600 mm
Y-AXIS Movement: 750 mm
Z-AXIS Movement: 900 mm

Workpiece

Workpiece weight: 3000 kg

Table

Outer length: 1800 mm
Outer width: 700 mm
Number of tslots: 5
Distance between: 125 mm

Tools

Type of tool holder: ISO 50

Additional Equipment

- Tool and workpiece probes
- Set of tool holders

Additional Information

Machine Benefits

Technical Machine Benefits:
- - X,y,z axis feed rate mm/min 10000
- - Rapid feed rate mm/min 16000
- - Head manually adjustable
Qualitative Machine Benefits:
- - Very good condition
- - Low hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
