➤ Used Kitamura HX400I For sale | gindumac.com

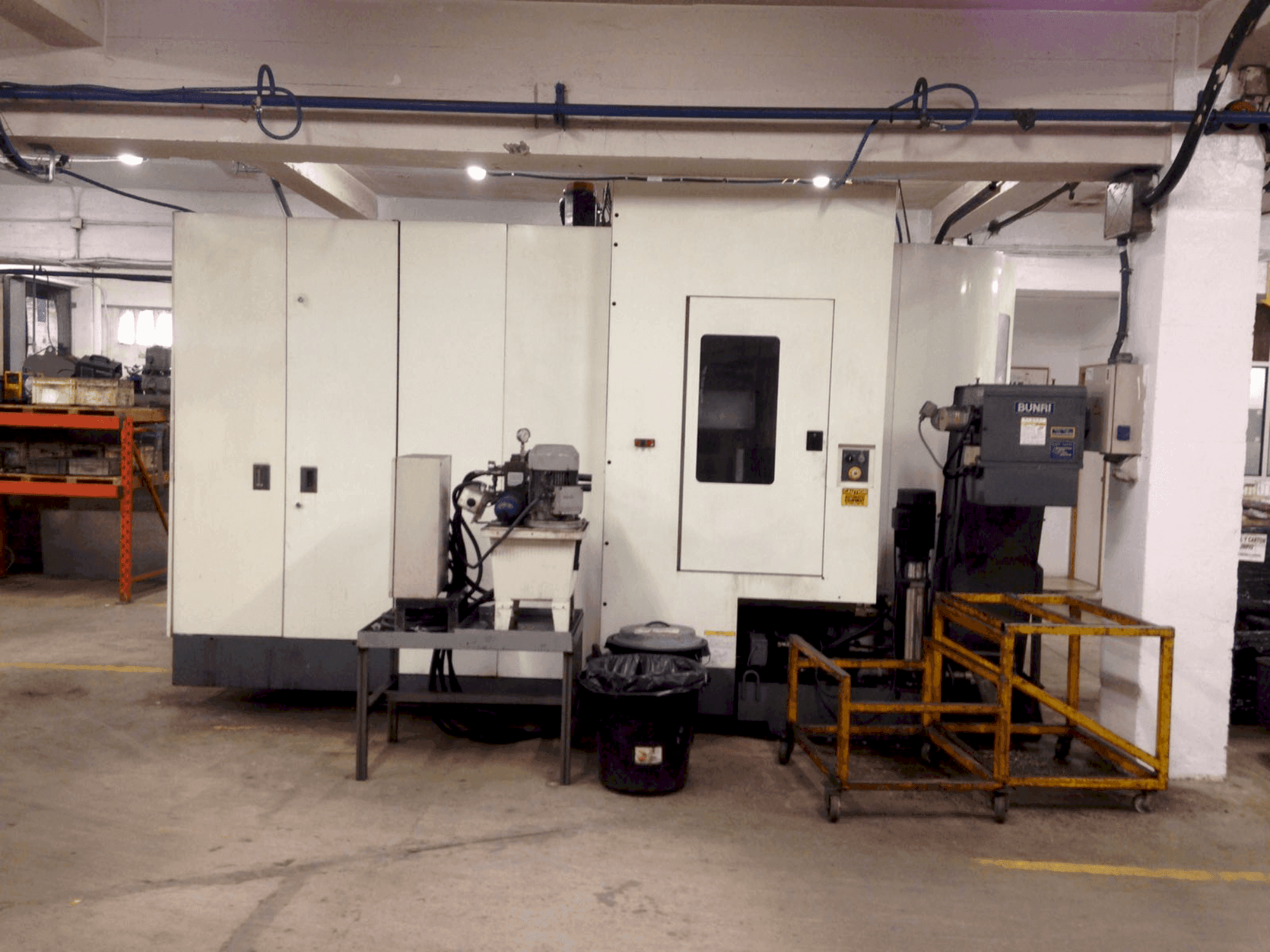

This 4-axis Kitamura HX400I horizontal machining center was manufactured in 2001. It features a table work area of 400 x 400 mm, a maximum work size of 610 x 960 mm, and a table load capacity of 400 kg. The machine includes a tool storage capacity of 50 tools with a random selection method. Ideal for complex machining tasks, the Kitamura HX400I machine we have for sale. Contact us for further details regarding this horizontal machining center.

Overview

brand: Kitamura
year: 2001
MODEL: HX400I
application type: Milling
Location: Spain
machine type: Horizontal Machining Centre
availability: Immediately

Technical Information - Kitamura HX400I

General Data

Machine weight: 16,000 KG

Main drive

Spindle speed range: 35-13,000 1/MIN
Tool taper: NST NO.40

Movement

X-AXIS Movement: 660 mm
X-AXIS Rapid traverse: 50 mm/min
Y-AXIS Movement: 610 mm
Z-AXIS Movement: 560 mm

Workpiece

Workpiece x: Max 610 mm
Workpiece y: Max 960 mm

Table

Outer length: 400 mm
Outer width: 400 mm
Min distance between vertical spindle and table: 50 mm
Max distance between vertical spindle and table: 660 mm
Table load: 400 kg

Tools

Slots in storage: 50
Max weight: 10 kg
Max tool diameter: 95 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table indexing 4th axis: 0. 001º
- - Distance from table center to spindle nose: 150 - 710 mm
- - Tool selection method random, tool identified at magazine
- - Max. Tool size: 95 mm x 360mm
- - High precision 4th axis indexing, large tool storage capacity.
- - Tool change time: 1 sec
Qualitative Machine Benefits:
- - Accommodates a variety of workpieces, precise positioning capabilities.

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
