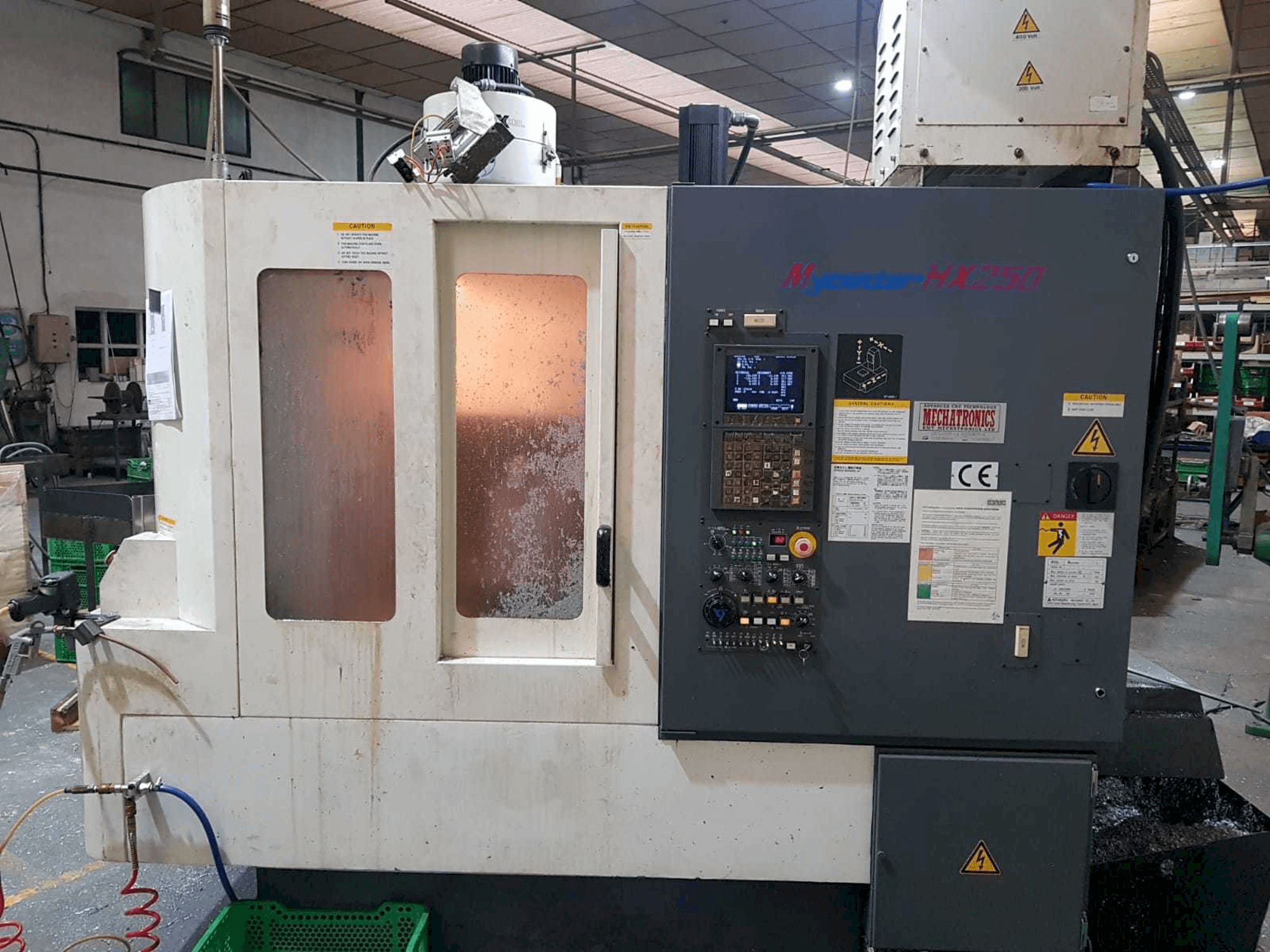

Kitamura Mycenter HX250 Horizontal Machining Center

This Kitamura Mycenter HX250 Horizontal Machining Center was manufactured in Japan in 1999. This 3 axis machine incorporates a table of 254 x 254 mm and a 8000 rpm spindle. In the past, it has mainly worked with steel in the production of machined components.

Overview

brand: Kitamura
year: 1999
MODEL: Mycenter HX250
application type: Milling
Location: Spain
machine type: Horizontal Machining Centre
availability: Sold

Technical Information - Kitamura Mycenter HX250

General Data

Measurements width: 2330 mm
Measurements depth: 2950 mm
Measurements height: 2470 mm
Machine weight: 4500 kg

Control Unit

Model: i80
CNC main language: English
CNC language customizable: Yes

Main drive

Number of spindles: 1
Spindle speed range: 8000 1/MIN

Movement

X-AXIS Movement: 305 mm
Y-AXIS Movement: 305 mm
Z-AXIS Movement: 330 mm
B-AXIS Movement: 0.001-360° MM

Workpiece

Workpiece drm: 350 mm
Workpiece z: 400 mm
Workpiece weight: 100 kg

Table

Outer length: 254 mm
Outer width: 254 mm

Tools

Slots in storage: 24
Max weight: 2 kg
Max tool diameter: 50 mm
Max tool length: 200 mm
Type of tool holder: BT30

Media

Main electronic connection: 380 V
Power consumption: 8 kVA

Additional Equipment

- Filtermist FX2000
- 2 x Pallets

Additional Information

Machine history

Material type: Steel
End product: Machined components

Machine Benefits

Technical Machine Benefits:
- - Compact footprint
Qualitative Machine Benefits:
- - Well maintained machine
- - Change of spindle synchronous belt
- - Change of screen to tft
- - Repair of front button panel
- - Repair and cleaning of ducts
- - Calibration and adjustment of tool magazine
- - Repair of leaks in the double pallet table

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
