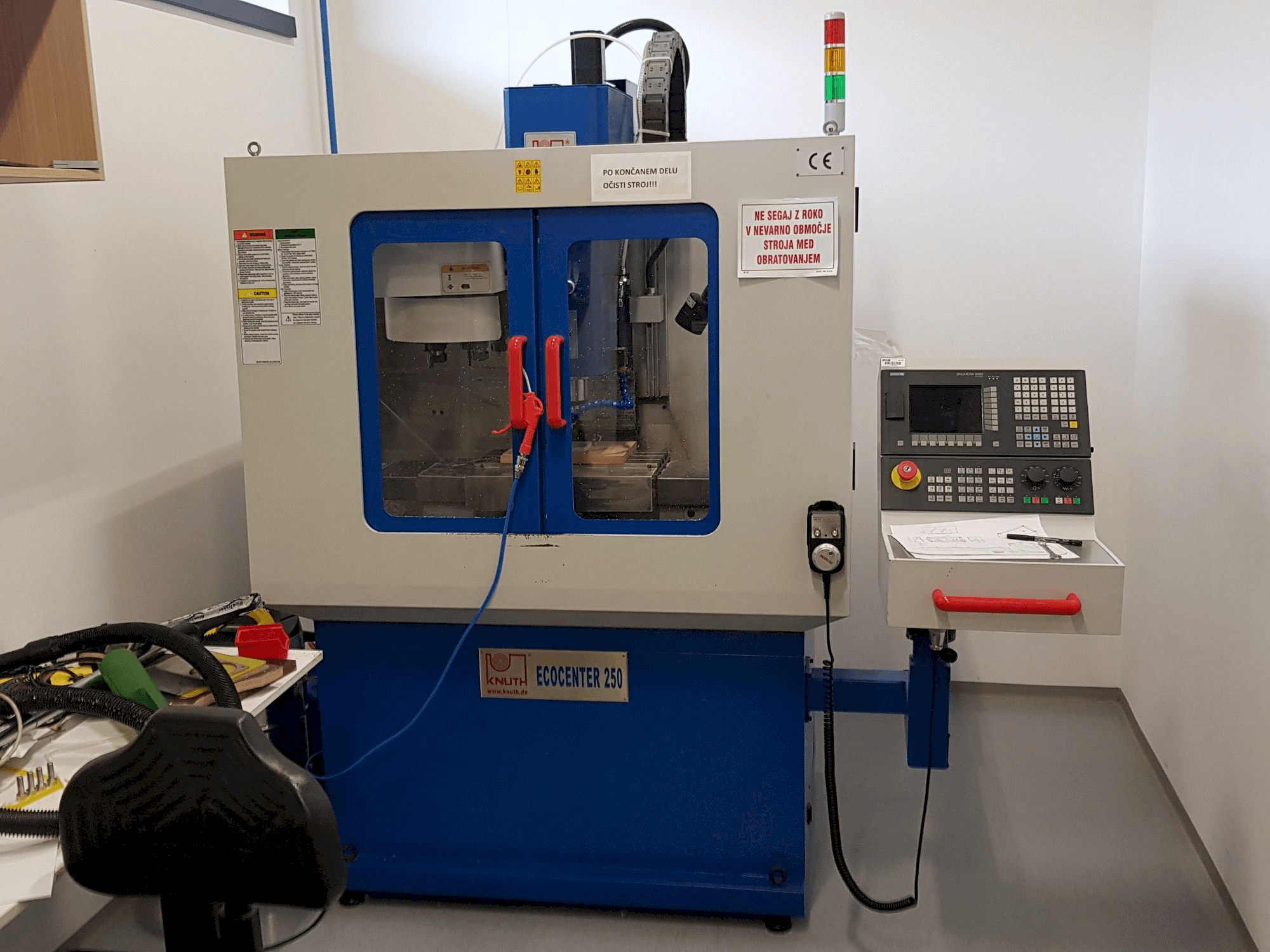

KNUTH EcoCenter 250 Milling Machine

This KNUTH EcoCenter 250 Milling Machine was manufactured in 2015 in Germany. Operated through a SIEMENS SINUMERIK 8080 D Control unit, this machine incorporates a wide speed range of 100-5000 rpm. It includes linear guides an preloaded ball screws with servo drives on all axes. It is completely equipped with an easy access enclosure and central lubrication system.

Overview

brand: KNUTH
year: 2015
MODEL: EcoCenter 250
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - KNUTH EcoCenter 250

General Data

Measurements width: 2250 mm
Measurements depth: 1300 mm
Measurements height: 2500 mm
Machine weight: 1440 kg

Control Unit

Model: 808 D
Brand: SIEMENS

Main drive

Spindle speed range: 100-5000 rpm 1/MIN

Movement

X-AXIS Movement: 250 mm
X-AXIS Working Feed: 4000 mm/min
Y-AXIS Movement: 200 mm
Y-AXIS Working Feed: 4000 mm/min
Z-AXIS Movement: 300 mm
Z-AXIS Working Feed: 4000 mm/min

Table

Outer length: 450 mm
Outer width: 180 mm
Number of tslots: 3
Distance between: 80-380 mm
Table load: 60 kg

Tools

Number of stations: 8
Max weight: 2.5 kg
Max tool diameter: 63 mm

Additional Equipment

- Some tools included
- Spry gun

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Only processed plastic and aluminium
- - Only worked for 3h/day
Qualitative Machine Benefits:
- - Excellent condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
