➤ Used KOVOSVIT MAS MCU 630V-5X For Sale | gindumac.com

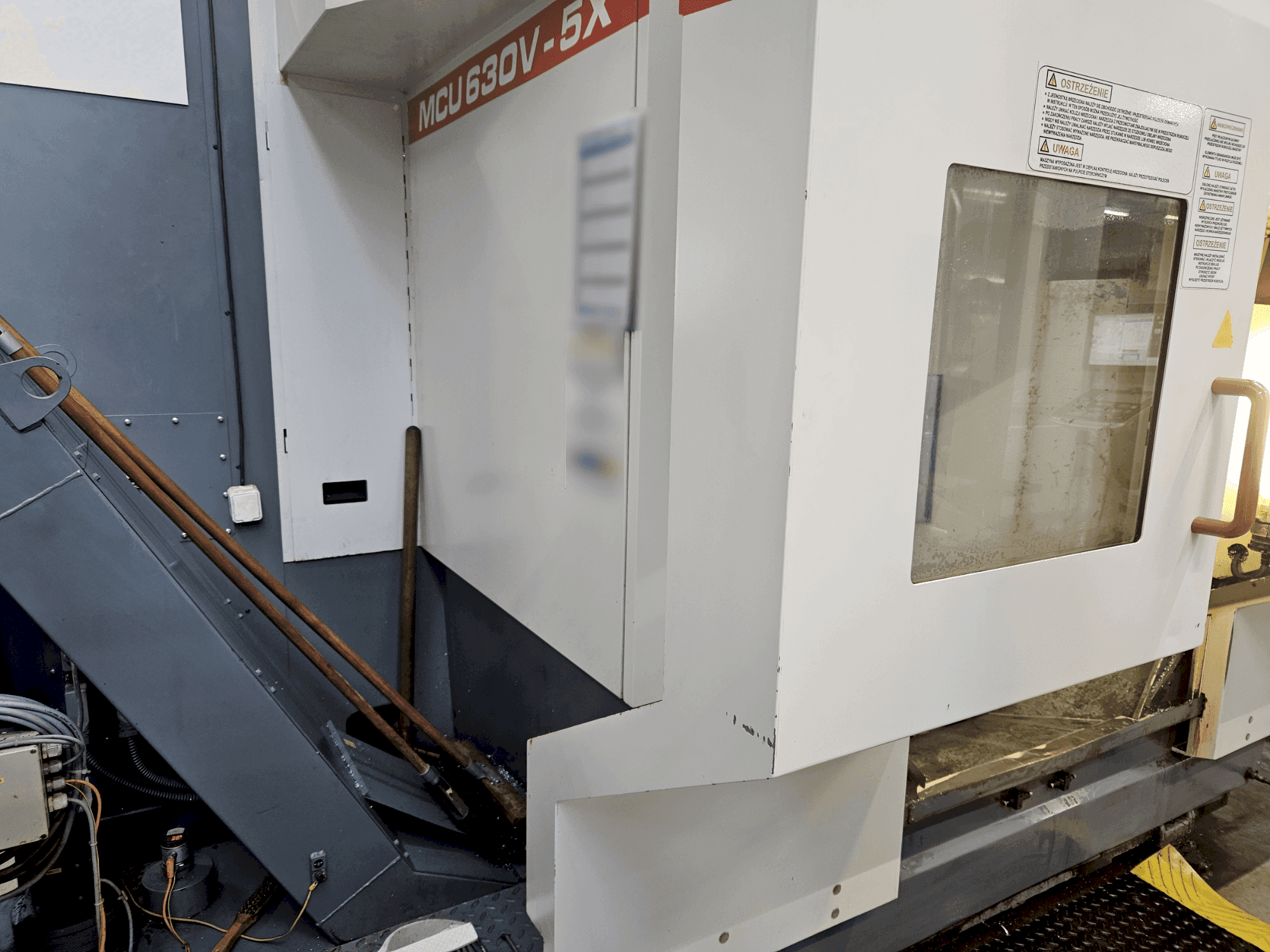

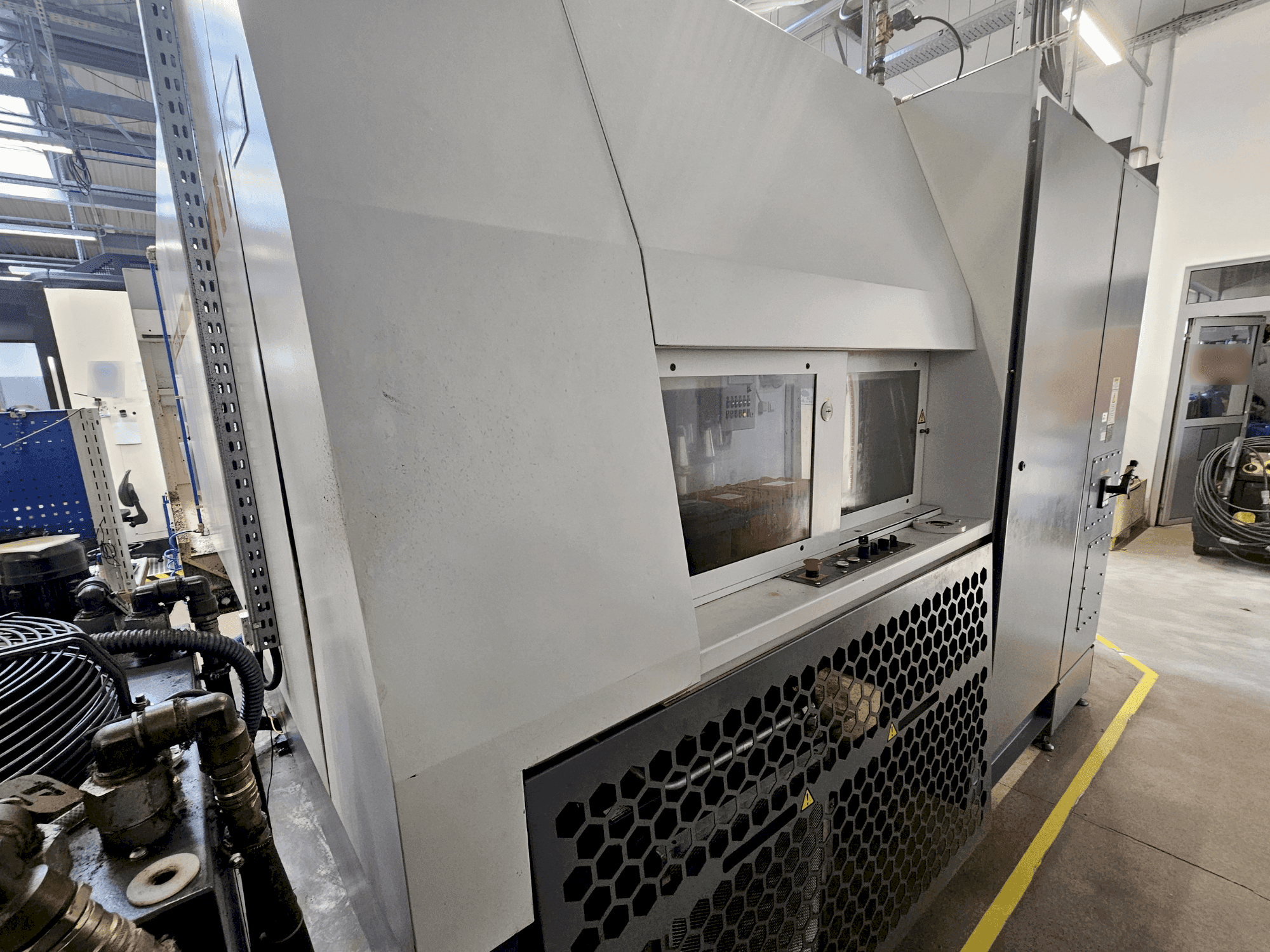

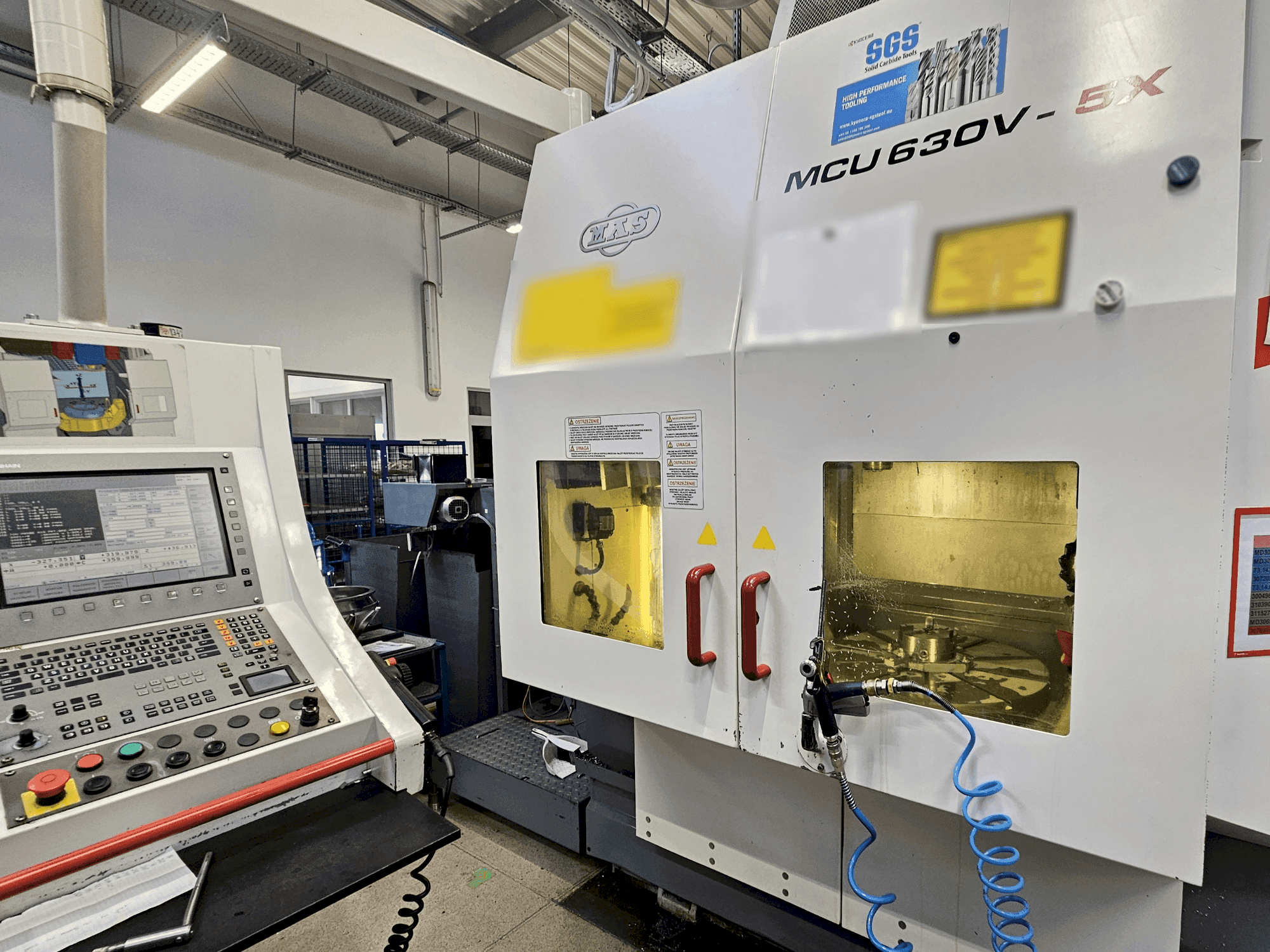

This 5-axis KOVOSVIT MAS MCU 630V-5X was manufactured in 2011. It features a HEIDENHAIN iTNC 530 control, a spindle speed of up to 12,000 min⁻¹, and a maximum torque of 157/215 Nm. The machine supports a table load of 850 kg and includes options like cooling through the spindle and a Probe OPM40. Ideal for complex machining tasks, the KOVOSVIT MAS MCU 630V-5X vertical machining centre we have for sale. For more information about this vertical machining centre, please reach out to us.

Overview

brand: KOVOSVIT MAS
year: 2011
MODEL: MCU 630V-5X
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Available From End Of 01 2025
control unit brand: HEIDENHAIN

Technical Information - KOVOSVIT MAS MCU 630V-5X

General Data

Measurements width: 3600 mm
Measurements depth: 4200 mm
Measurements height: 3600 mm
Machine weight: 18000 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 12000 min⁻¹ 1/MIN
Spindle motor power: 33 / 45 kW
Tool taper: ISO 40
Number of axis: 5

Movement

X-AXIS Movement: 700 MM
Y-AXIS Movement: 820 MM
Z-AXIS Movement: 550 MM

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rapid traverse x, y, z: 60 m/min
- - Acceleration x, y, z: 6. 5 m/s²
Qualitative Machine Benefits:
- - Perfect condition
- - Full documentation available including service history

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
