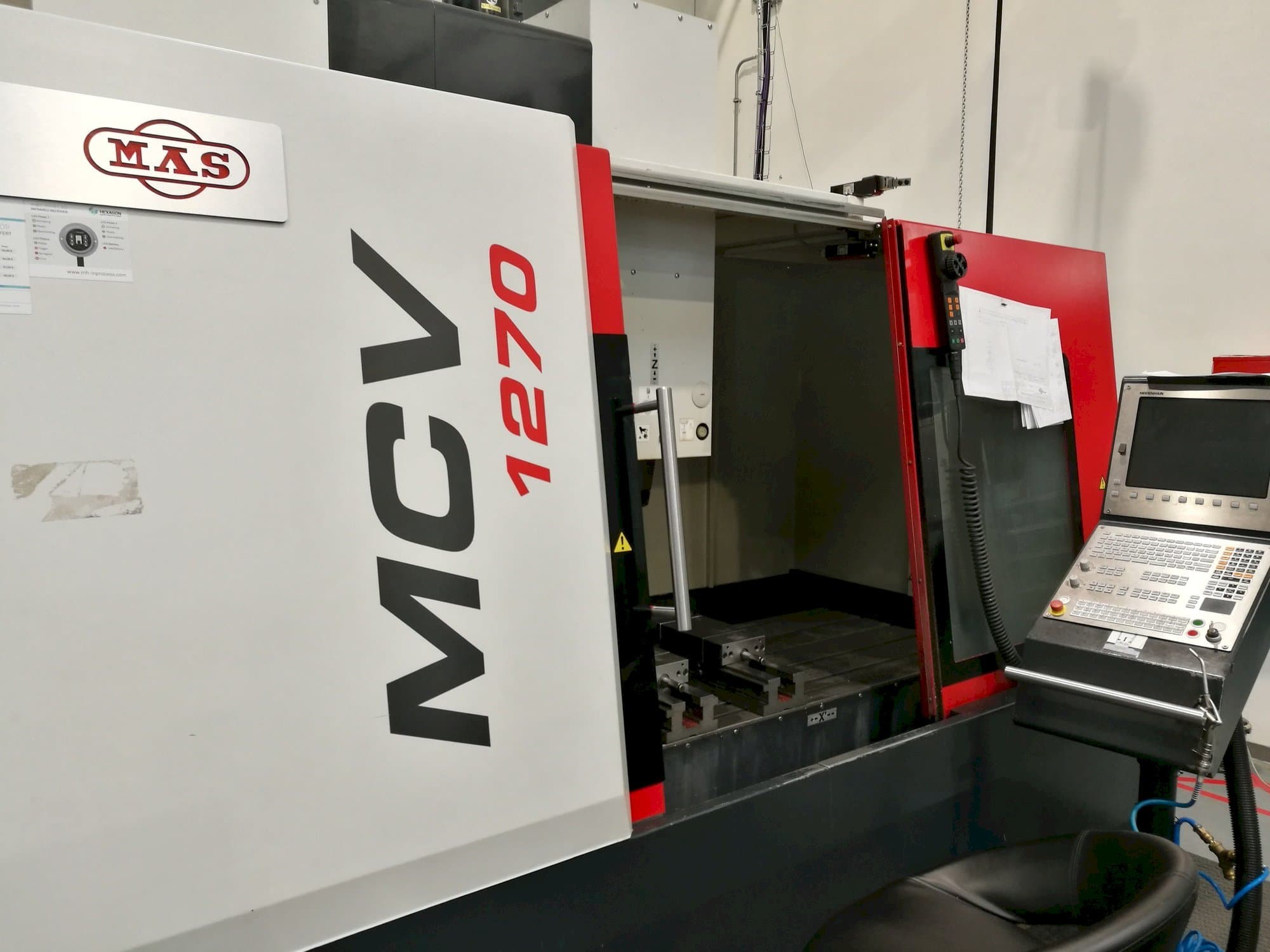

KOVOSVIT MAS MCV 1270 Milling Machine

This KOVOSVIT MAS MCV 1270 Milling Machine was manufactured in 2016 in the Czech Republic. It has a working record of only 5840 (1506 spindle) production hours. It is equipped with a HIEDENHAIN iTNC 530 HSCI control unit. This machine can work with a spindle speed range up to 8000 rpm, and incorporates a working table of 1500x670 mm. It includes a workpiece probe, and a tool probe. This KOVOSVIT MAS is like new.

Overview

brand: KOVOSVIT MAS
year: 2016
MODEL: MCV 1270
production hours: 5840
application type: Milling
Location: Slovakia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - KOVOSVIT MAS MCV 1270

General Data

Measurements width: 5000 mm
Measurements depth: 3600 mm
Measurements height: 3330 mm
Machine weight: 11800 kg

Control Unit

Model: iTNC 530 HSCI
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 8000 1/MIN

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 610 mm
Z-AXIS Movement: 720 mm

Workpiece

Workpiece weight: 1200 kg

Table

Outer length: 1500 mm
Outer width: 670 mm
TSlots size: 5
Distance between: 125 mm

Tools

Slots in storage: 40
Max weight: 15 kg
Max tool diameter: 125/175 mm
Max tool length: 400 mm
Type of tool holder: ISO 50

Additional Equipment

- Workpiece probe
- Tool probe

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle power (s1/s6 - 40%) 28 / 43 kw
- - Spindle torque (s1/s6 - 40%) 406 / 623 nm
- - Work feed x, y, z 40000 mm. Min-1
- - Rapid feed x, y, z 40 m. Min-1
- - Thermal compensation
- - Handwheel
- - Automatic lubrication of moving parts
- - Direct measuring system
- - Cooling aggregate for external cooling
Qualitative Machine Benefits:
- - Machine like new

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
