➤ Used KUNZMANN WF 610MC For Sale | gindumac.com

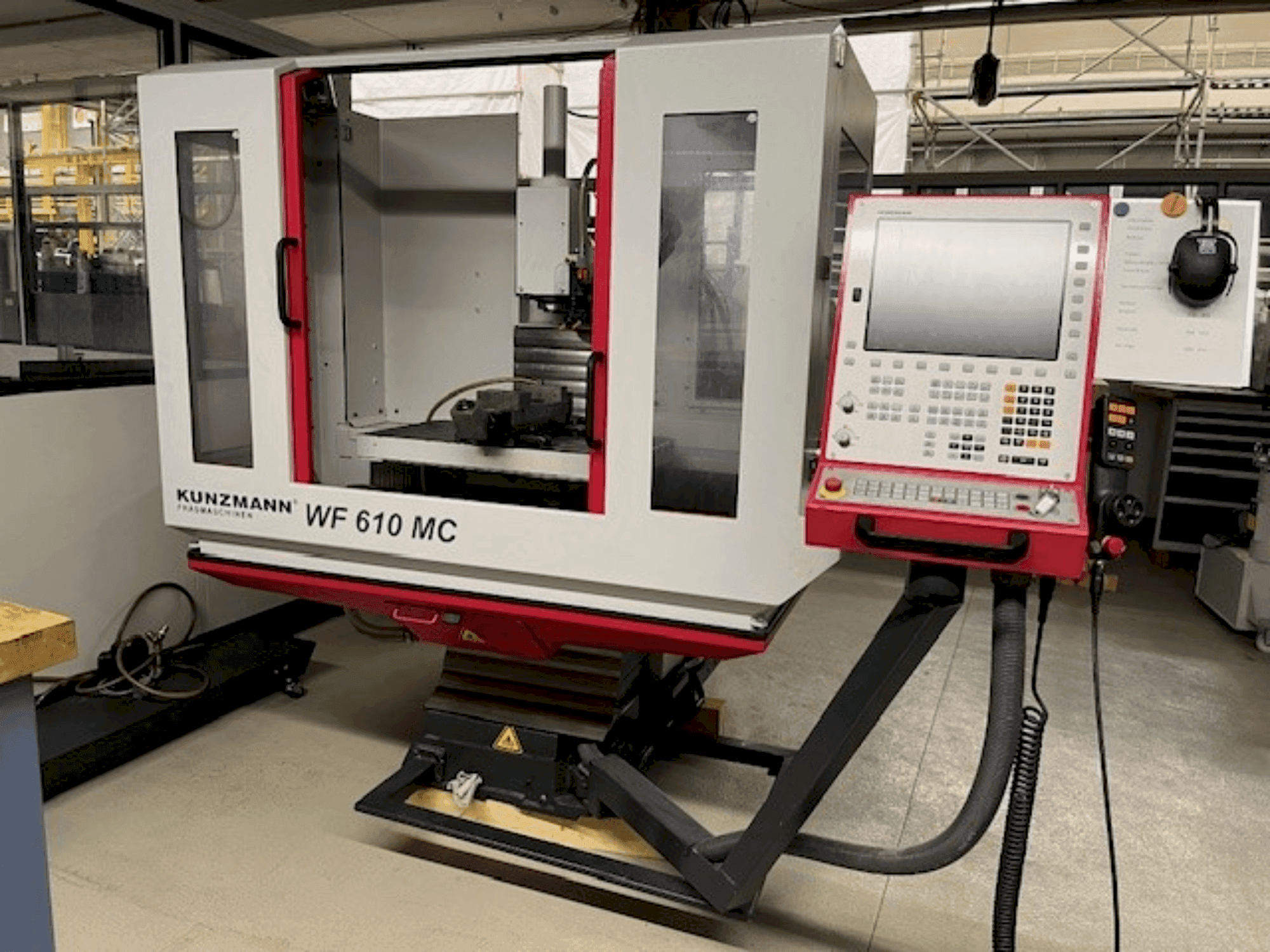

This 3-axis KUNZMANN WF 610MC was manufactured in 2016. A robust CNC milling machine featuring a working area of 610 x 400 x 450 mm, it offers both horizontal and vertical spindle operations with speeds up to 5000 min-1. Equipped with Heidenhain TNC 620 HSCI for precise control, rapid traverses reach up to 5000 mm/min in x and y, and 4000 mm/min in z. If you are looking to get high-quality milling capabilities consider the KUNZMANN WF 610MC machine we have for sale. Contact us for more information.

Overview

brand: KUNZMANN
year: 2016
MODEL: WF 610MC
application type: Milling
Location: Germany
machine type: CNC Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - KUNZMANN WF 610MC

Control Unit

Brand: HEIDENHAIN
Model: TNC 620 HSCI

Main drive

Stroke: 70 mm
Number of axis: 3

Movement

X-AXIS Rapid traverse: 5000 mm/min
Y-AXIS Rapid traverse: 5000 mm/min
Z-AXIS Rapid traverse: 4000 mm/min

Workpiece

Workpiece x: 610mm
Workpiece y: 400mm
Workpiece z: 450mm

Table

Table load: 2000 kg

Additional Equipment

- Chip Tray
- Safety Handwheels in all 3 Axes
- Automatic Central Lubrication
- Linear Measuring Systems
- Vertical Milling Head
- Swivelling: ± 90°

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Horizontal and vertical spindle: manual: 1-4500 min-1
- - Horizontal and vertical spindle: auto: 1-5000 min-1
- - Feed: 0-2000 mm/min
- - Levelling elements diameter: 114mm
- - Hours steering: 1386 / hours machine on: 444 / hours spindel: 107

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
