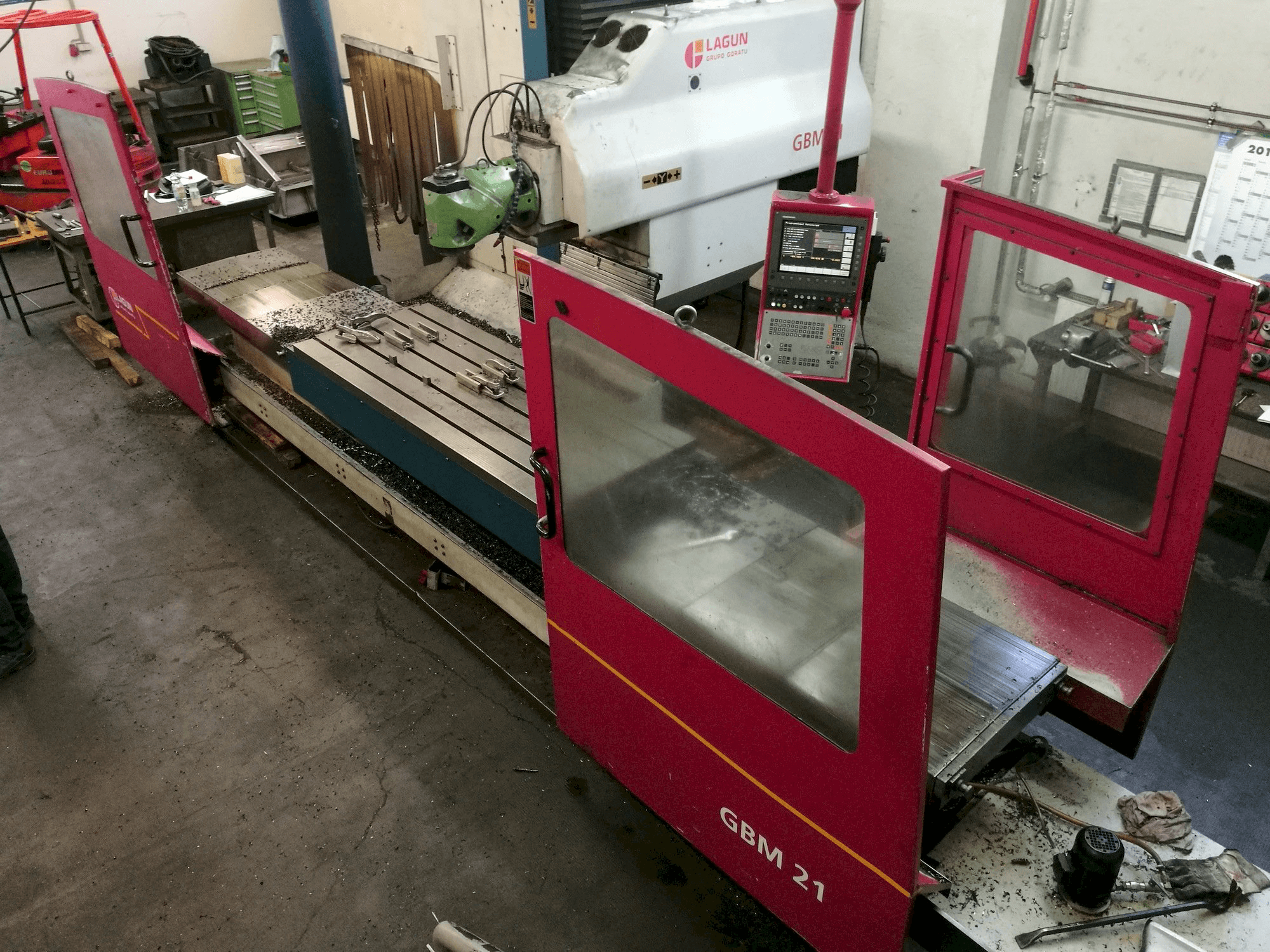

LAGUN GBM 21 Milling Machine

This LAGUN GBM 21 Milling Machine made in 2004 in Spain. It has a production history of 37517 working hours since then. It is operated through a Heidenhain ITNC 530 control unit. This machine counts with a spindle speed up to 3000 rpm. During the past, it has mainly worked for the automotive industry.

Overview

brand: LAGUN
year: 2004
MODEL: GBM 21
production hours: 37517
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - LAGUN GBM 21

General Data

Measurements width: 6434 mm
Measurements depth: 2804 mm
Measurements height: 3016 mm
Machine weight: 11200 kg

Control Unit

Model: ITNC 530
CNC main language: German
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Spindle speed range: 3000 rpm 1/MIN

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 1000 mm
Z-AXIS Movement: 1200 mm

Table

Outer length: 2100 mm
Outer width: 800 mm
TSlots size: 5
Distance between: 140 mm

Tools

Slots in storage: 20
Max weight: 15 kg
Max tool diameter: 200 mm
Max tool length: 300 mm
Type of tool holder: BT50

Media

Main electronic connection: 400 V
Power consumption: 35 kW
Internal cooling: Yes

Additional Equipment

- 30 x tool holders

Additional Information

Machine history

End product: Prototype
Industries: Automotive

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
