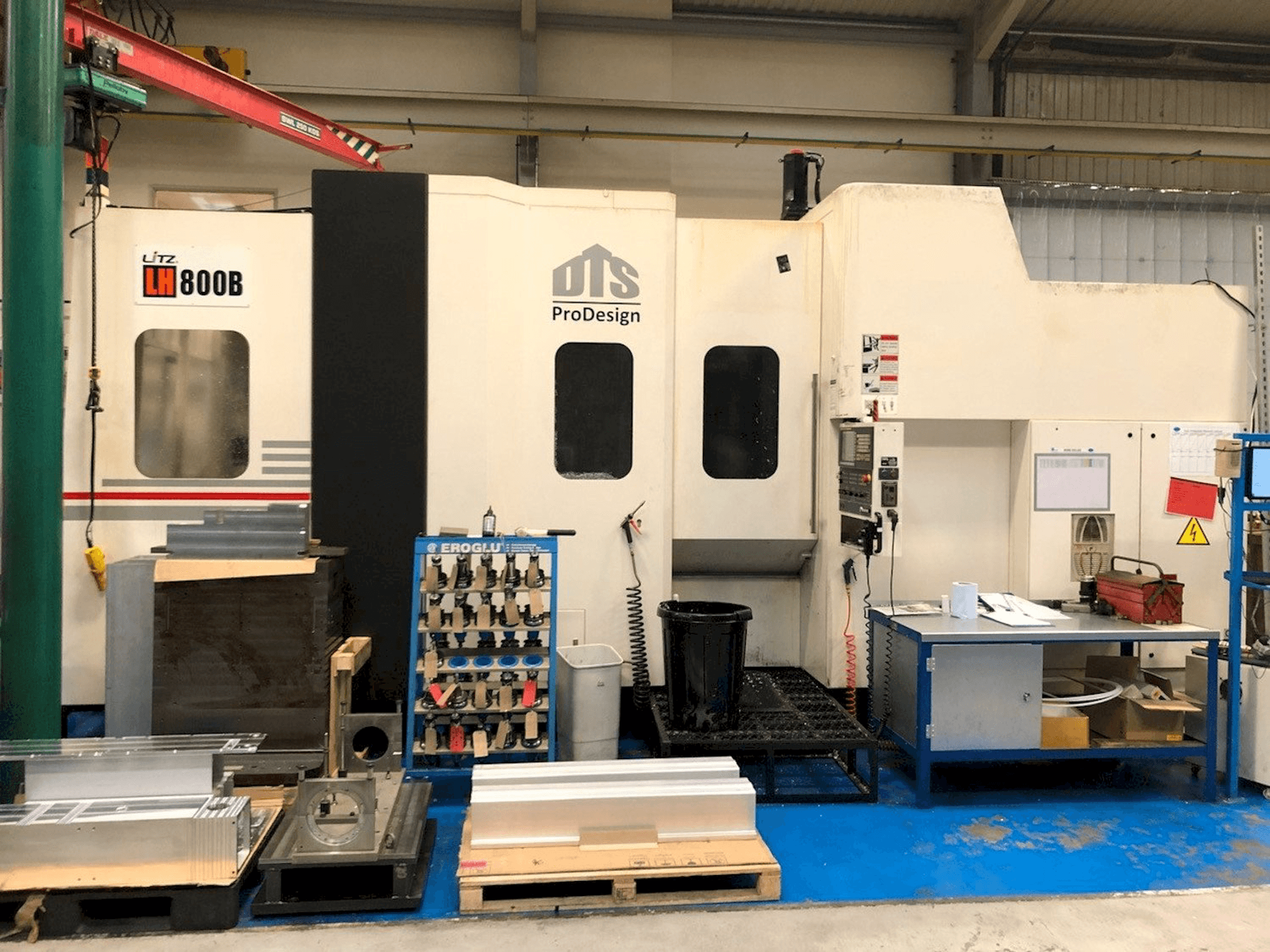

Litz LH-800B Horizontal Machining Center

This Litz LH-800B Horizontal Machining Center was built in Taiwan in the year 2013. It has 11159 cutting hours. It is operated through a FANUC Series 31i-MODEL B series control unit . This machine perform with a spindle speed up to 8000 rpm. It presents very good conditions.

Overview

brand: Litz
year: 2013
MODEL: LH-800B
production hours: 11159
application type: Milling
Location: United Kingdom
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Litz LH-800B

General Data

Measurements width: 6991 mm
Measurements depth: 4326 mm
Measurements height: 3948 mm
Machine weight: 28000 kg

Control Unit

Model: Series 31i-Model B
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 8000 1/MIN

Movement

X-AXIS Movement: 1300 mm
Y-AXIS Movement: 1200 mm
Z-AXIS Movement: 1200 mm

Table

Outer length: 800 mm
Outer width: 800 mm

Tools

Slots in storage: 60
Type of tool holder: BT 50

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Coolant through spindle
- - Swarf conveyor
- - Full b axis 0. 001 deg
- - No. Of pallets 2
- - Spindle motor power 22/26 kw
- - Spindle center to pallet 135 - 1335 mm
- - Spindle nose to pallet center 200 - 1400 mm
- - Rapid feedrates 32m/min
- - Linear scales
- - Laser tool measurement/breakage detector
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

Litz-specs.pdf
