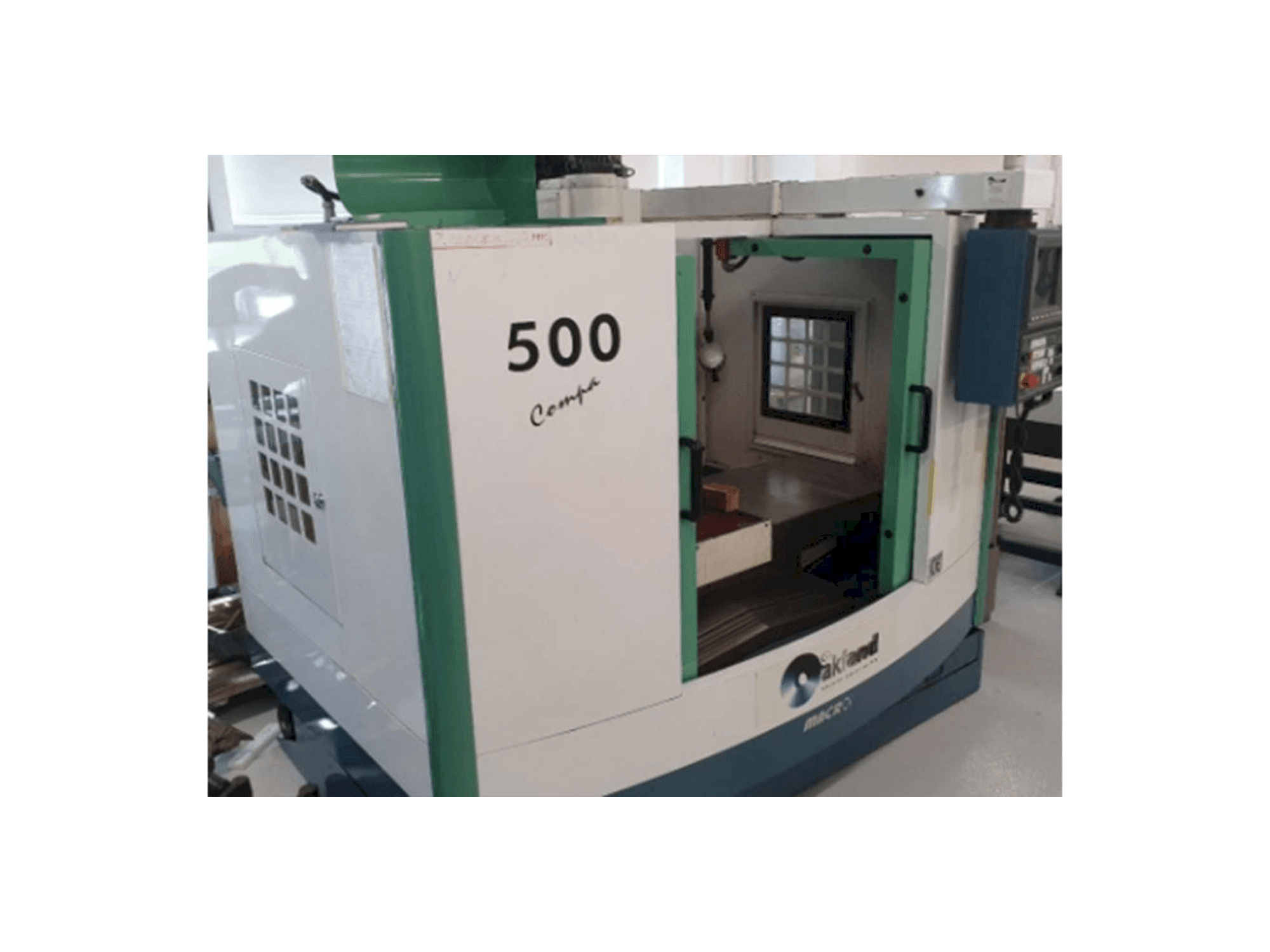

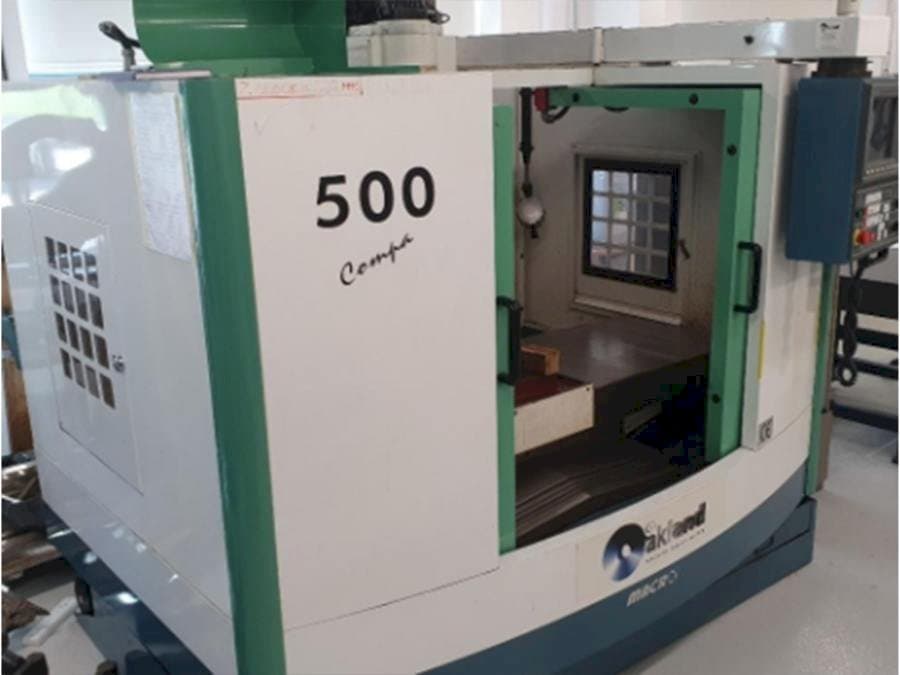

Macro Micro Tech Compac 500 Vertical Machining Center

This Macro Micro Tech Compac 500 Vertical Machining Center was built in Taiwan in the year 2003. It is equipped with a Fanuc Milling 2000 Series control unit. This machine can operate with a spindle speed up to 8000 rpm. The machine was brought and stays on place of University. Not used newer for a real work.

Overview

brand: Macro Micro Tech
year: 2003
MODEL: Compac 500
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Macro Micro Tech Compac 500

General Data

Measurements width: 2200 mm
Measurements depth: 2600 mm
Measurements height: 2150 mm
Machine weight: 4200 kg

Control Unit

Brand: FANUC

Main drive

Spindle speed range: 8000 1/MIN

Movement

X-AXIS Movement: 510 mm
X-AXIS Rapid traverse: 20 m/min
Y-AXIS Movement: 450 mm
Y-AXIS Rapid traverse: 20 m/min
Z-AXIS Movement: 460 mm
Z-AXIS Rapid traverse: 16 m/min

Table

Outer length: 780 mm
Outer width: 430 mm
Table load: 350 kg

Tools

Max weight: 6 kg
Max tool diameter: 80 mm
Max tool length: 250 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle nose to table: 130 - 590mm
- - Spindle taper: bt40
- - Spindle motor: 10hp
- - Feed rates - x,y,z 10 m/min
- - Atc 16 tool atc
- - Control: fanuc compatible itri. Mirl pc control – milling 2000 series
Qualitative Machine Benefits:
- - Machine was brought and stays on place of university. Not used newer for a real work.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
