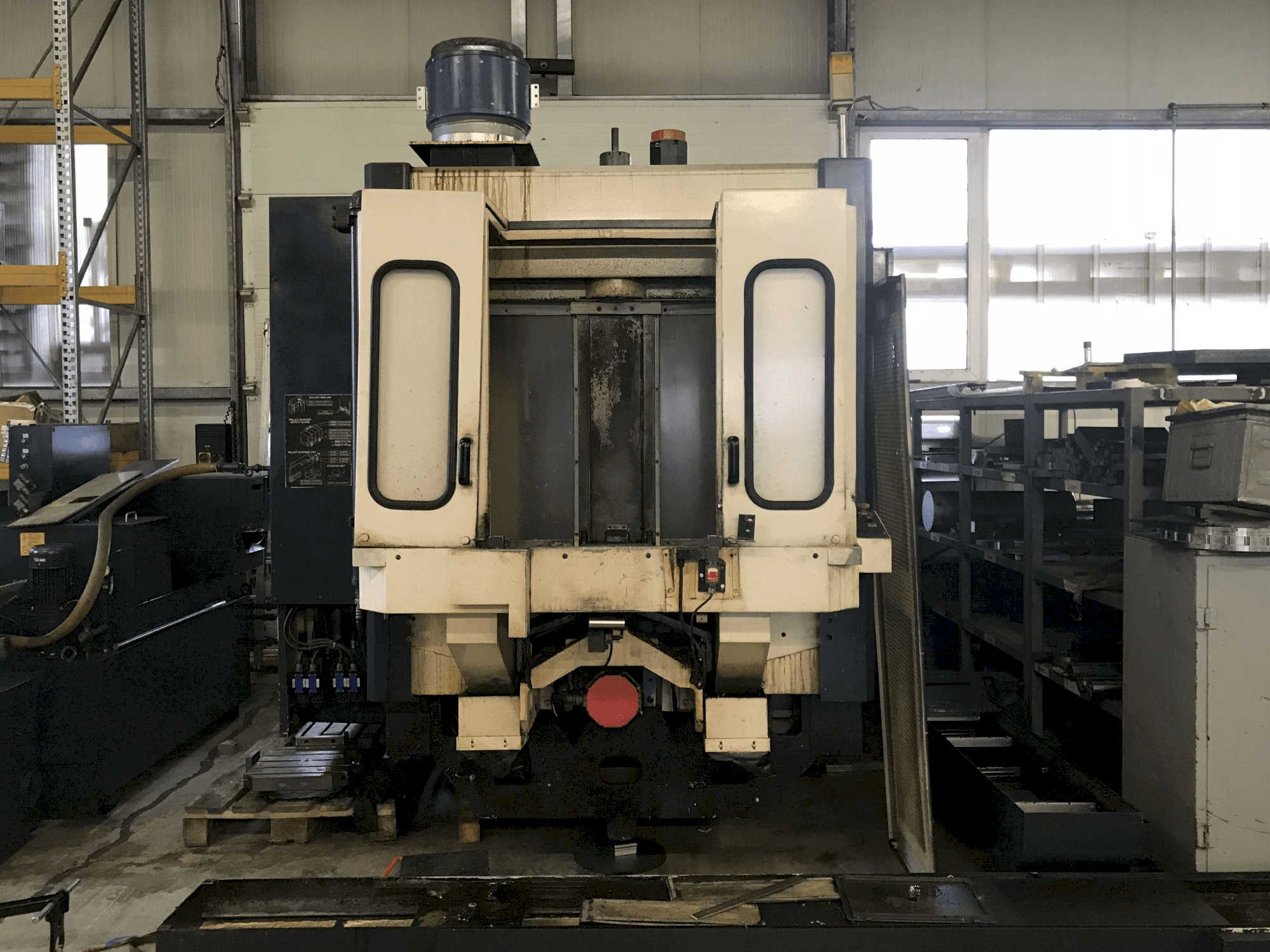

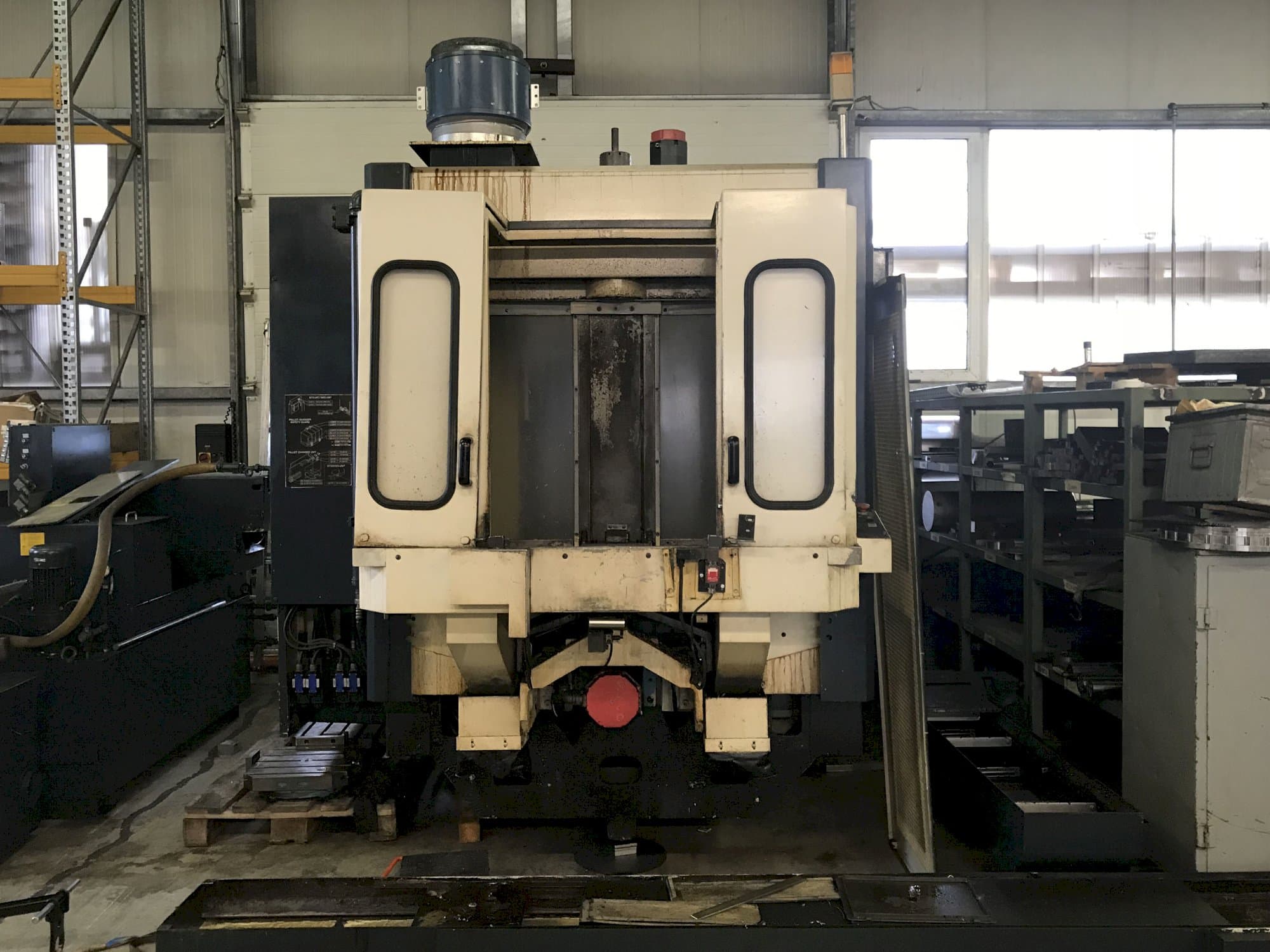

Makino A55-A40 Horizontal Machining Center

This Makino A55-A40 Horizontal Machining Center from 1996 was made in Japan and counts a production record of approximately 33000 hours. Equipped with a FANUC Pro3 Control unit, this versatile machine has mainly worked with steel and aluminum during the past. It stands out for its high spindle speed, which reaches up to 14000 rpm.

Overview

brand: Makino
year: 1996
MODEL: A55-A40
production hours: 33000
application type: Milling
Location: Austria
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Makino A55-A40

General Data

Measurements width: 6000 mm
Measurements depth: 3000 mm
Measurements height: 3000 mm
Machine weight: 10000 kg

Control Unit

Model: Pro3
CNC main language: German
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 14000 rpm 1/MIN

Movement

X-AXIS Movement: 560 mm
Y-AXIS Movement: 560 mm
Z-AXIS Movement: 600 mm

Workpiece

Workpiece weight: 400 kg

Table

Outer length: 400 mm
Outer width: 400 mm

Tools

Type of tool holder: SK40

Media

Main electronic connection: 400 V
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
