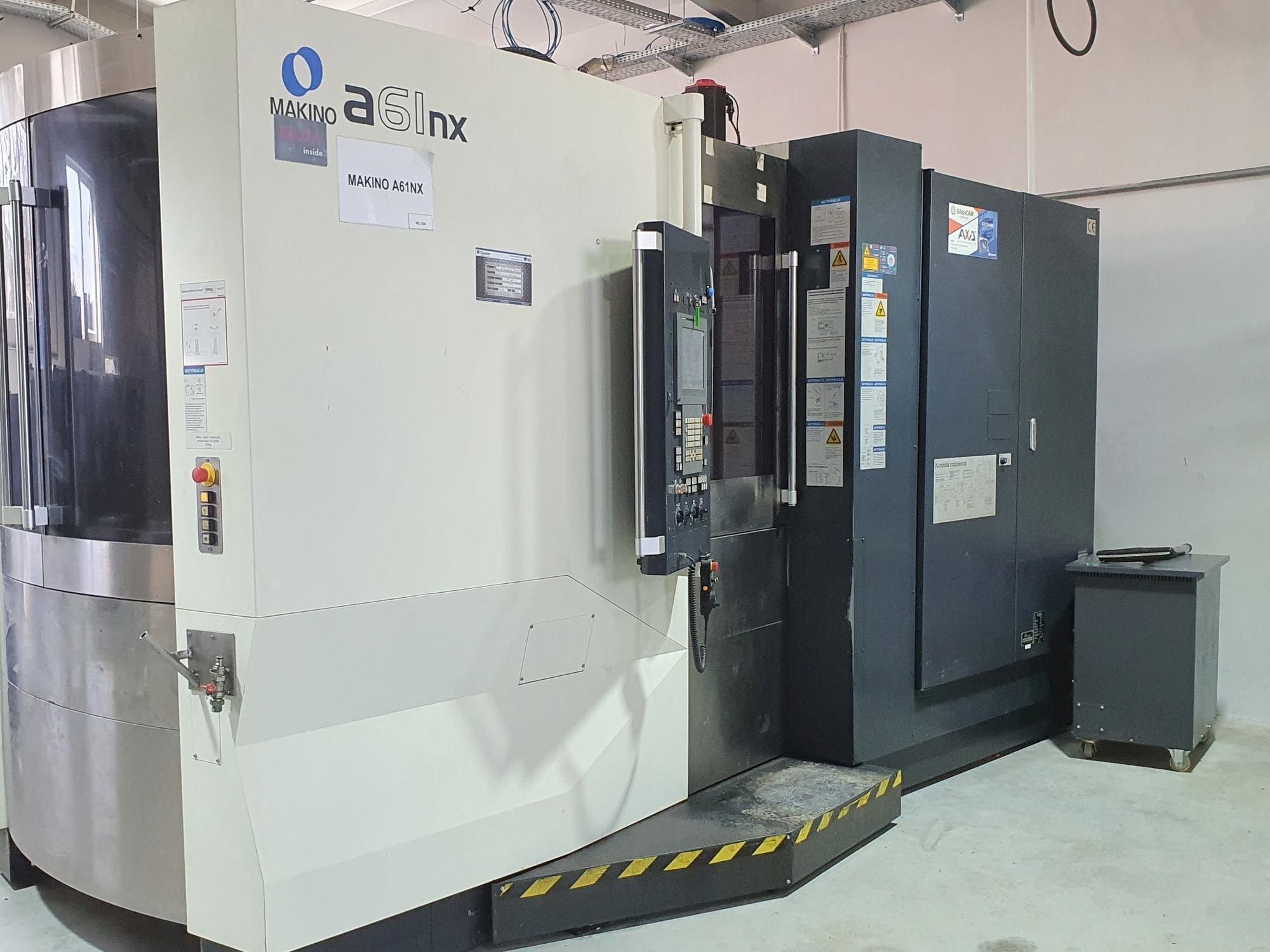

Makino a61nx horizontal machining center

This Makino a61nx horizontal machining center was manufactured in 2014. The 4 axis machine has 9800 power on hours. It is operated through a MAKINO Professional 5 control unit. It has a spindle speed up to 15000 rpm. The machine is in very good, working condition, available for presentation and tests. It was serviced always by MAKINO service. The full service documentation and manuals are available. The first installation of the machine was in 2015. There was a spindle replaced for a new one in 10/2017.

Overview

brand: Makino
year: 2014
MODEL: a61nx
production hours: 9800
application type: Milling
Location: Poland
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: MAKINO

Technical Information - Makino a61nx

General Data

Measurements width: 4890 mm
Measurements depth: 3340 mm
Measurements height: 2910 mm
Machine weight: 12000 kg

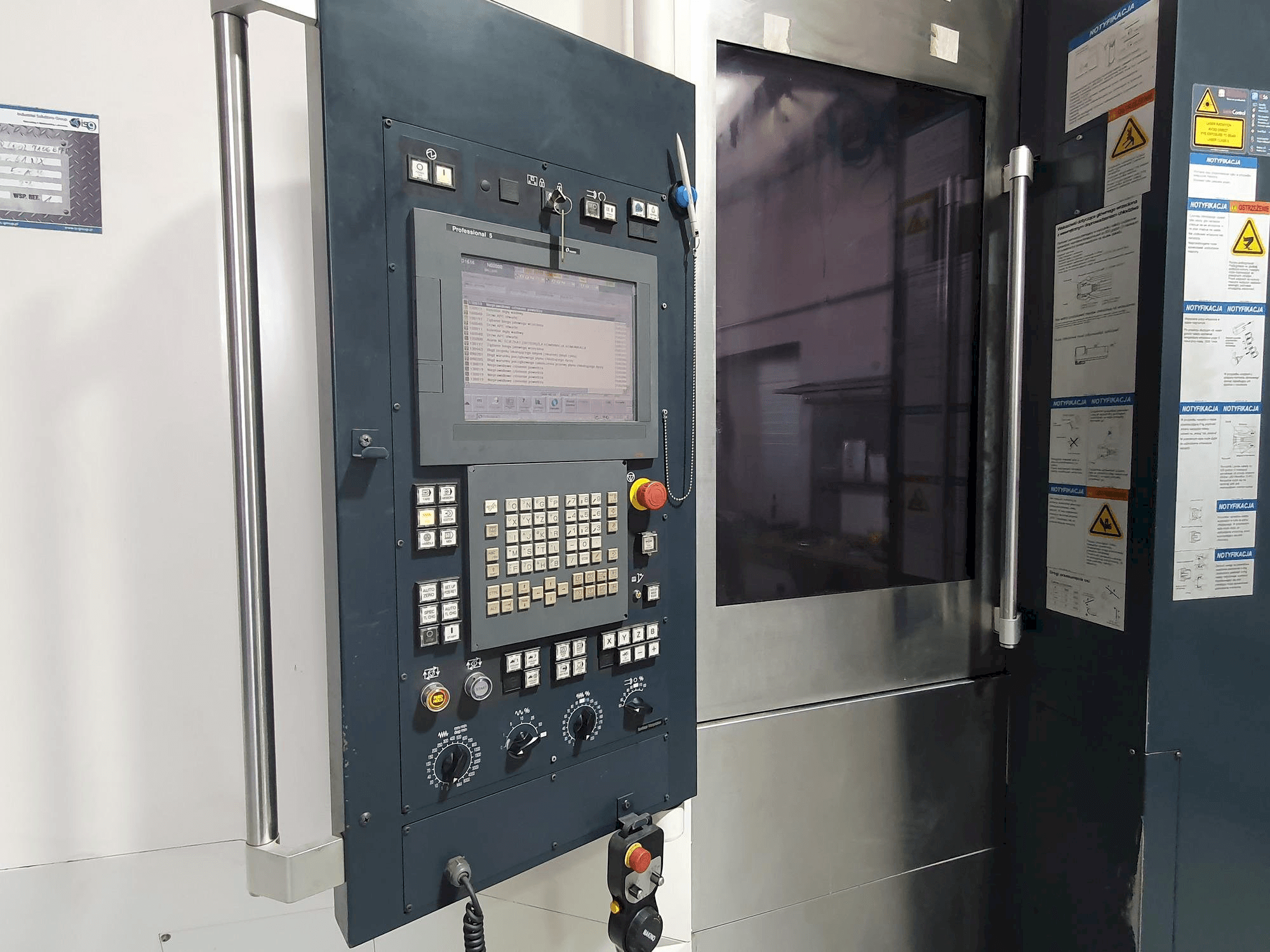

Control Unit

Model: Professional 5
Brand: MAKINO

Main drive

Spindle speed range: 15000 1/MIN
Spindle motor power: 22kW

Movement

X-AXIS Movement: 730 mm
Y-AXIS Movement: 650 mm
Z-AXIS Movement: 800 mm

Table

Outer length: 500 mm
Outer width: 500 mm
Table load: 500 kg

Tools

Max weight: 12 kg
Max tool diameter: 205 mm
Max tool length: 510 mm

Media

Main electronic connection: 400V / 50Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 2 pallet changer
- - B axis: 360 degree
- - Max work envelope: 800 x 1000 mm
- - Spindle torque: 120 n*m
- - Spindle core-cooling 30bar cts, air thru spindle, external coolant, shower coolant
- - Spindle tapper: hsk63a
- - Tool changer: 60+1 pcs
- - Tool change speed: 0. 8s
- - Lift up chip conveyor
- - Automatic grease supply unit
Qualitative Machine Benefits:
- - Blum probes
- - Mist collector interface with collector
- - Touch bts - tool check in the tool magazine
- - Air dryer
- - Tool load monitoring
- - Data server makino
- - 2mb nc memory
- - Fanuc tilted working plane g68. 2

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
