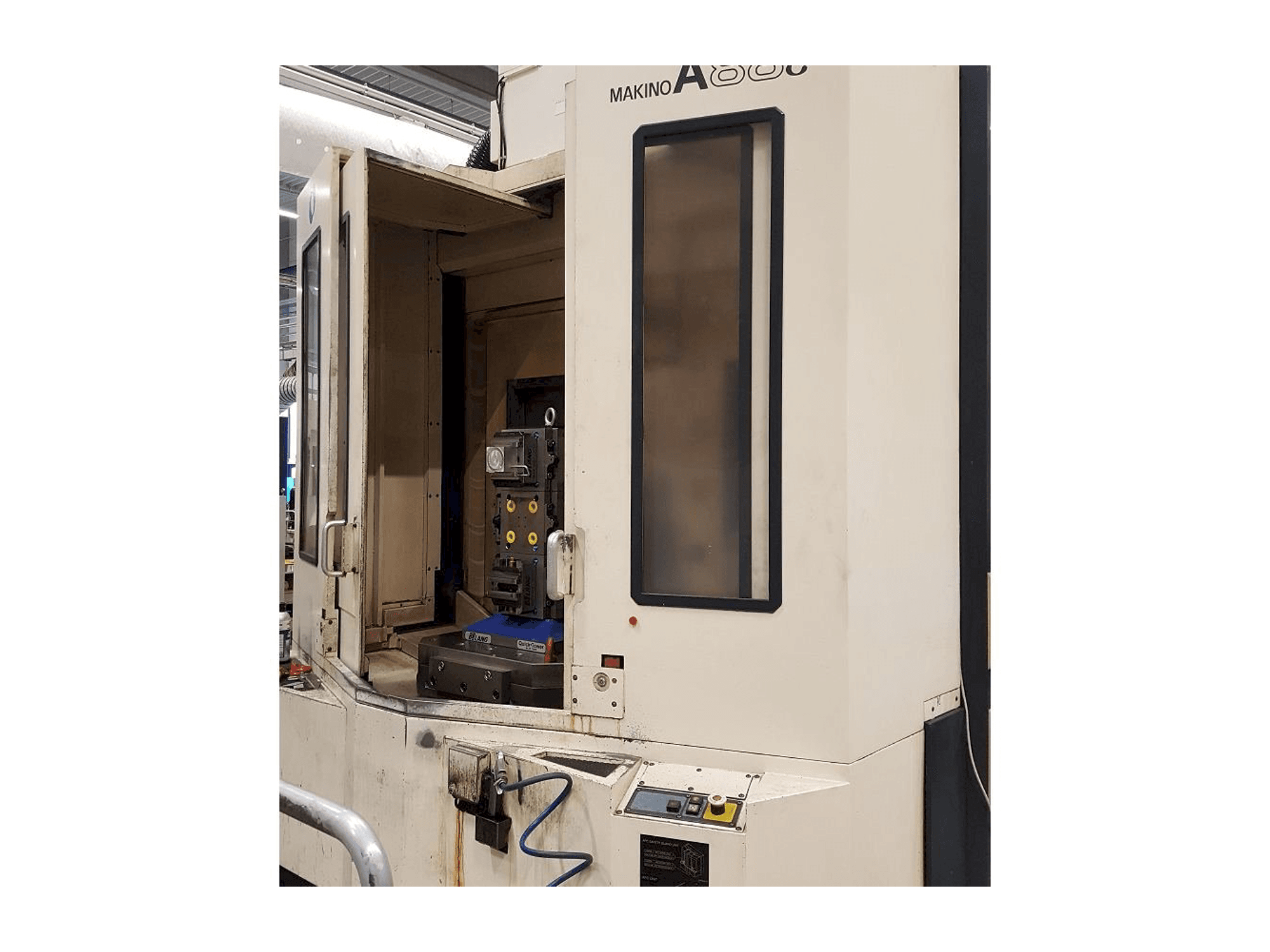

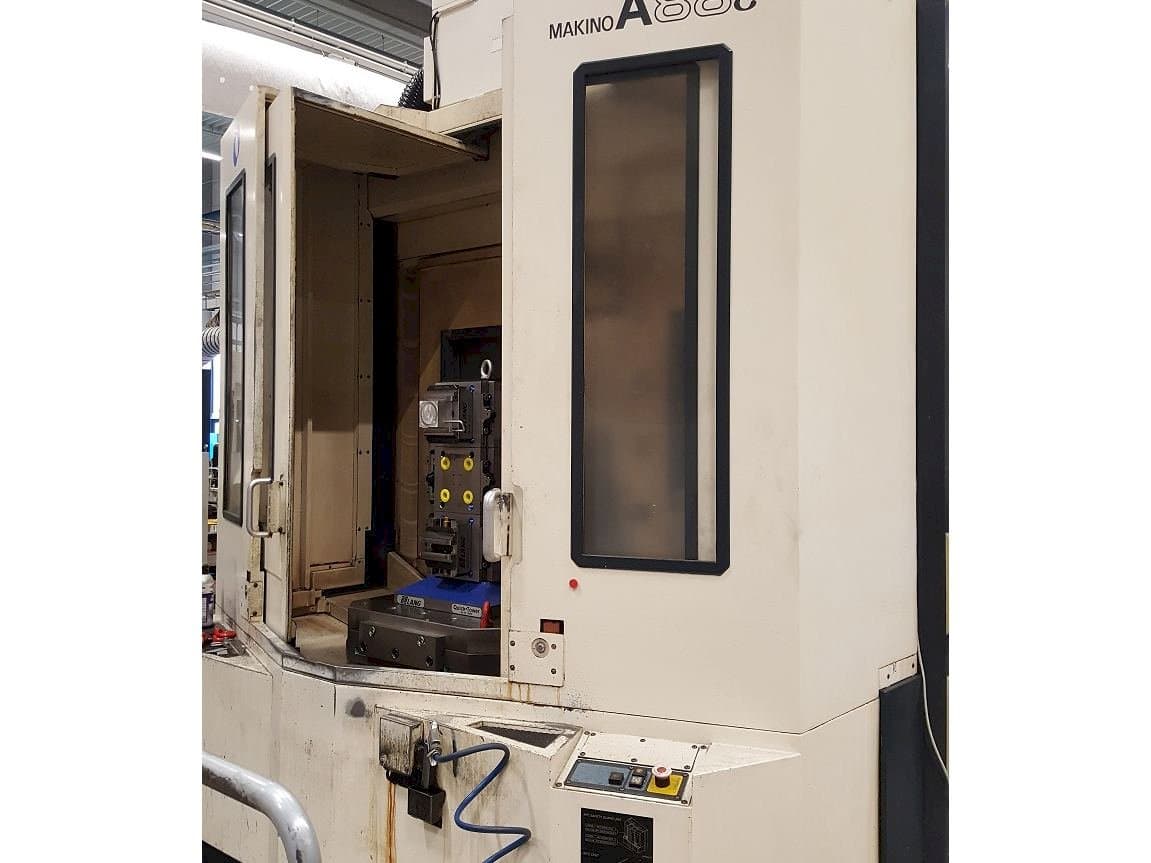

Makino A88E Horizontal Machining center

This Makino A88E Horizontal Machining center was manufactured in the year 2003 in Germany and has 45070 production hours, of which 2103 are spindle hours. It is equipped with a Makino Pro3 control unit and has 4 axis. The machine has a spindle speed of 20-12000 rpm.

Overview

brand: Makino
year: 2003
MODEL: A88E
production hours: 45070
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: MAKINO

Technical Information - Makino A88E

Control Unit

Model: Pro3
Brand: MAKINO

Main drive

Spindle speed range: 20 -12000 1/MIN
Tool taper: HSK-A100
Number of axis: 4

Movement

X-AXIS Movement: 900 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 970 mm

Table

Outer length: 630 mm
Outer width: 630 mm
Height adjustment: 1300 mm
Table load: 1200 kg

Tools

Slots in storage: 132
Max weight: 20 kg
Max tool diameter: 300 mm
Max tool length: 690 mm

Media

Main electronic connection: 400V / 50 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance from pallet top to spindle center 100 ~ 900 mm
- - Distance from pallet center to spindle end 70 ~ 1040 mm
- - Work size (diameter) 1000 mm
- - Pallet surface configuration 24 of m16 taps
- - (nc rotary table) 0. 001° , (nc rotary table) 2. 4 / 3. 4s (90°/180°)
- - Rapid traverse 50000 mm/min, cutting feedrates 1 ~ 50000 mm/min
- - Jog feedrates 1 ~ 4000 mm/min (23 steps)
- - Maximum tool moment 19. 6 n⋅m (29. 4 n⋅m) tool-to-tool changing time 1. 7s (20 kg) 3. 2s (30 kg) chip-to-chip changing time 4. 8s (20 kg) 6. 3s (30 kg)
- - Number of pallets 2 changing method 2 pallets simultaneously by turning arm changing time 17s

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
