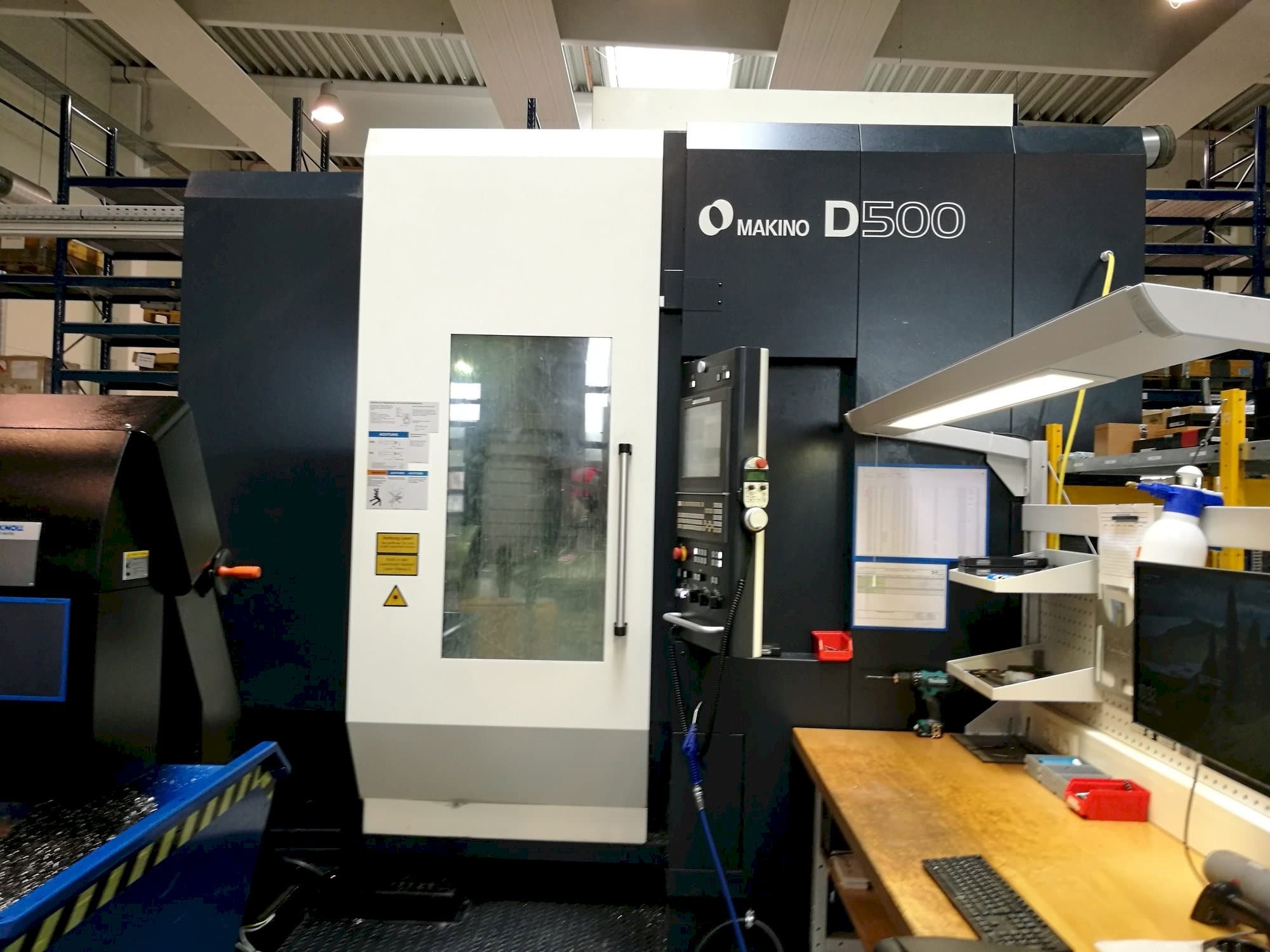

Makino D500 Horizontal Machining Center

This Makino D500 Horizontal Machining Center was built in 2016 in Japan. It has been working for 20213 hours. It is equipped with a Fanuc Pro6 control unit. This machine can operate with a spindle speed range up to 14000 rpm. It includes an internal cooling, an external chip conveyor, and a 70 bar high pressure device.

Overview

brand: Makino
year: 2016
MODEL: D500
production hours: 20213
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Makino D500

General Data

Measurements width: 3300 mm
Measurements depth: 2900 mm
Measurements height: 3400 mm
Machine weight: 17500 kg

Control Unit

Model: Pro6
CNC main language: German
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 14000 rpm 1/MIN

Movement

X-AXIS Movement: 550 mm
Y-AXIS Movement: 1000 mm
Z-AXIS Movement: 500 mm
A-AXIS Movement: 150 degree (plus 30/minus120) MM
C-AXIS Movement: 360 degree MM

Workpiece

Workpiece drm: 500 mm
Workpiece x: 650 mm
Workpiece y: 650 mm
Workpiece z: 500 mm
Workpiece weight: 350 kg

Table

Outer length: 500 mm
Outer width: 500 mm

Tools

Slots in storage: 80
Type of tool holder: HSK 63A

Media

Main electronic connection: 400 V
Power consumption: 58,5 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- External chip conveyor - Knoll
- 70bar high pressure device

Additional Information

Machine history

Material type: Exotic materials (nickle and titan based)
End product: Aerospace components
Industries: Aerospace industries

Machine Benefits

Technical Machine Benefits:
- - 5 axes simultan
- - High dynamic machine
- - Hpc
- - Through spindle coolant
- - Shower coolant sytem
Qualitative Machine Benefits:
- - Perfect conditions
- - Little working time
- - Fully serviced

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
