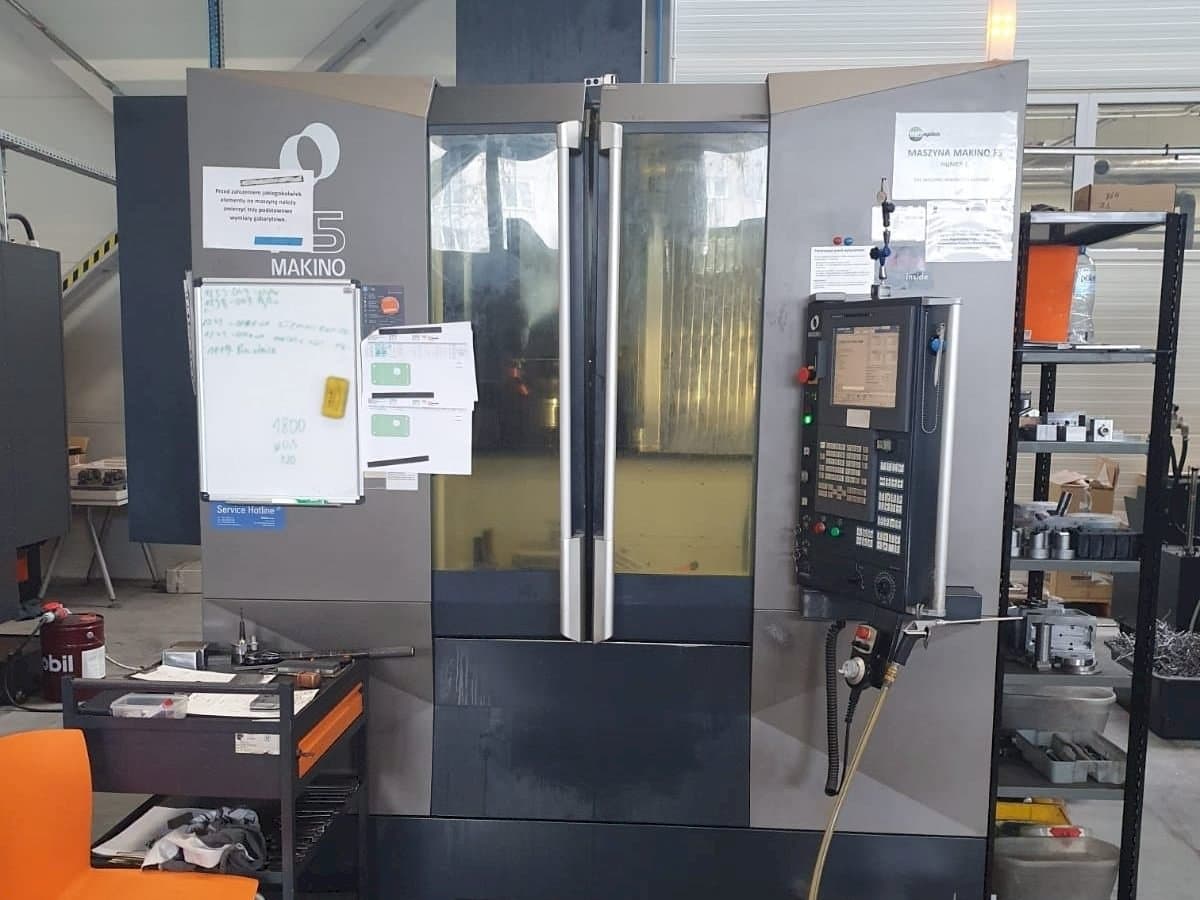

➤ Used Makino F5 Vertical Machining Center

This Makino F5 Vertical Machining Center from the year 2014 was built in Japan. It has a working record of 13016 production hours. Thise 3 axis machine, can work with a spindle speed range up to 20000 rpm. It is equipped with a Makino Professional 5 control unit. It includes several additional equipments.

Overview

brand: Makino
year: 2014
MODEL: F5
production hours: 13016
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: MAKINO

Technical Information - Makino F5

General Data

Measurements width: 2565 mm
Measurements depth: 2625 mm
Measurements height: 3065 mm
Machine weight: 7500 kg

Control Unit

Model: Professional 5
Brand: MAKINO

Main drive

Spindle speed range: 20000 1/MIN

Movement

X-AXIS Movement: 900 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 450 mm

Workpiece

Workpiece weight: 600 kg

Table

Outer length: 1000 mm
Outer width: 500 mm

Media

Main electronic connection: 380V / 50 Hz
Power consumption: kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- MEMORY 100 KB FOR 1000 PROGRAMS
- CONICAL/SPIRAL INTERPOLATION
- COOLING THROUGHT THE SPINDLE 3.0 Mph
- ENLARGED COOLANT TANK WITH LEVEL SENSOR - 625 LITERS, AT THE REAR OF THE MACHINE
- SPINDLE TAPER: HSK-A63
- WORKPLACE PROBE (BLUM TC50) WITH LASER SYSTEM (BLUM MicroCompact NT)
- ADDITIONAL BLOCK SKIP FUNCTION (MAX 9 BLOCKS)
- ATC WITH 30 POSITIONS FOR TOOLS MAX D=76MM, L=300

Additional Information

Machine history

Material type: Copper, steel
End product: Electrodes

Machine Benefits

Technical Machine Benefits:
- - 3 axis
- - The spindle is original, we have never replaced the spindle with any of the f5 machines. The spindle has no runout
- - null
Qualitative Machine Benefits:
- - Perfect condition, still in the production
- - null
- - null

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
