Makino - MC 100HR-MIL-MAK-1987-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Makino MC 100 Horizontal Machining Center

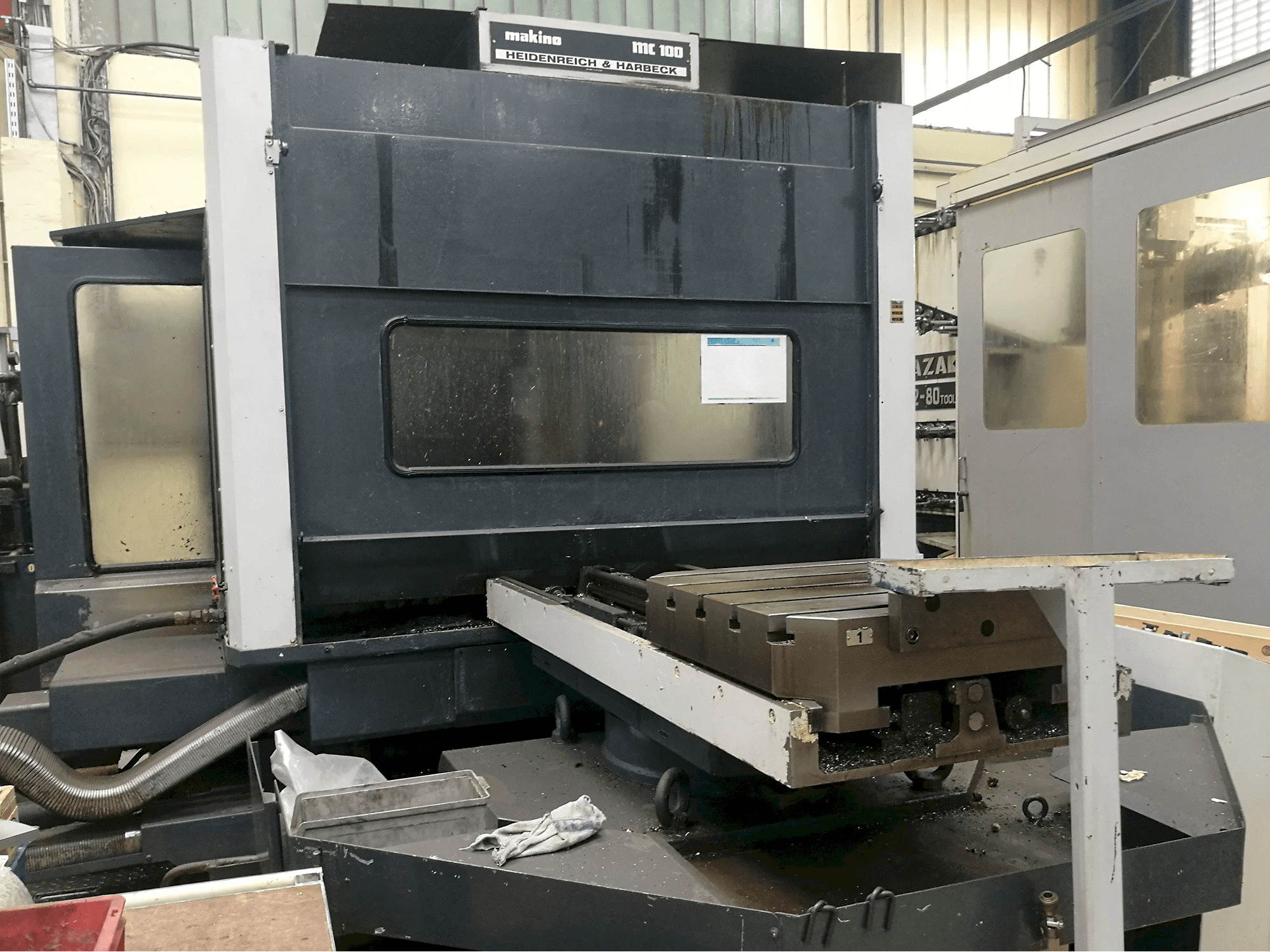

This Makino MC 100 Horizontal Machining Center was made in Germany in 1987 and counts with a production time of 62000 hours. Operated through a FANUC System 6M Control unit, this strong machine has mainly worked with steel and stainless steel during the past. It incorporates box guideways, an oil chiller and 2 pallets.
Overview
- brand: Makino
- year: 1987
- MODEL: MC 100
- production hours: 62000
- application type: Milling
- Location: Croatia
- machine type: Horizontal Machining Centre
- availability: Sold
- control unit brand: FANUC
Technical Information - Makino MC 100
General Data
- Measurements width: 4900 mm
- Measurements depth: 6800 mm
- Measurements height: 2650 mm
- Machine weight: 11000 kg
Control Unit
- Brand: FANUC
- Model: System 6M
- CNC main language: English
- CNC language customizable: Yes
Main drive
- Number of spindles: 1
- Spindle speed range: 4000 rpm 1/MIN
Movement
- X-AXIS Movement: 980 mm
- Y-AXIS Movement: 800 mm
- Z-AXIS Movement: 620 mm
Table
- Outer length: 630 mm
- Outer width: 630 mm
- Number of tslots: 5
- Distance between: 125 mm
Tools
- Slots in storage: 60
- Type of tool holder: SK50
Media
- Main electronic connection: 380 V
- Power consumption: 15 kVA
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Equipment
- - oil chiller
- - 2 pallets (630x630mm)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
