Makino - U6 H.E.A.T.PL-EDM-MAK-2015-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

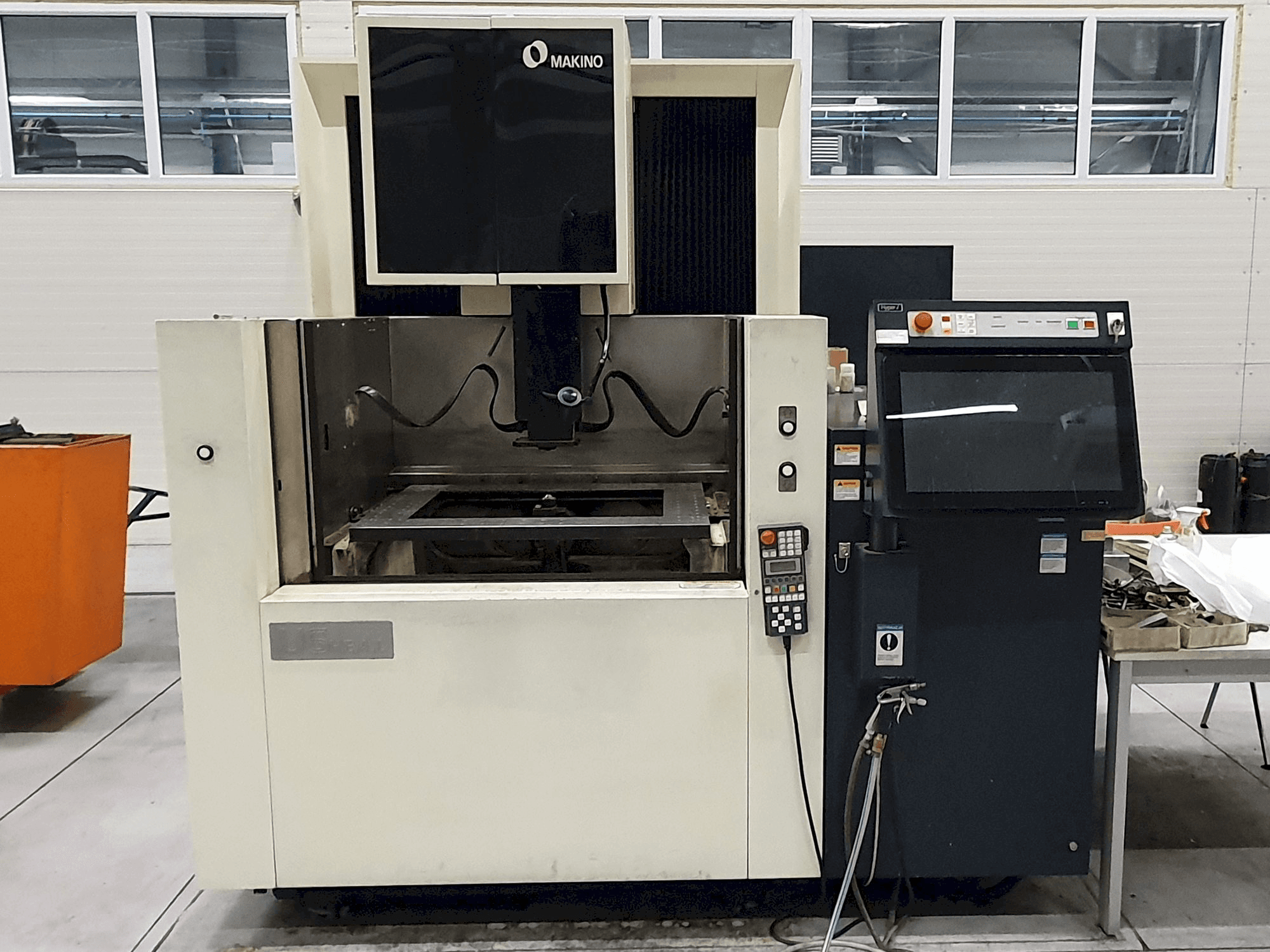

Makino U6 H.E.A.T. Erosion Machine

This Makino U6 H.E.A.T. Erosion Machine was manufactured in 2015. It operates through a Makino Hyper-i control unit. Its Dielectric Fluid Tank Capacity is of 1000 liters. The machine is in very good working condition. It was always serviced by Makino factory service. All tests and inspection are possible on a request but an operator and some tools are necessary.

Overview

brand: Makino
year: 2015
MODEL: U6 H.E.A.T.
application type: EDM
Location: Poland
machine type: Die-Sinking EDM Machine
availability: Sold
control unit brand: MAKINO

Technical Information - Makino U6 H.E.A.T.

General Data

Measurements width: 2229 mm
Measurements depth: 3151 mm
Measurements height: 2350 mm
Machine weight: 5300 kg

Control Unit

Model: Hyper-i
Brand: MAKINO

Movement

X-AXIS Movement: 650 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 420 mm
U/V Movement: 75 mm

Workpiece

Workpiece weight: 1500 kg

Table

Outer length: 910 mm
Outer width: 710 mm

Media

Main electronic connection: 400V / 50 Hz

Additional Equipment

- Portable Multifunction Control Panel FPB2

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Workpiece size: (w x d x h): 1000 x 800 x 400 mm
- - Tank size: 1. 070 mm x 880 m
- - Height to table surface: 1000 mm
- - Dielectric fluid tank capacity: 1000 liters
- - Full hd multi-touch screen
- - Dielectric fluid cooling unit
- - Power supply line filter
- - Program storage 40gb
Qualitative Machine Benefits:
- - Machine in very good working condition
- - It was always serviced by makino factory service
- - The machine comes from a bankrupt company
- - All tests and inspection possible on a request but an operator and some tools are necessary.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
