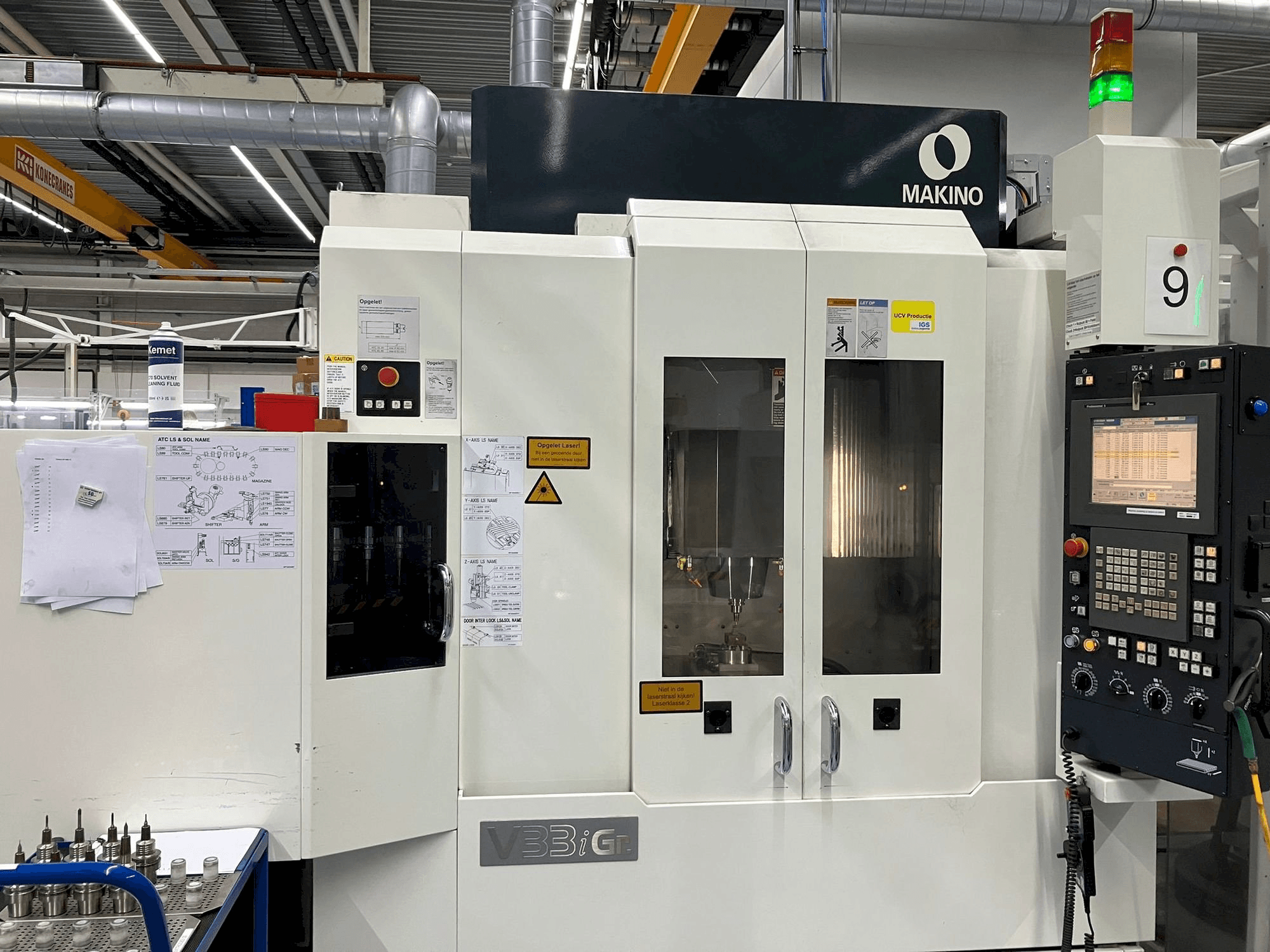

Makino V33i Graphite Vertical Machining Center

This Makino V33i Graphite Vertical Machining Center was made in the year 2014 in Germany. It is equipped with a Professional 6 control unit and has 3 axis. The machine has a spindle speed of 20000 rpm.

Overview

brand: Makino
year: 2014
MODEL: V33i Graphite
application type: Milling
Location: Netherlands
machine type: Vertical Machining Centre
availability: Sold
control unit brand: MAKINO

Technical Information - Makino V33i Graphite

Control Unit

Model: Professional 6
Brand: MAKINO

Main drive

Spindle speed range: 20000 1/MIN
Tool taper: CAT40 (HSK-A63, HSK-F63 & HSK-E32)
Number of axis: 3

Movement

X-AXIS Movement: 650 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 350 mm

Table

Outer length: 750 mm
Outer width: 450 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rapid traverse 20,000 mm/min
- - Cutting feedrate 10,000 mm/min
- - Maximum workpiece 750 x 635 x 250 mm
- - Maximum payload 300 kg
- - Atc capacity 25 (40, 60)
- - Tool to tool 4. 8 secs
- - Maximum tool diameter 80 mm
- - Maximum tool weight 7 kg
- - Optional atc capacity: yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
