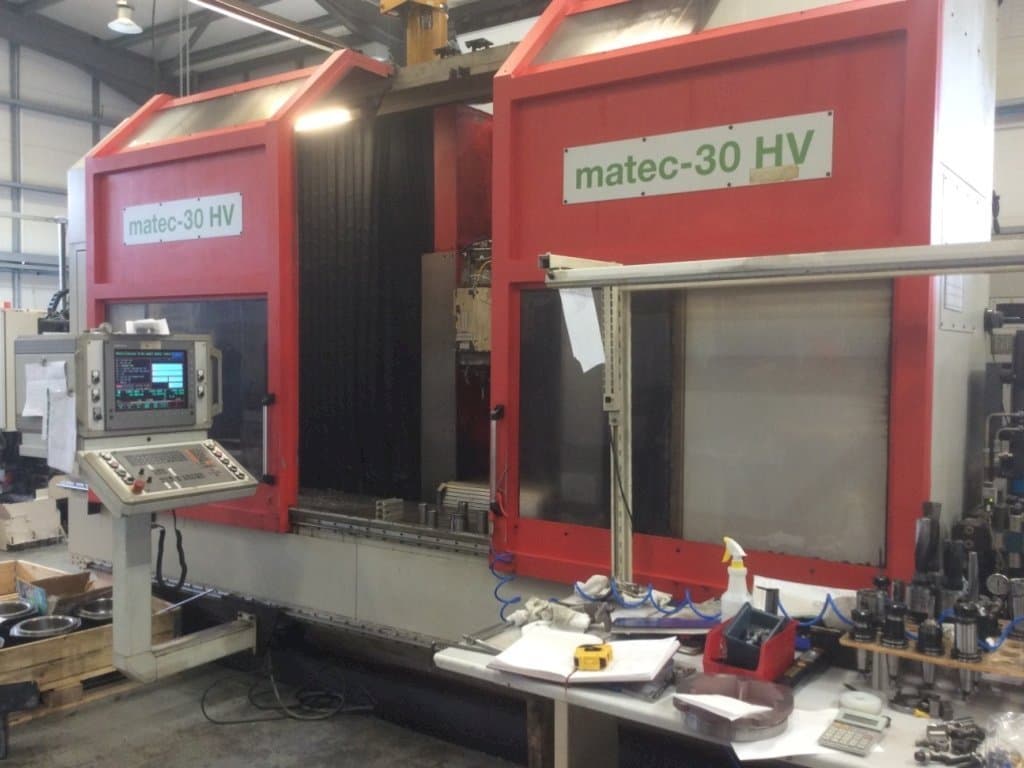

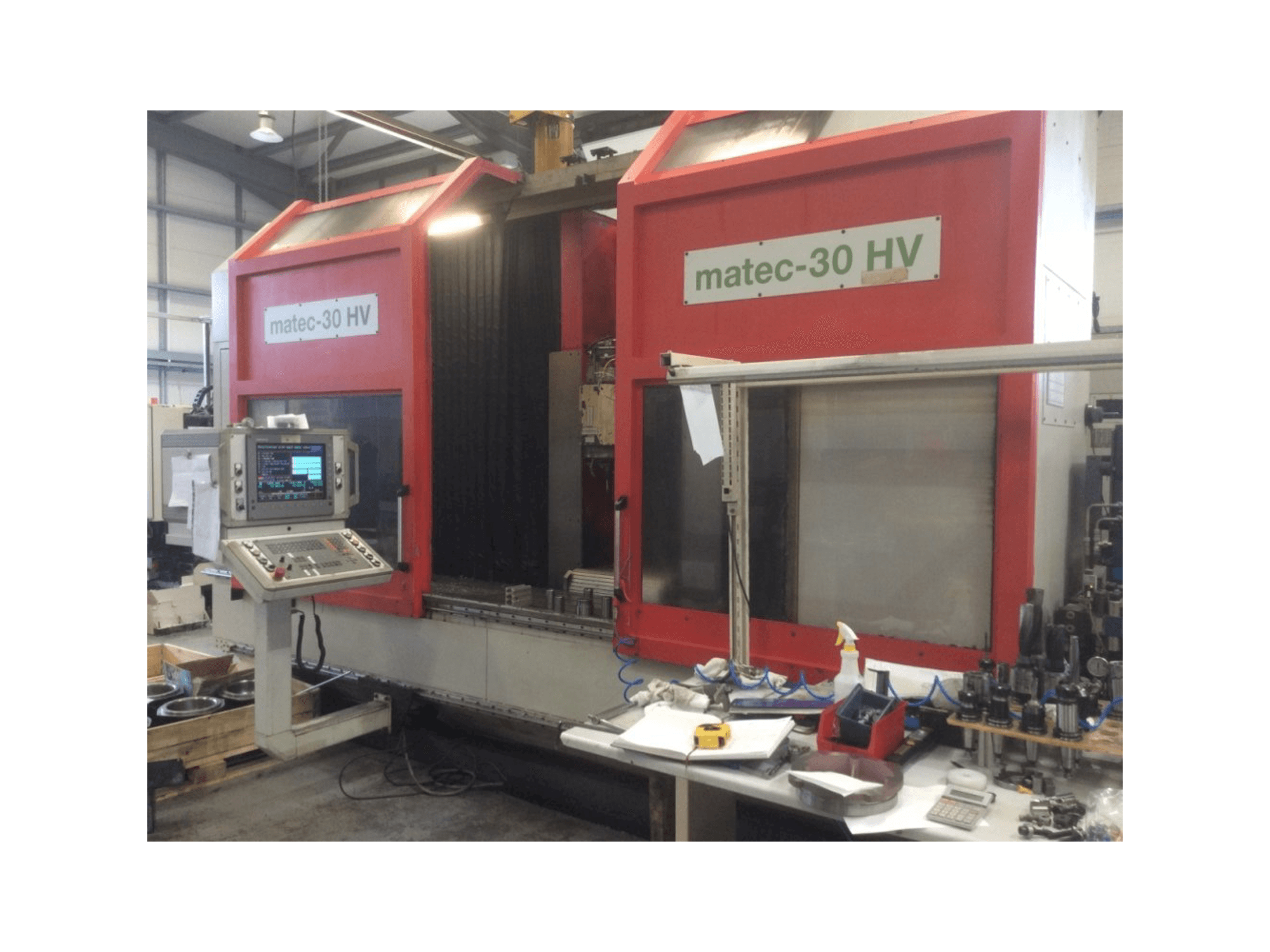

Matec 30 HV Vertical Machining Center

This Matec 30 HV Vertical Machining Center was built in Germany in 2001. It counts with only 29861 production hours. It is equipped with a Heidenhain 426 control unit. This machine is capable of working with a spindle speed up to 15000 rpm. It includes a Kuma 20 bar high pressure coolant unit, a 4th axis on table, and a 5th axis on table. It presents very good conditions.

Overview

brand: Matec
year: 2001
MODEL: 30 HV
production hours: 29861
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Matec 30 HV

General Data

Measurements width: 4600 mm
Measurements depth: 5900 mm
Measurements height: 4500 mm
Machine weight: 11000 kg

Control Unit

Model: 426
CNC main language: English
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 15000 1/MIN

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 700 mm
B-AXIS Movement: +/- 90 ° MM

Workpiece

Workpiece weight: 1362 kg

Table

Outer length: 3500 mm
Outer width: 650 mm
Number of tslots: 5

Tools

Slots in storage: 48
Max tool diameter: 130 mm
Max tool length: 450 mm
Type of tool holder: SK 40

Media

Main electronic connection: 400 V
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Kuma 20 Bar High Pressure Coolant Unit
- 4th Axis on table (A Axis)
- 5th Axis on table ( C Axis)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 6 axis machining centre. (x, y, z, b, a , c)
- - Included 20 bar high pressure coolant
- - Through spindle coolant
- - 3. 5m long bed
- - 48 tool atc
- - Travelling column machining centre
Qualitative Machine Benefits:
- - Machine in very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
