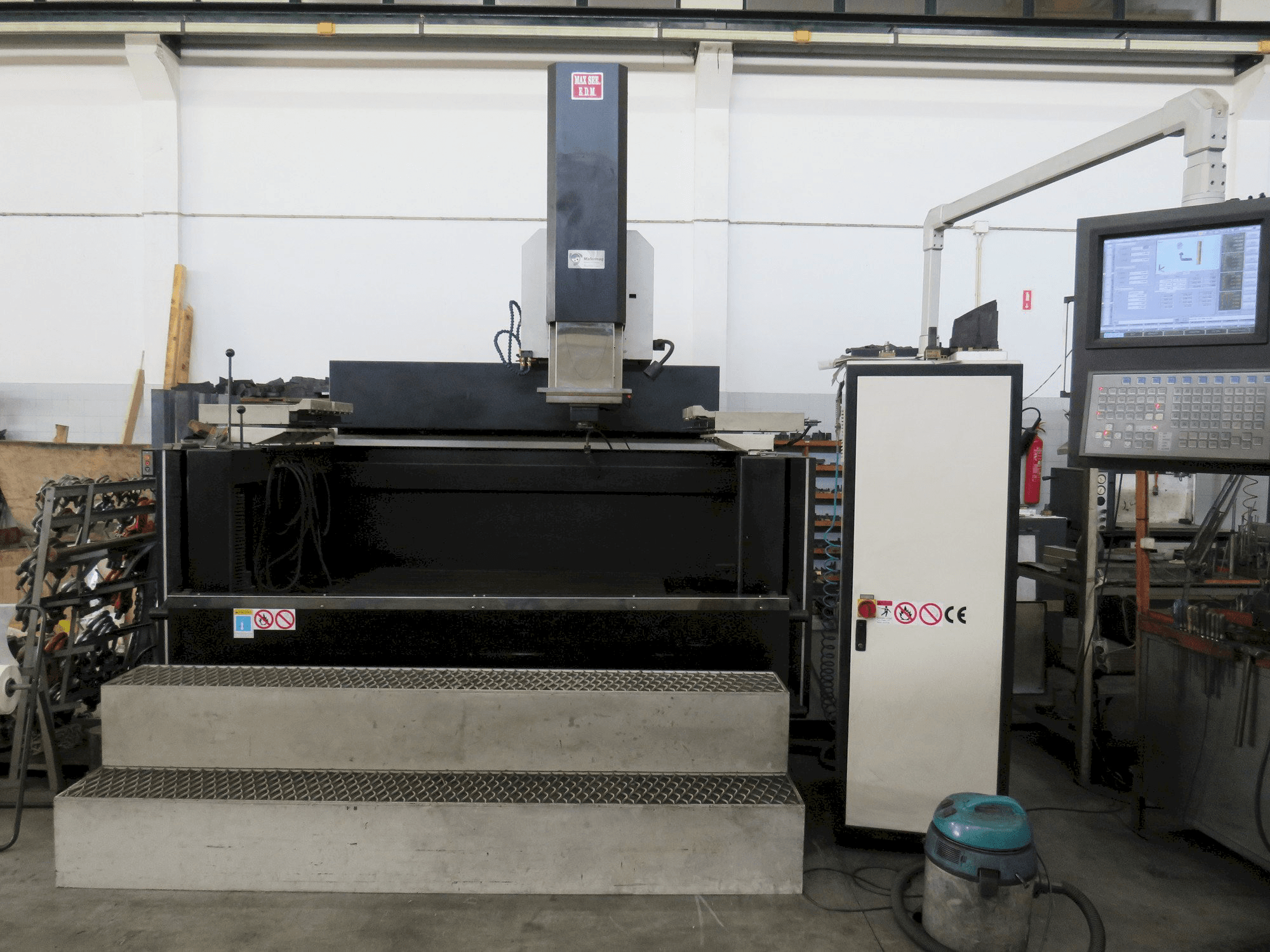

MAXSEE INDUSTRY5 CNC P66 100A Erosion machine

This MAXSEE INDUSTRY5 CNC P66 100A Erosion machine was manufactured in 2014 in Taiwan. It is operated through a control unit of the same brand. This machine counts with a table dimensions of 1600 x 950 mm. Includes magazin of 16 electrodes and c axis.

Overview

brand: MAXSEE INDUSTRY
year: 2014
MODEL: CNC P66 100A
application type: EDM
Location: Portugal
machine type: Die-Sinking EDM Machine
availability: Sold

Technical Information - MAXSEE INDUSTRY CNC P66 100A

General Data

Measurements width: 5000 mm
Measurements depth: 4700 mm
Measurements height: 3450mm
Machine weight: 8400 Kg

Movement

X-AXIS Movement: 1300 mm
Y-AXIS Movement: 700 mm
Z-AXIS Movement: 590 mm

Table

Outer length: 1600 mm
Outer width: 950 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Dimensions of part: 2100 x 1150 x 630 mm
- - Max electrode weight: 500 kg
- - Máximo part weight: 8000 kg
- - Trasformer 100a
- - Magazin 16 electrodes and c axis

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
