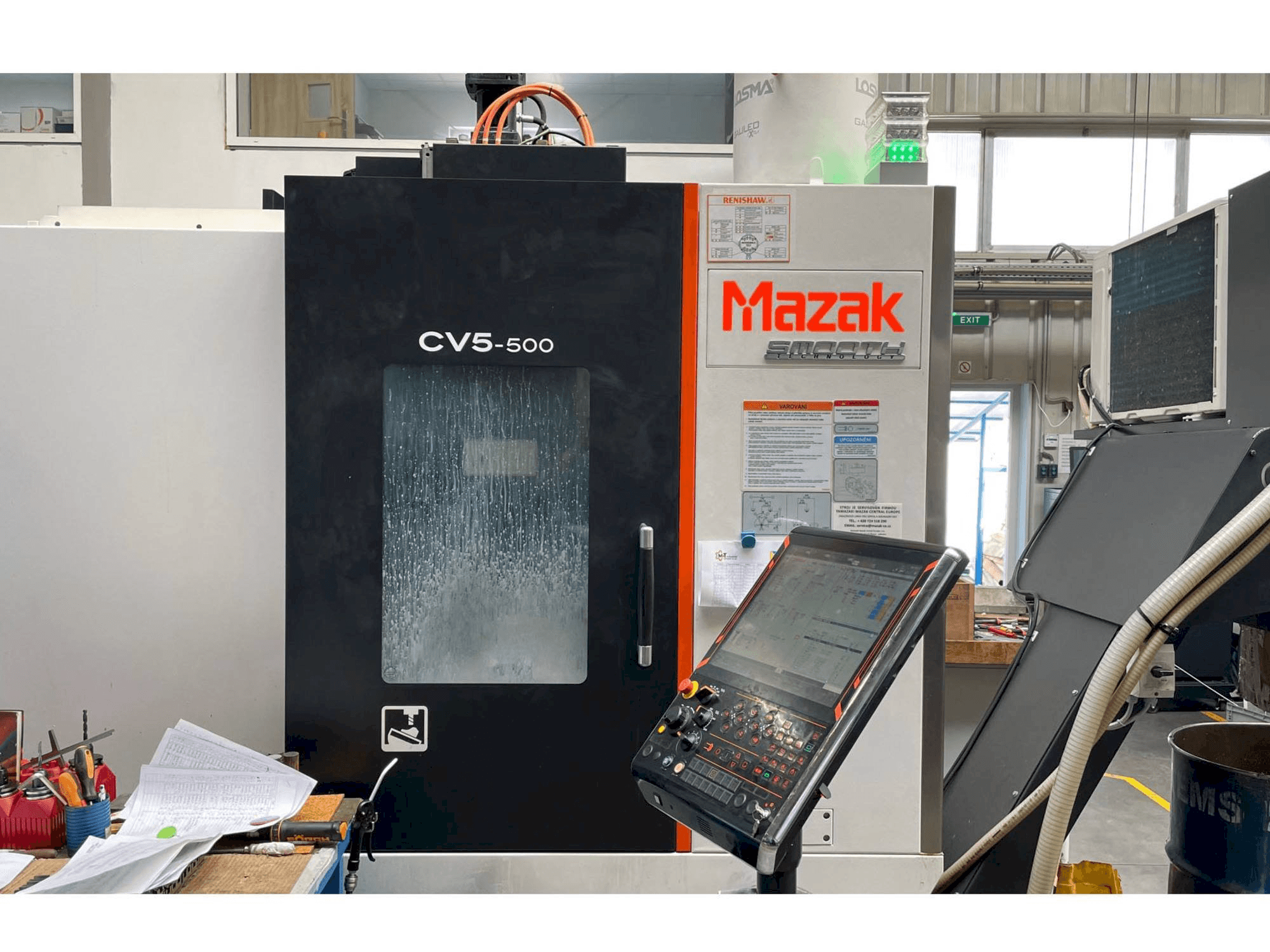

Mazak CV5-500 Vertical Machining Center

This Mazak CV5-500 Vertical Machining Center was manufactured in the year 2020. It has been working for 4610 hours. It is equipped through a Mazak SmoothX control unit. This 5 axis machine can work with a spindle speed up to 18000 rpm. It is in very good working conditions.

Overview

brand: Mazak
year: 2020
MODEL: CV5-500
production hours: 4610
application type: Milling
Location: Slovakia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak CV5-500

General Data

Measurements width: 2300 mm
Measurements depth: 2984 mm
Measurements height: 2933 mm
Machine weight: 6500 kg

Control Unit

Model: SmoothX
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 18000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 730 mm
X-AXIS Rapid traverse: 36 m/min
Y-AXIS Movement: 450 mm
Y-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 470 mm
Z-AXIS Rapid traverse: 36 m/min

Workpiece

Workpiece weight: 200 kg

Tools

Slots in storage: 48
Max weight: 8 kg
Max tool diameter: 80/125 mm
Max tool length: 300 mm
Type of tool holder: CAT40

Media

Power consumption: 43.4 kVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum workpiece diameter 500 mm
- - Maximum workpiece height 320 mm
- - B-axis (table tilt) travel amount/indexing 0. 0001° 220° (±110°)
- - C-axis (table rotation) travel amount/indexing 0. 0001° 360°
- - Rapid traverse rate (b/c) 30 min-1
- - Distance spindle nose to table center (table vertical) max 565 mm
- - Main output (ac inverter motor) 10% ed rating 18,5 kw
- - Rmi-q multiple probe radio interface - rlp40 tool setting unit 5-axis machining package for smoothx
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
