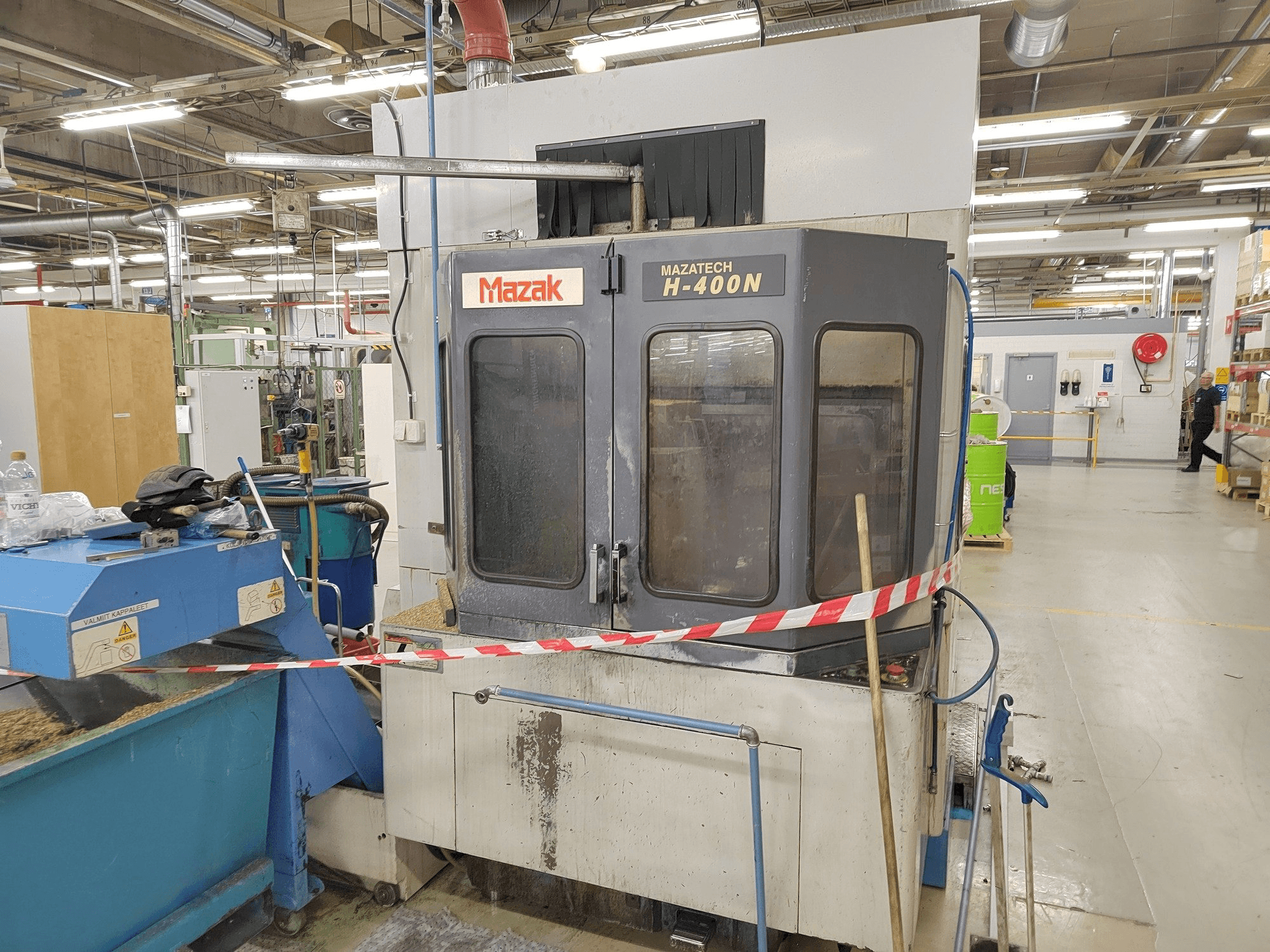

Mazak H-400N Vertical Machining center

This Mazak H-400N Vertical Machining center was manufactured in the year 1995 in Japan. It is equipped with a Mazatrol M32 control unit and has 5 axis. The machine has a spindle speed of 10000 rpm and has a lubricating tank with pump as additional equipment.

Overview

brand: Mazak
year: 1995
MODEL: H-400N
application type: Milling
Location: Finland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak H-400N

General Data

Measurements width: 4300 mm
Measurements depth: 2250 mm
Measurements height: 2750 mm
Machine weight: 9000 kg

Control Unit

Model: M32
CNC language customizable: Yes
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 560 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 510 mm

Table

Outer length: 500 mm
Outer width: 500 mm

Tools

Slots in storage: 30
Type of tool holder: ISO 40

Media

Main electronic connection: 400 V
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Lubricating tank with pump

Additional Information

Machine Benefits

Technical Machine Benefits:
- - C axis 360 degrees
- - B axis +110 degrees/-35 degrees
- - Min. -max. Height under spindle 102-610 mm
- - Feedrate 16. 5 m/min.
- - Rapid feedrate 30. 5 m/min.
- - Spindle motor power 22. 4 kw
- - Through spindle coolant, coolant
- - Interlocked guards, remote hand wheel, hard disk 1gb, usb port
Qualitative Machine Benefits:
- - Very good condition!

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
