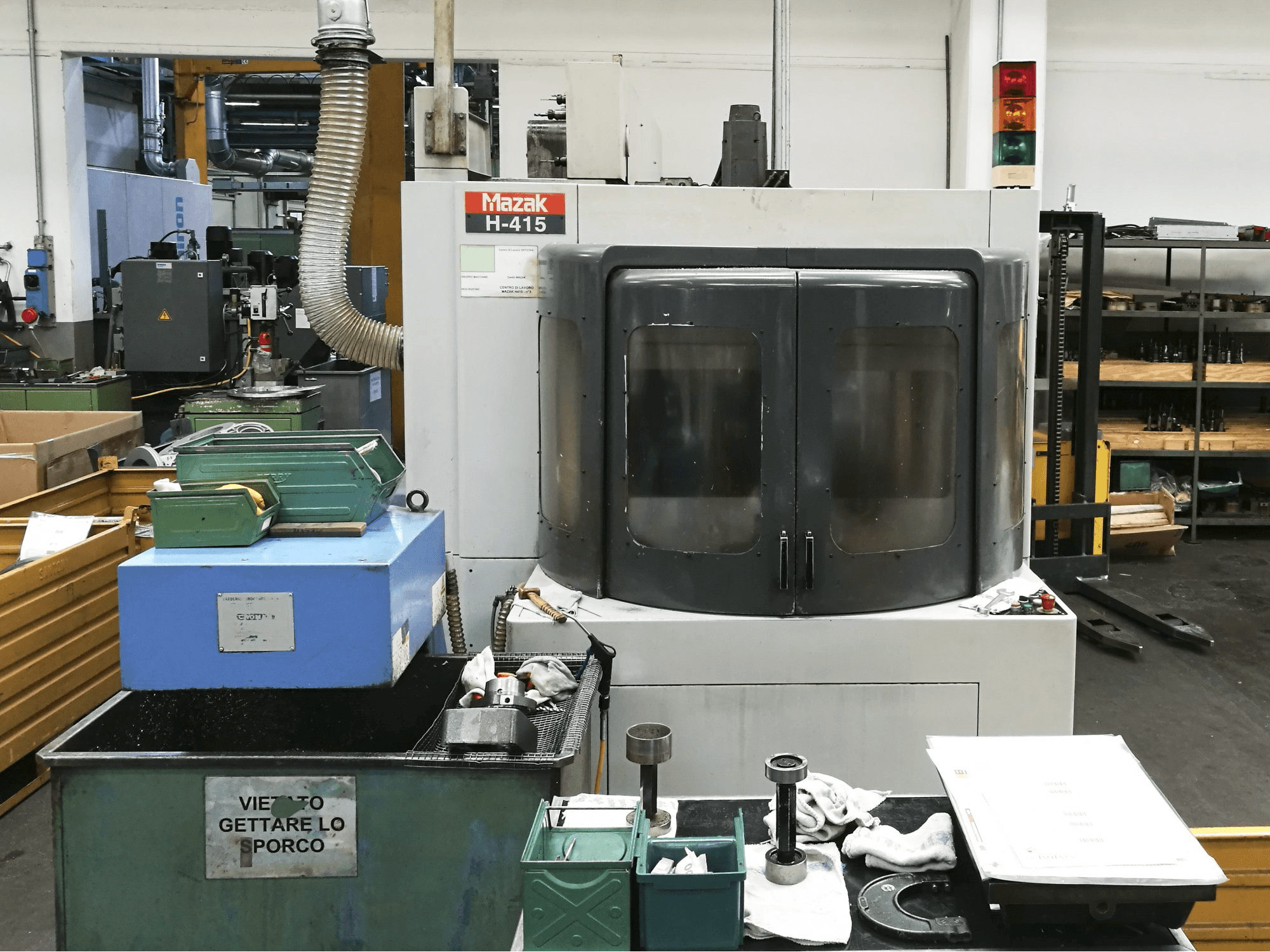

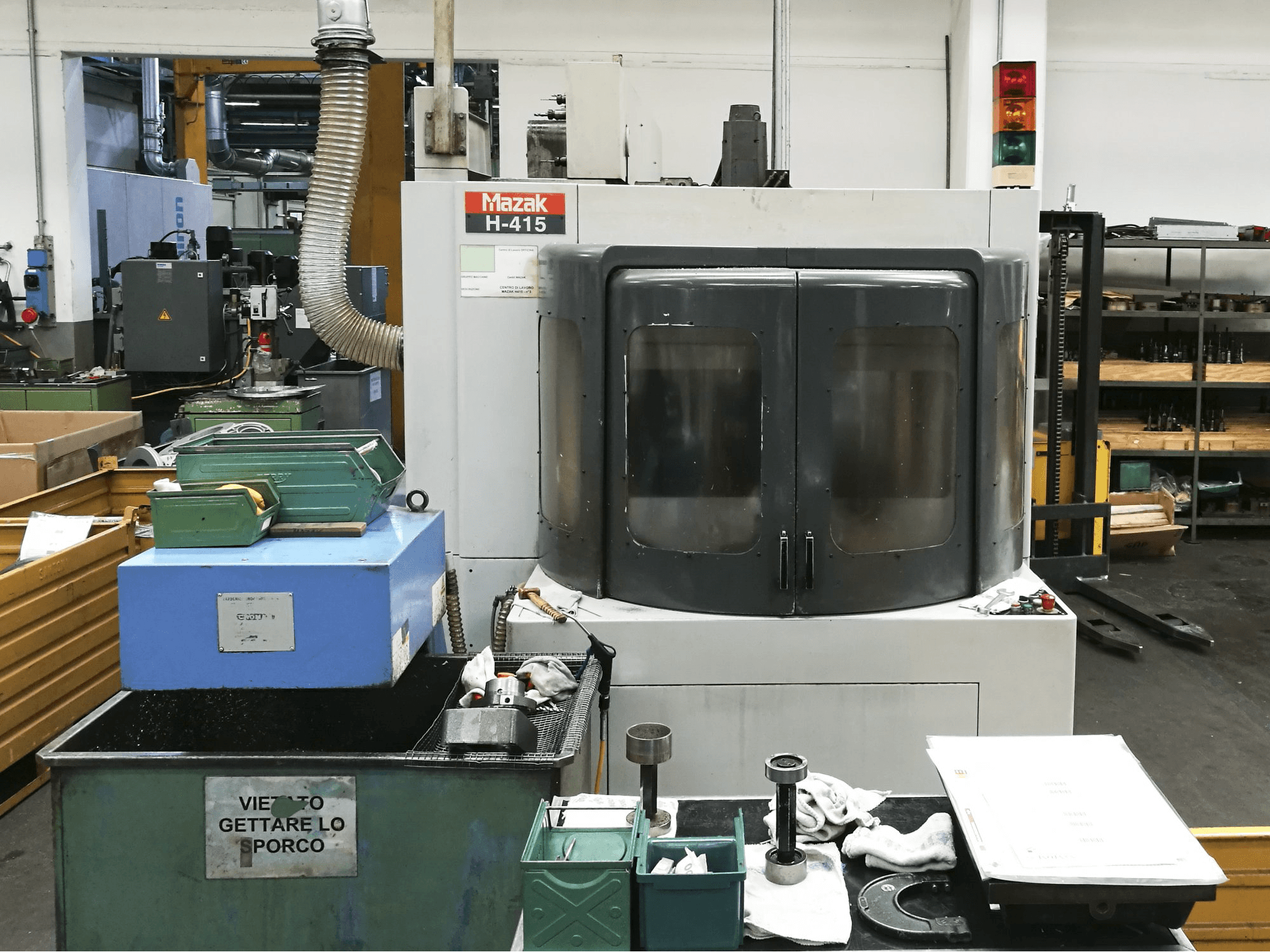

Mazak H-415 Machining Center

This Mazak H-415 Machining Center from 1997 has a production record of 72034 working hours. With a Mazatrol M Plus (with remote control) Control unit, this model is easily programmable through its software. As main features, the equipment incorporates a 2x Pallet changer and a 120x Tool changer. In the past, this H-415 has handled mostly steel and produced machinery parts for the Textile industry.

Overview

brand: Mazak
year: 1997
MODEL: H-415
production hours: 72034
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak H-415

General Data

Measurements width: 3850 mm
Measurements depth: 2490 mm
Measurements height: 2429 mm
Machine weight: 9150 kg

Control Unit

Brand: MAZATROL
Model: M Plus
Remote control: Yes

Main drive

Number of spindles: 1
Spindle speed range: 35-10000 1/min
Spindle motor power: 7.5 kW
Tool taper: ISO 40

Movement

X-AXIS Movement: 560 mm
X-AXIS Working Feed: 1-8000 mm/min
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: 510 mm
Y-AXIS Working Feed: 1-8000 mm/min
Y-AXIS Rapid traverse: 30 m/min
B-AXIS Movement: 360° MM

Workpiece

Workpiece drm: 610 mm
Workpiece z: 600 mm
Workpiece weight: 400 kg

Table

Outer length: 400 mm
Outer width: 400 mm

Tools

Slots in storage: 120
Max weight: 12 kg
Max tool diameter: 95/150 mm
Max tool length: 320 mm

Media

Main electronic connection: 400 V / 3P / 50 Hz
Power consumption: 48 kVA
Air pressure: 6 bar
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
