Mazak HCN-5000/50

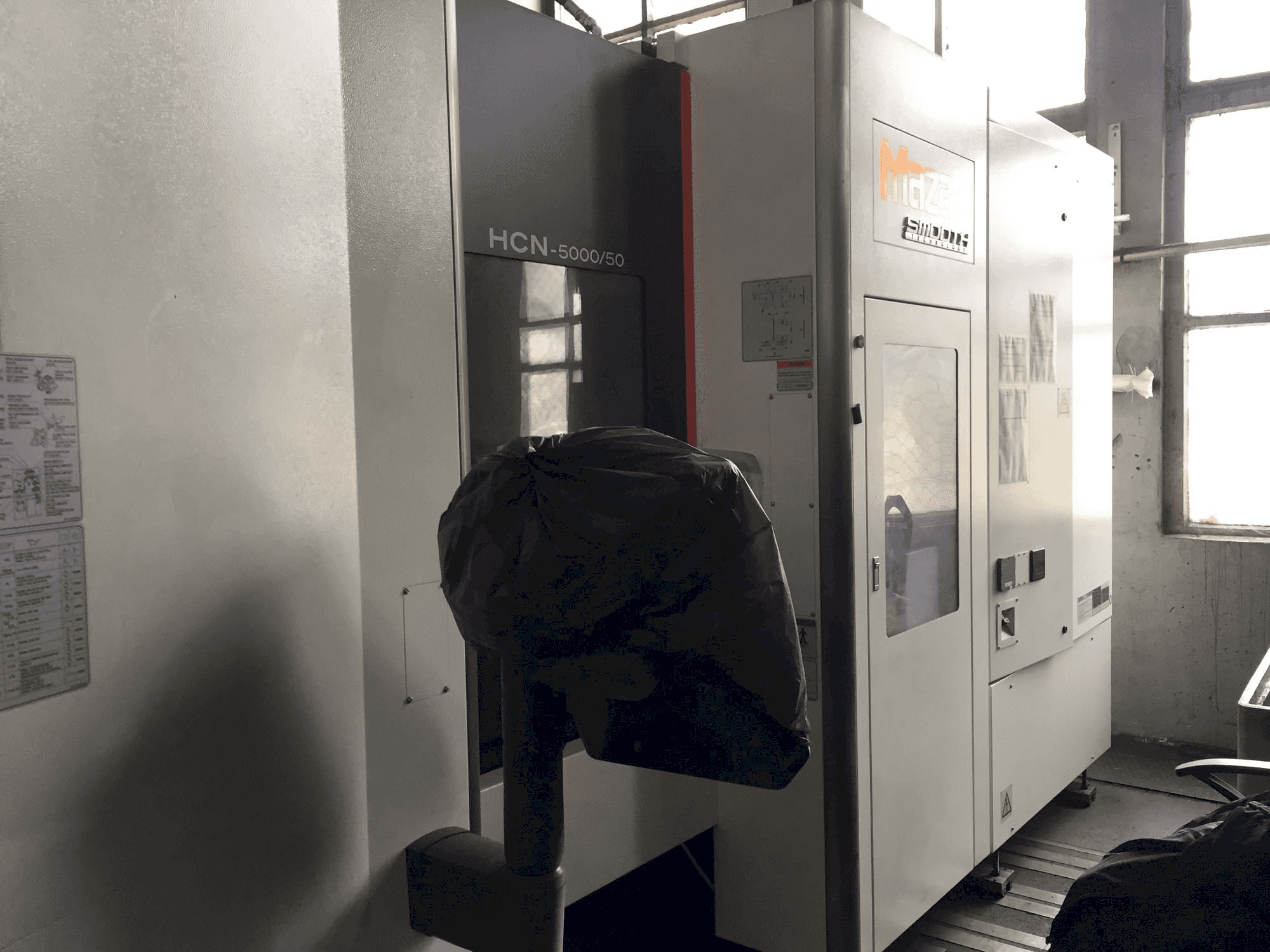

This Mazak HCN-5000/50 Horizontal Machining Center was built in the year 2019 in Japan. It counts with 4098 power on hours, of which only 2395 are cutting hours. This 4 axis machine is operated thorugh a Mazatrol Smooth G control unit. It can work with a spindle speed up tp 10000 rpm and a rapid traverse rate 60000 mm/min. This machine is in very good condition.

Overview

brand: Mazak
year: 2019
MODEL: HCN-5000/50
production hours: 4098
application type: Milling
Location: Bulgaria
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak HCN-5000/50

General Data

Machine weight: 12830 kg

Control Unit

Model: Smooth G
CNC language customizable: Yes
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 730 mm
Y-AXIS Movement: 730 mm
Z-AXIS Movement: 800 mm

Workpiece

Workpiece weight: 700 kg

Table

Outer length: 500 mm
Outer width: 500 mm

Tools

Slots in storage: 43
Max tool diameter: 125 mm
Type of tool holder: MAS BT 50

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum part size d = 800 mm x h = 1000 mm
- - Rapid traverse rate 60000 mm/min
- - Pallet change time 10 s (700 kg)
- - Standard 1° index: table index time (/90°) 1. 4 s
- - Motor 37kw (10%ed) / 30 kw (40%ed) / 22kw (cont. Rating)
- - Auto tool length measuring & breakage detection
- - Smooth synchronized tapping, big plus type tool provision
- - Tool change time (chip to chip) 3. 5s
Qualitative Machine Benefits:
- - Machine in very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
