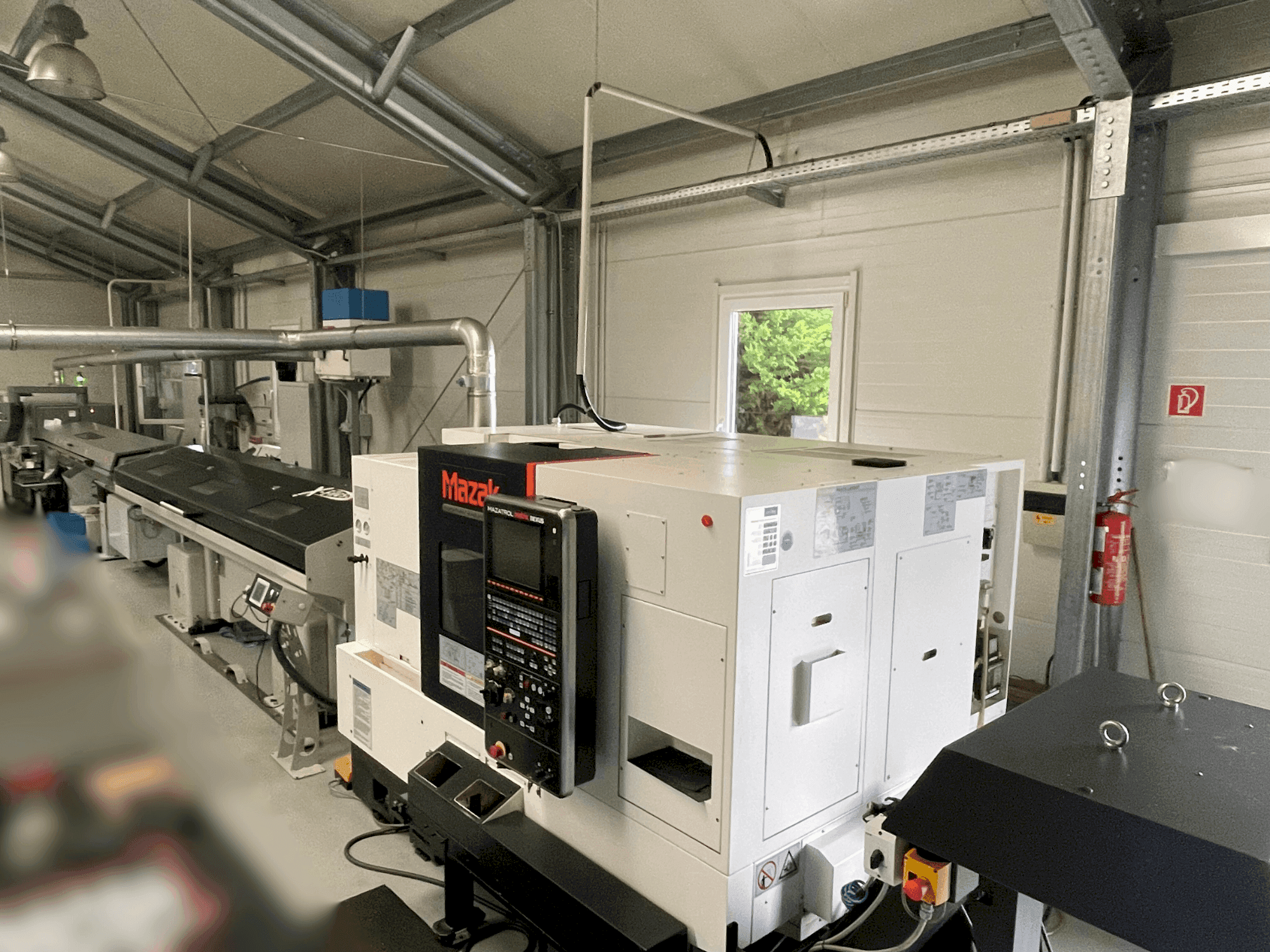

Front view of Mazak Quick Turn Nexus 200-II MS  machine

Mazak - Quick Turn Nexus 200-II MSHU-TUR-MAZ-2013-00001

112,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 4-axis Mazak Quick Turn Nexus 200-II MS horizontal turning machine was manufactured in 2013. It features a 12-position driven turret head, main spindle speed of 5000 rpm, and a counter spindle speed of 6000 rpm. The machine includes a Mazatrol Matrix Nexus controller and a high-performance cooling system. If you are looking to get high-quality turning capabilities, consider the Mazak Quick Turn Nexus 200-II MS machine we have for sale. Contact us for more information.

Overview

  • brand: Mazak
  • year: 2013
  • MODEL: Quick Turn Nexus 200-II MS
  • application type: Turning
  • Location: Hungary
  • machine type: Horizontal Turning Machine
  • availability: Immediately
  • control unit brand: MAZATROL

Technical Information - Mazak Quick Turn Nexus 200-II MS

Control Unit

  • Brand: MAZATROL
  • Model: MATRIX NEXUS

Main drive

  • Spindle speed range: 5000 1/MIN
  • Main motor power: 26 kw

Movement

  • X-AXIS Movement: 230 mm
  • X-AXIS Rapid traverse: 33.0 m/min
  • Z-AXIS Movement: 575 mm
  • Z-AXIS Rapid traverse: 33.0 m/min

Turret

  • Number of tool slots: 12

    Additional Equipment

    • - Standard tool package included
    • - Specific tool holders and sockets provided
    • - Coolant tank volume: 190 L
    • - High performance cooling system - 520W
    • - Complete cooling system

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Maximum torque: 435 nm
        • - Maximum turning diameter: 675 mm
        • - Turning length: 575 mm
        • - Maximum machinable diameter: 380 mm
        • - Size of bar material that can be machined: 77 mm
        • - Tool size (external turning): 25 mm²
        • - Tool size (internal diameter turning): Ø40 mm
        • - Tool change time (one step): 0. 2 s
      • Qualitative Machine Benefits:
        • - Includes services such as relocation detector, token system, and chuck opening/closing feedback
        • - Side chip conveyor preparation
        • - Intelligent thermal field and security area
        • - Mazak live voice help
        • - Voltage converter for the european market
        • - Health and safety features including door opening control and full machine enclosure
        • - Comprehensive nc controller features with 600 user macros and usb i/f ports

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
