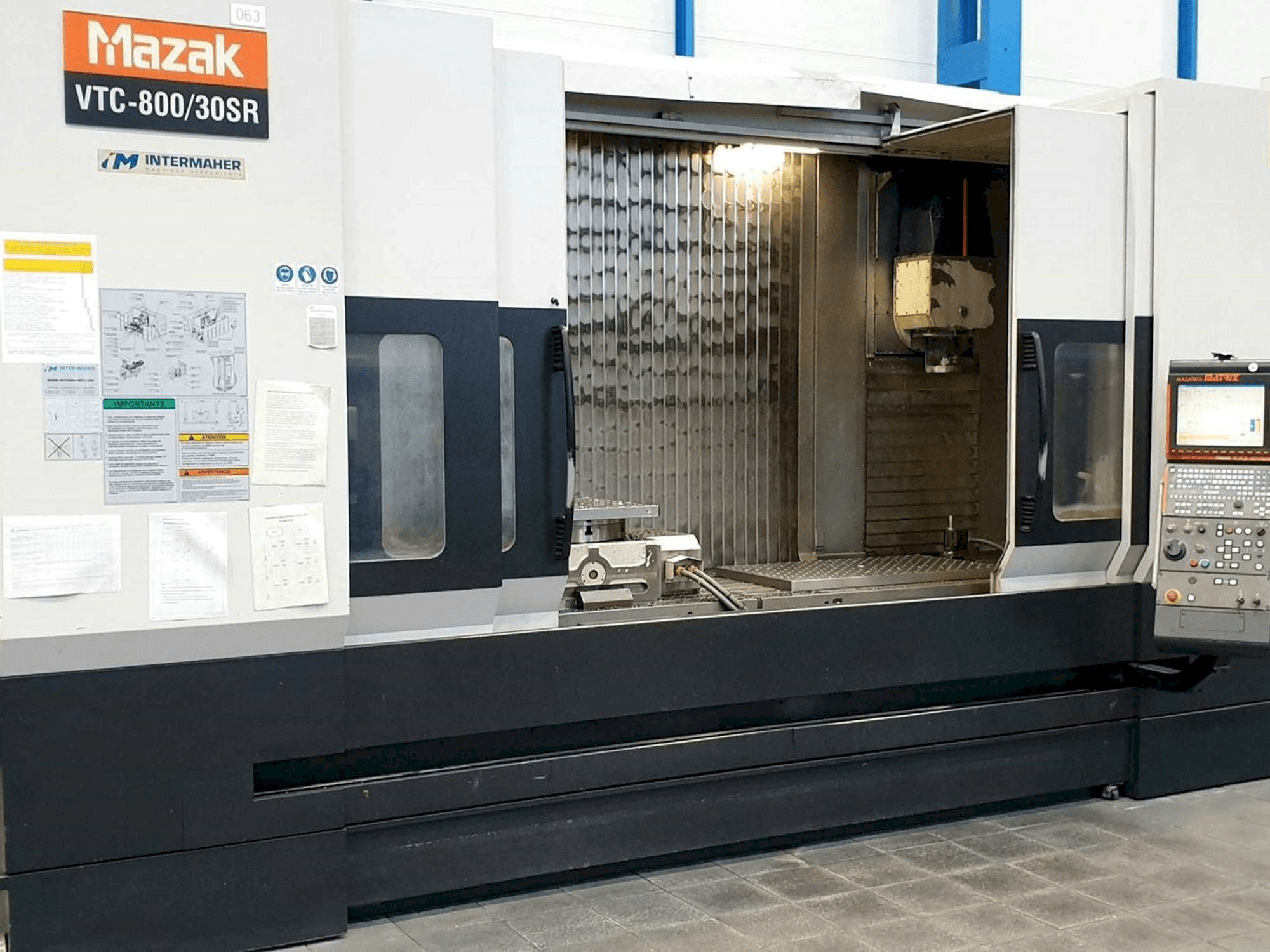

Mazak VTC-800/30SR Vertical Machining Center

This Mazak VTC-800/30SR Vertical Machining Center was manufactured in 2010 in the United Kingdom and has been working for 41865 hours. Equipped with a Mazatrol Matrix Control unit, this 5 axis machine is capable of performing with a spindle speed up to 18000 rpm. The machine is equipped with both air and coolant cooling through the spindle.

Overview

brand: Mazak
year: 2010
MODEL: VTC-800/30SR
production hours: 41865
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak VTC-800/30SR

General Data

Measurements width: 5250 mm
Measurements depth: 4174 mm
Measurements height: 3328 mm
Machine weight: 16300 kg

Control Unit

Model: Mazatrol Matrix
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 18000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 720 mm

Workpiece

Workpiece weight: 2500 kg

Table

Outer length: 3500 MM
Outer width: 820 mm
Number of tslots: 7
Distance between: 100 mm

Tools

Slots in storage: 48
Max weight: 8 kg
Max tool diameter: 130 mm
Max tool length: 350 mm
Type of tool holder: BT 40

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - Spindle x axis replaced by a new one at 35583 hours
- - Repaired front telescopic, ram fairing and opening bellows for changing tools recently changed
- - The machine is equipped with both air and coolant cooling through the spindle

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
