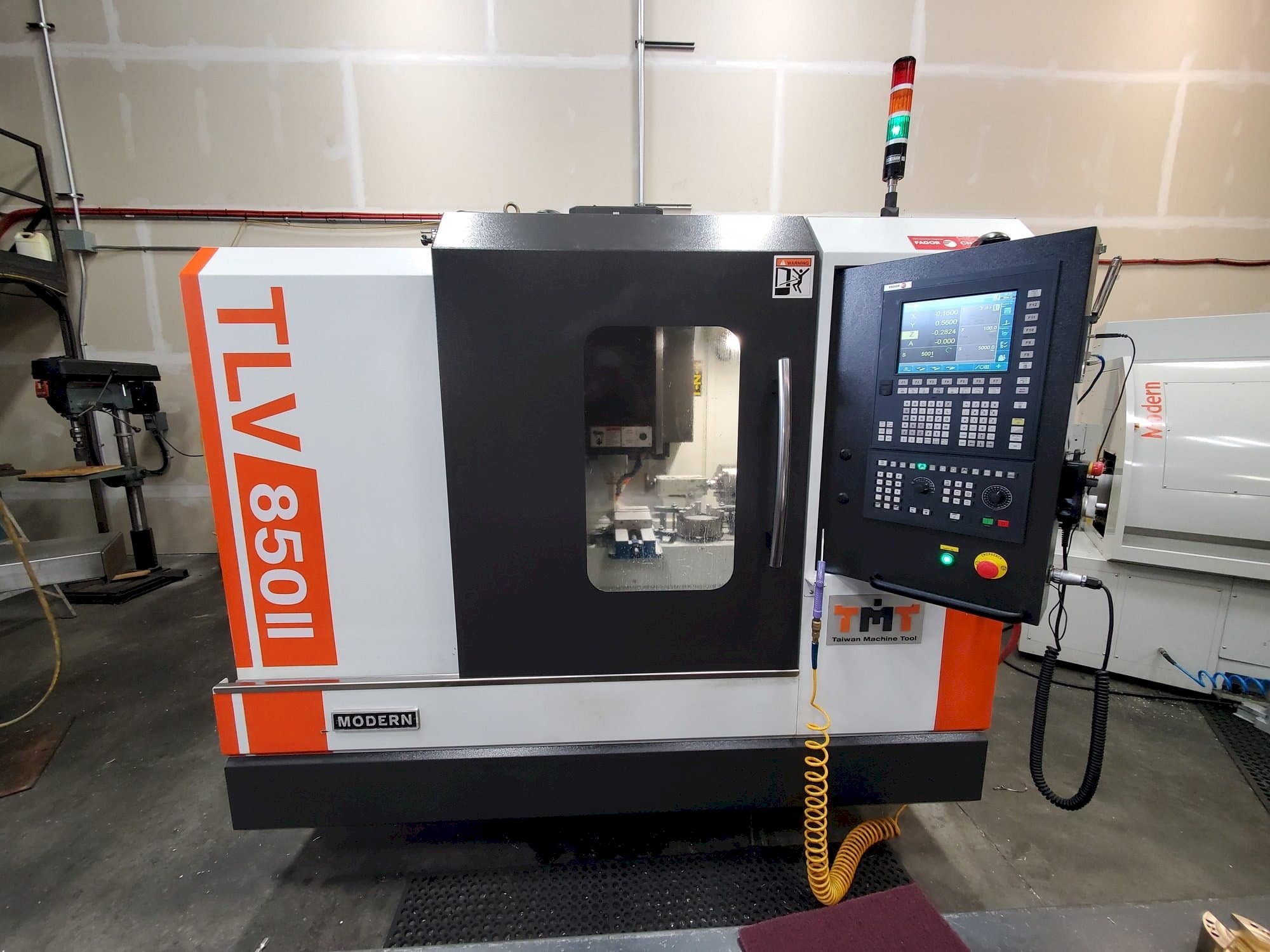

MICROCUT Modern TLV-85011 Vertical Machining Center

This MICROCUT Modern TLV-85011 Vertical Machining Center was built in the year 2015. It is equipped with a 0i-M controller. This machine incorporates a spindle speed up to 10000 rpm.

Overview

brand: MICROCUT
year: 2015
MODEL: Modern TLV-85011
application type: Milling
Location: Canada
machine type: Vertical Machining Centre
availability: Sold

Technical Information - MICROCUT Modern TLV-85011

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 7.5/11 KW

Table

Outer length: 1000 mm
Outer width: 530 mm
Table load: 500 kg

Tools

Max weight: 7 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - T-slot (size x number x pitch): 18 mm x 5t x 100 mm
- - X axis stroke: 850 mm
- - Y axis stroke: 530 mm
- - Z axis stroke: 580 mm
- - Distance from table surface to spindle nose: 100 – 680 mm
- - Distance from coumn cover to spindle center line: 586 mm
- - Spindle taper: bt-40
- - Rapid feedrate (x/y/z): 36/36/30 m/min
- - Tool storage capacity: arm type 24t pcs

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
