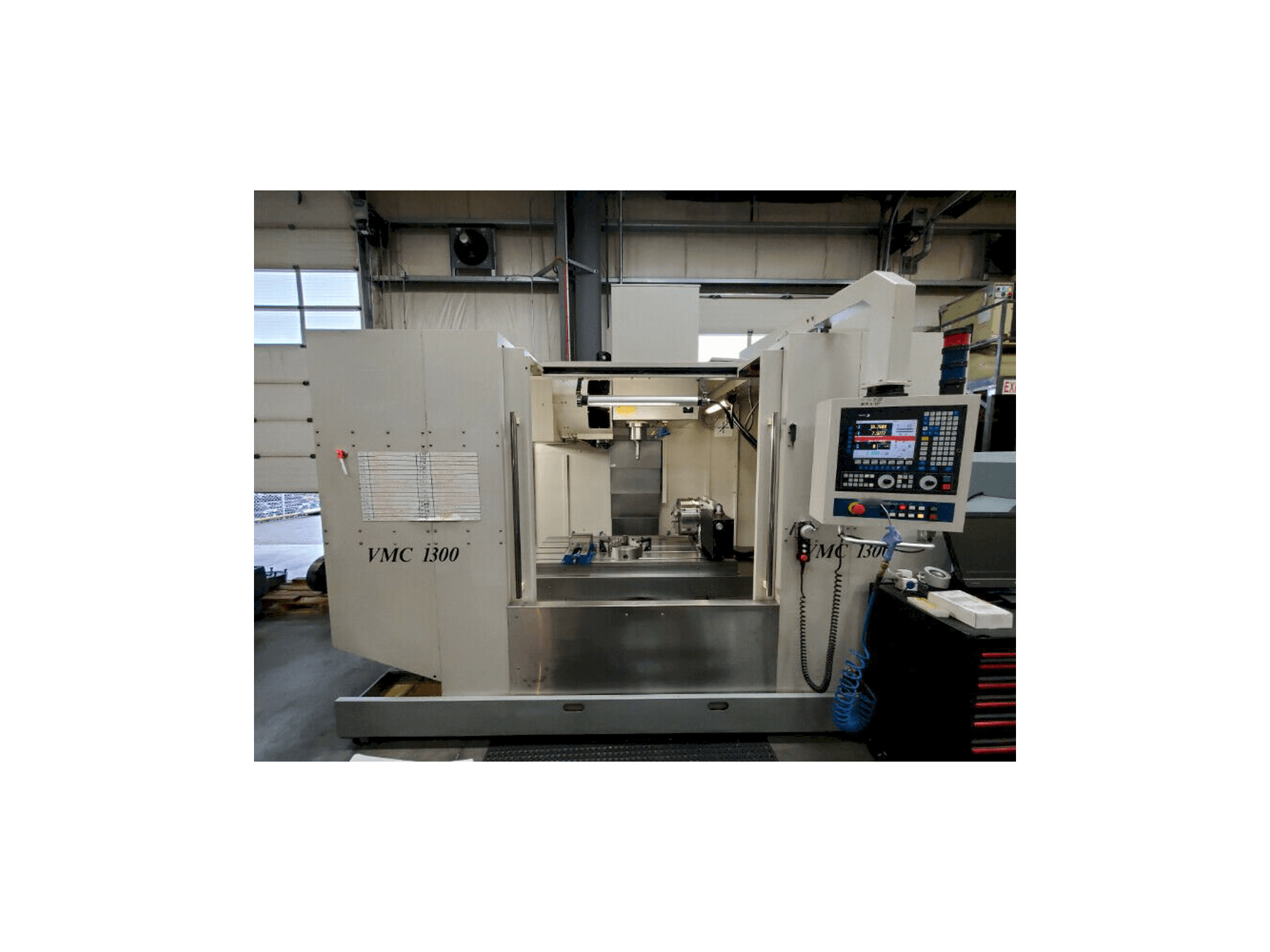

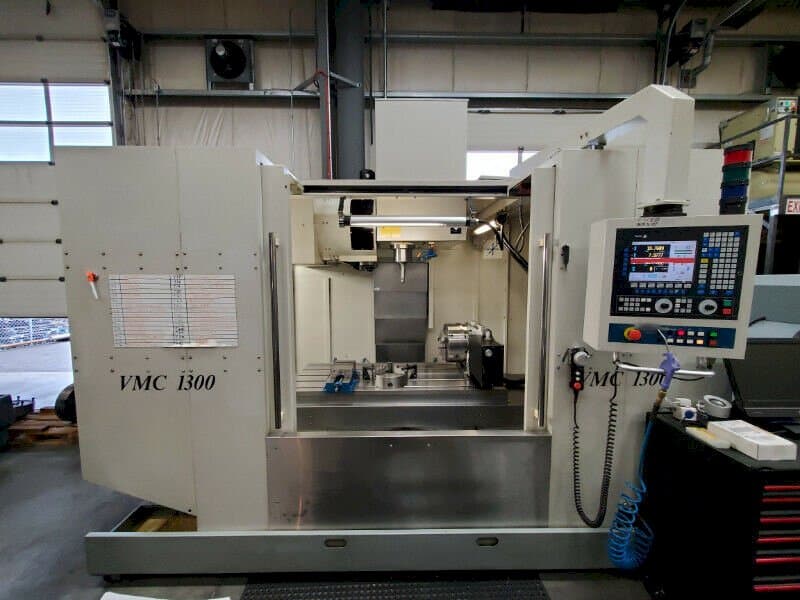

MICROCUT - Modern VMC 1300CA-MIL-MIC-2006-00001

Main drive

• Spindle speed range: 10000 1/MIN
• Spindle motor power: 11/15 kw

Movement

• X-AXIS Movement: 1300 mm
• X-AXIS Working Feed: 8 m/min
• X-AXIS Rapid traverse: 24 m/min
• Y-AXIS Movement: 710 mm
• Y-AXIS Working Feed: 8 m/min
• Y-AXIS Rapid traverse: 24 m/min
• Z-AXIS Movement: 710 mm
• Z-AXIS Working Feed: 8 m/min
• Z-AXIS Rapid traverse: 24 m/min

Table

• Outer length: 500 mm
• Outer width: 660 mm
• TSlots size: 18 X 135 X 6 mm
• Min distance between vertical spindle and table: 120 mm
• Max distance between vertical spindle and table: 830 mm
• Table load: 1500 kg

Tools

• Number of stations: 32
• Max weight: 8 kg
• Max tool diameter: 75 mm
• Max tool length: 300 mm
• Type of tool holder: ISO 40
