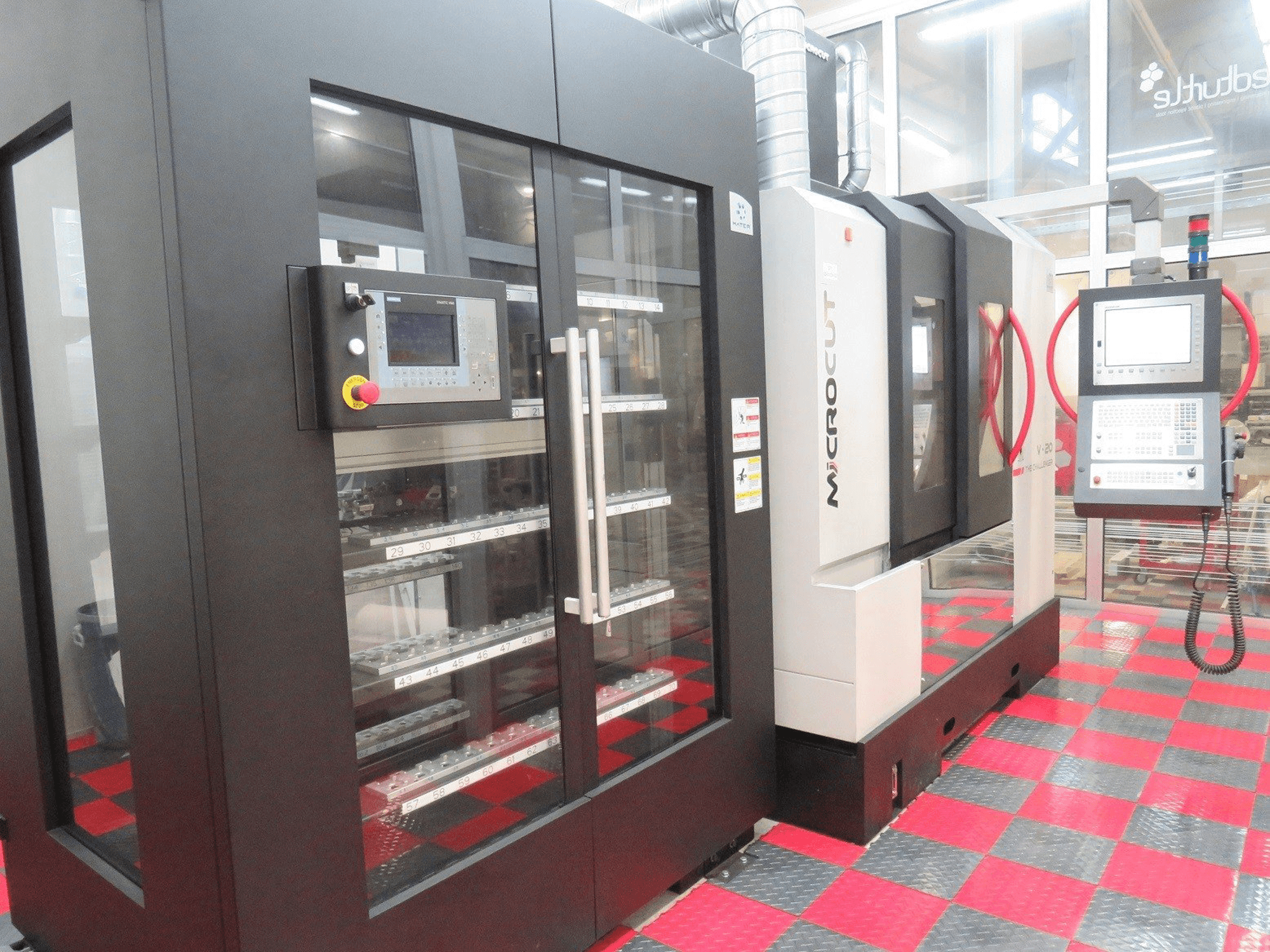

MICROCUT V-20G Vertical Machining Center

This MICROCUT V-20G Vertical Machining Center was built in the year 2014 in Taiwan. It is equipped with a Heidenhain 530 control unit. It has 10040 spindle hours. This machine incorporates a spindle speed up to 25000 rpm.

Overview

brand: MICROCUT
year: 2014
MODEL: V-20G
production hours: 10040
application type: Milling
Location: Portugal
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - MICROCUT V-20G

General Data

Measurements width: 2254 mm
Measurements depth: 2644 mm
Measurements height: 2922 mm
Machine weight: 5000 kg

Control Unit

Model: 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 25000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 500 mm

Table

Outer length: 900 mm
Outer width: 520 mm
Height adjustment: 870 mm
Table load: 450 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Measuring and centering probes: renishaw ts27
- - Tool changer capacity: 24 + 1 hsk 30

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
