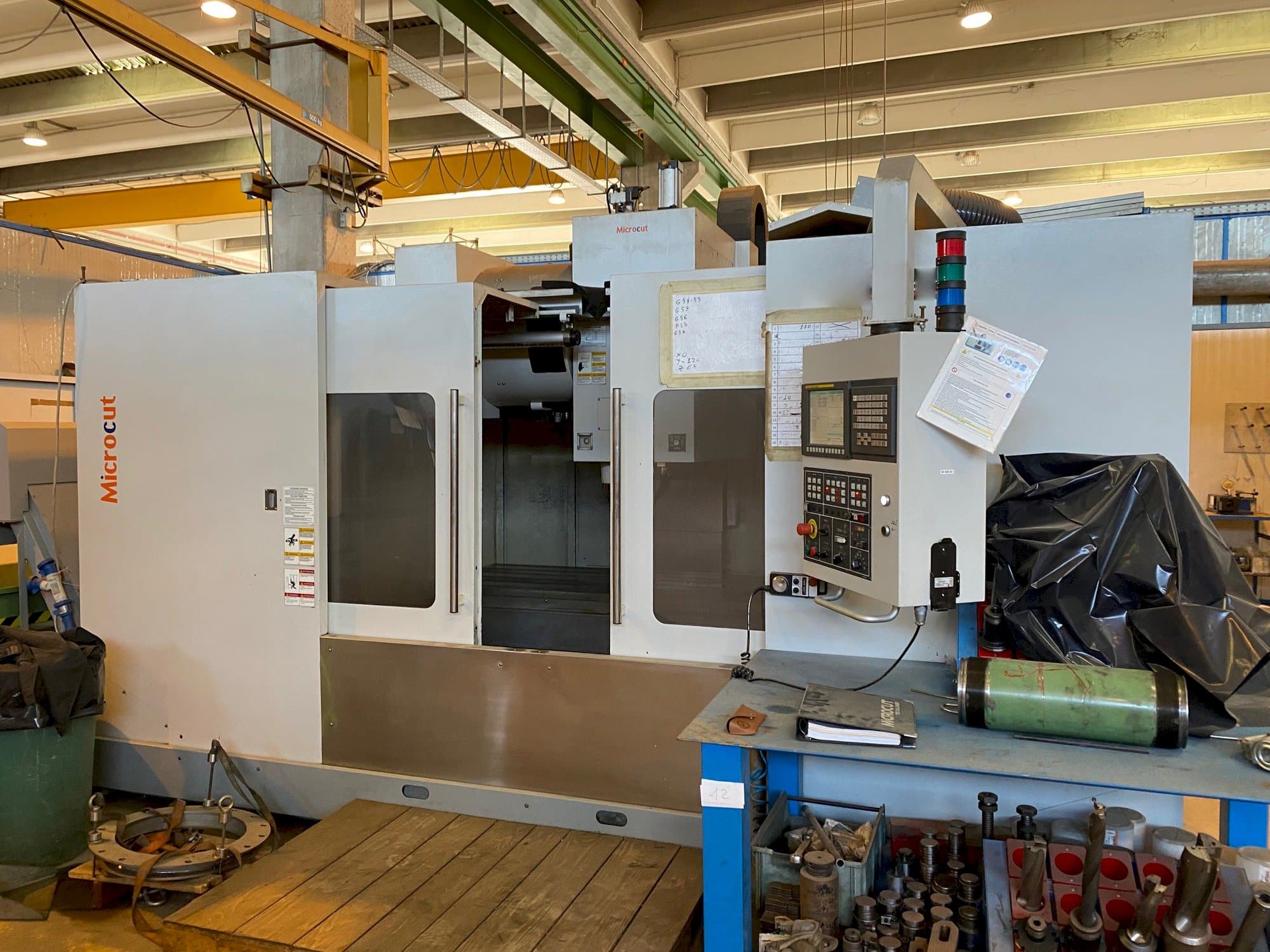

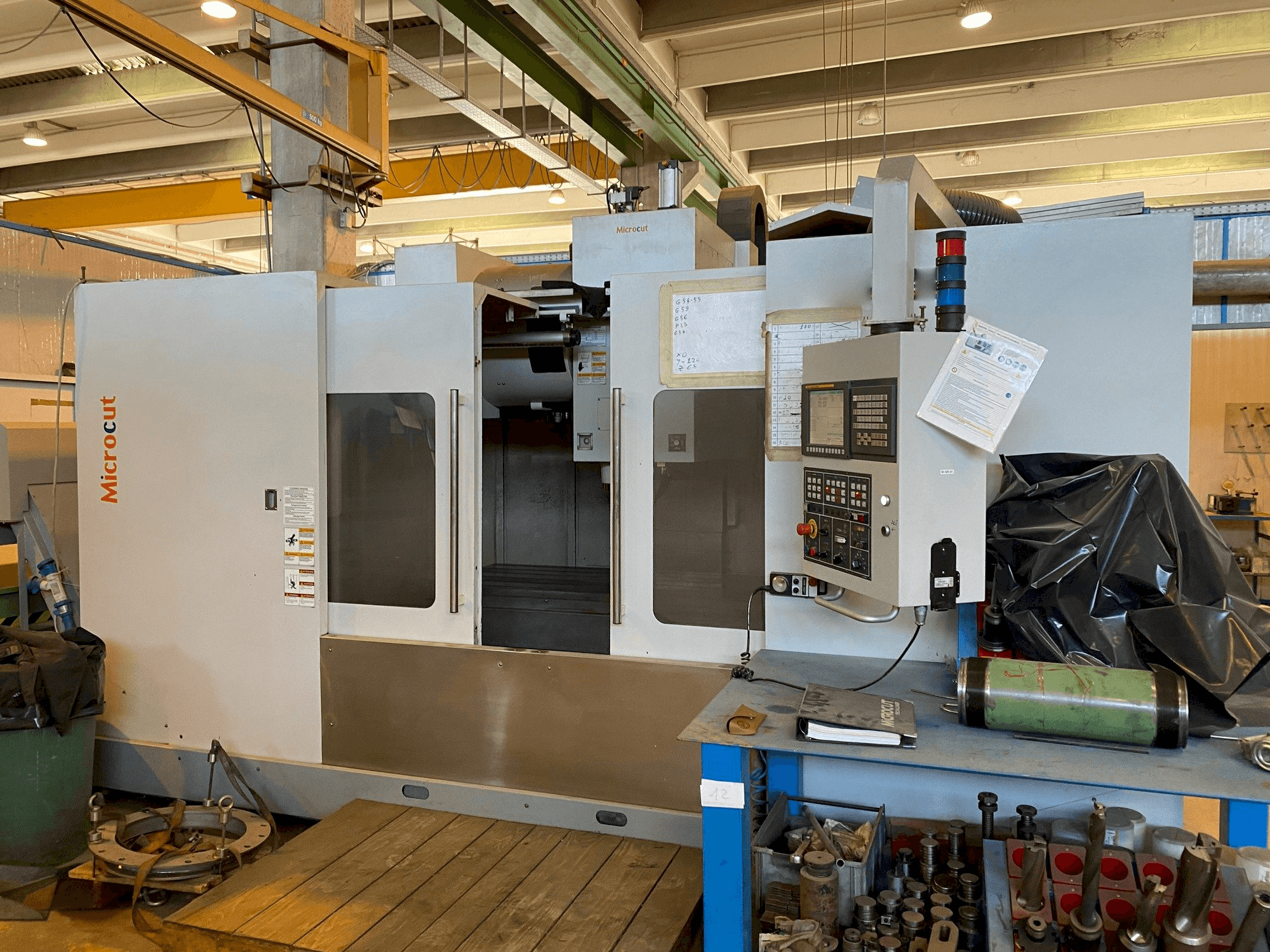

MICROCUT MC-1600F Vertical machining center

This MICROCUT MC-1600F Vertical machining center was made in Taiwan in 2014. It shows 1020 working hours. It is operated through a FANUC Series Oi-MD control unit. This 3 axis machine works with a spindle speed (opt.) up to 6000 / 10000 rpm. Includes machine manual.

Overview

brand: MICROCUT
year: 2014
MODEL: VMC-1600F
production hours: 1020
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - MICROCUT VMC-1600F

General Data

Machine weight: 12000 KG

Control Unit

Model: Series Oi-MD
Brand: FANUC

Main drive

Spindle speed range: 6000 / 10000 (opt.) 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1600 mm
X-AXIS Rapid traverse: 24 m/min
Y-AXIS Movement: 800 mm
Y-AXIS Rapid traverse: 24 m/min
Z-AXIS Movement: 710 mm
Z-AXIS Rapid traverse: 24 m/min

Table

Outer length: 1800 mm
Outer width: 800 mm
Min distance between vertical spindle and table: 150 mm
Max distance between vertical spindle and table: 860 mm
Table load: 2000 KG

Media

Main electronic connection: 3 X 400V / 50Hz
Power consumption: 50 kVA
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
