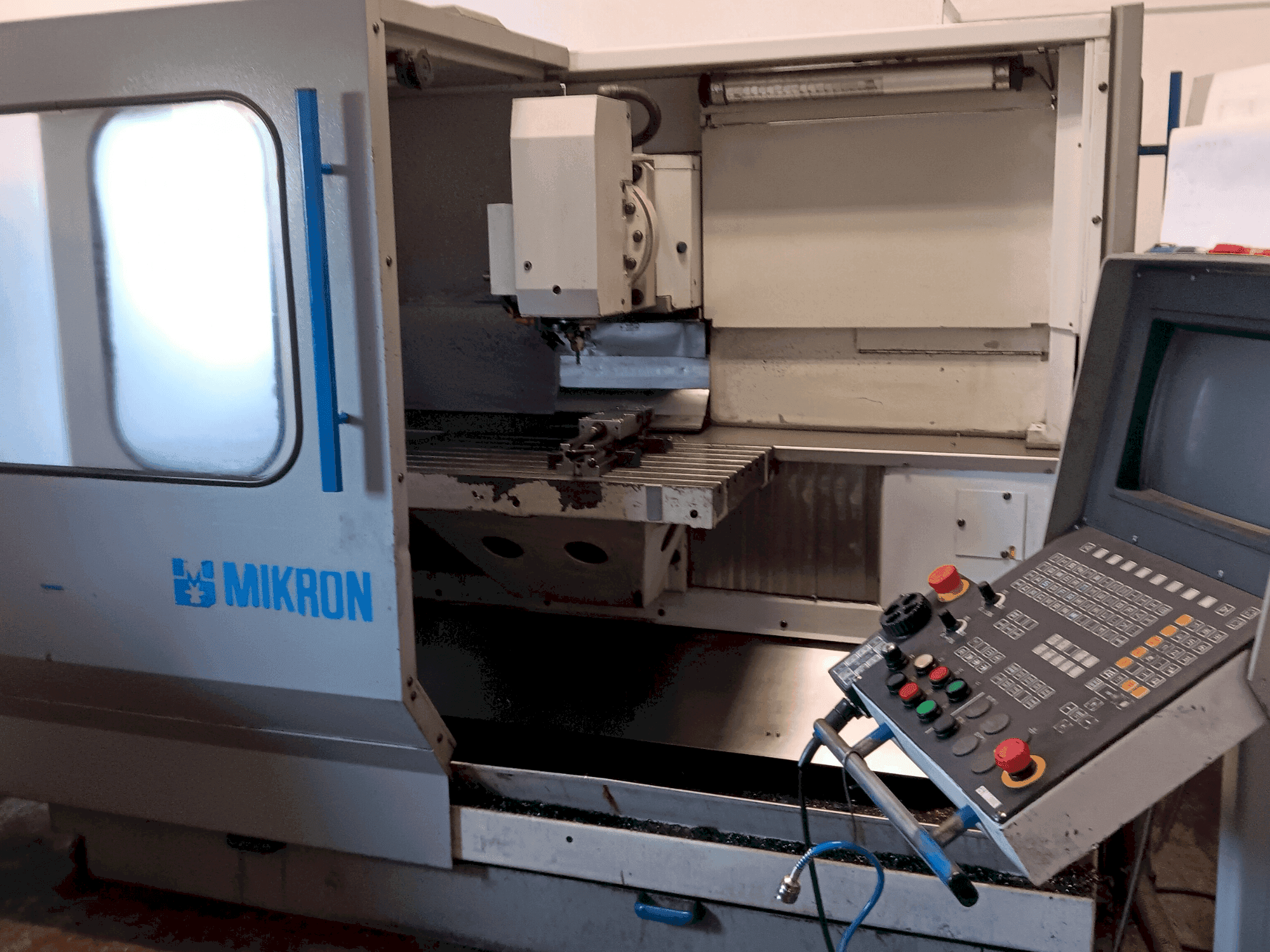

MIKRON - UM 600DE-MIL-MIK-1997-00001

Additional Equipment

• - Noise Emission: Sound power level of 75 dB (A)

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Ac main spindle drive
  • - Drive power at 40% duty cycle: 9 kw // drive power at 100% duty cycle: 6 kw
  • - Max. Torque at the spindle: 35 nm
  • - Stepless speed control: yes
  • - Tool spindles (fk 40)
  • - Max. Torque at the spindle at 40% duty cycle: 800 nm
  • - Speed range adjustable: 5 - 5000 min⁻¹
  • - Number of gear stages: 4
  • - Minimum draw-in force: 100000 n
  • - Minimum ejection force: 3500 n

Extra information

• - Movement Travels in Automatic Mode: Rapid traverse of the clamping fixture (X-axis): 600 mm Rapid traverse of the spindle slide (Z-axis): 500 mm Rapid traverse of the clamping fixture (Z-axis): 450 mm AC Feed Drives Programmable feed rate: 0 - 15000 mm/min (X, Y-axis), 0 - 12000 mm/min (Z-axis) Rapid traverse speed: 15 m/min (X, Y-axis), 12 m/min (Z-axis) Feed force at 100% duty cycle: 9000 N (X, Y-axis), 11000 N (Z-axis) Media Coolant System Capacity: 150 liters Flow rate: approx. 30 l/min at 2.2 bar
