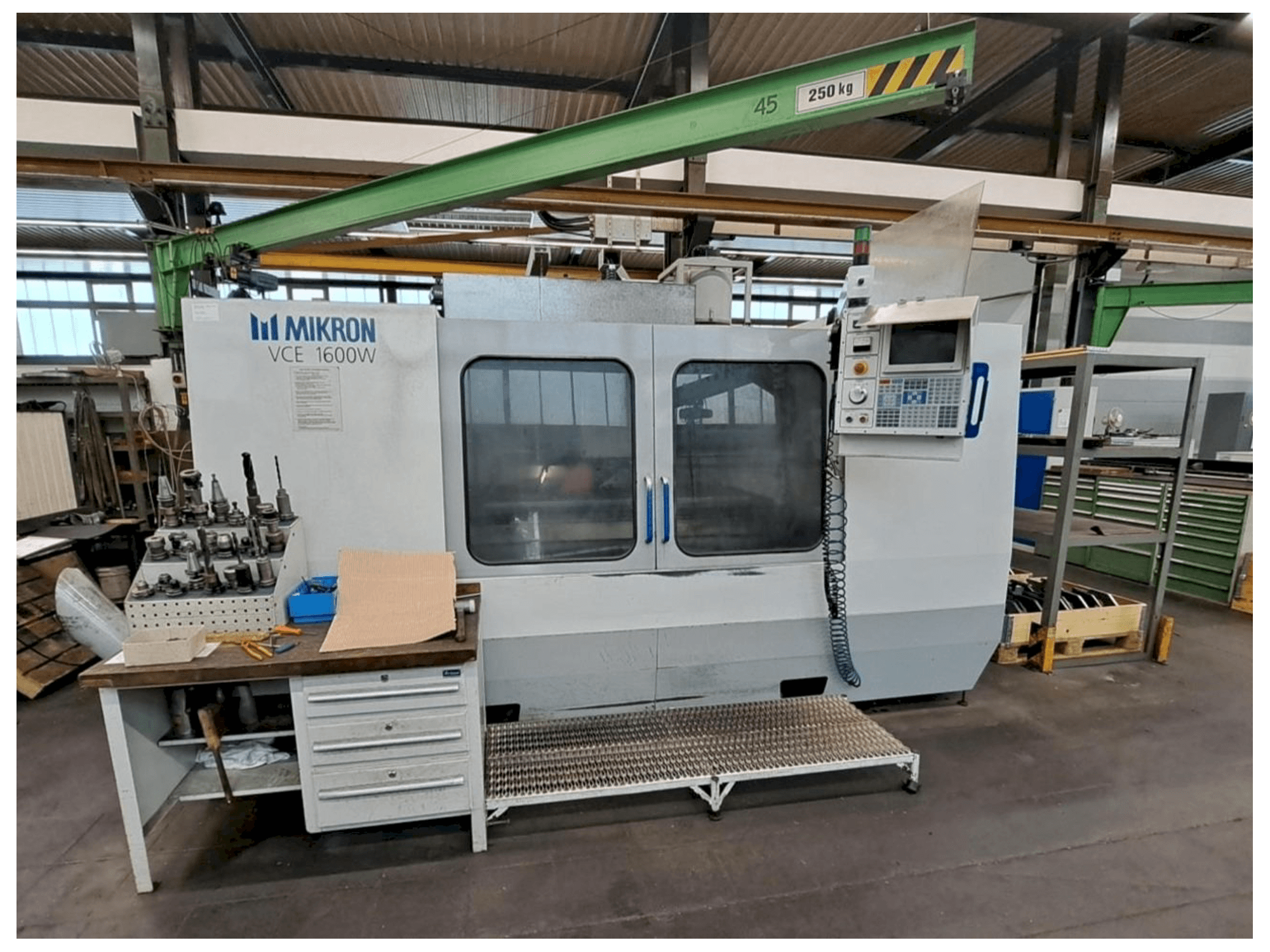

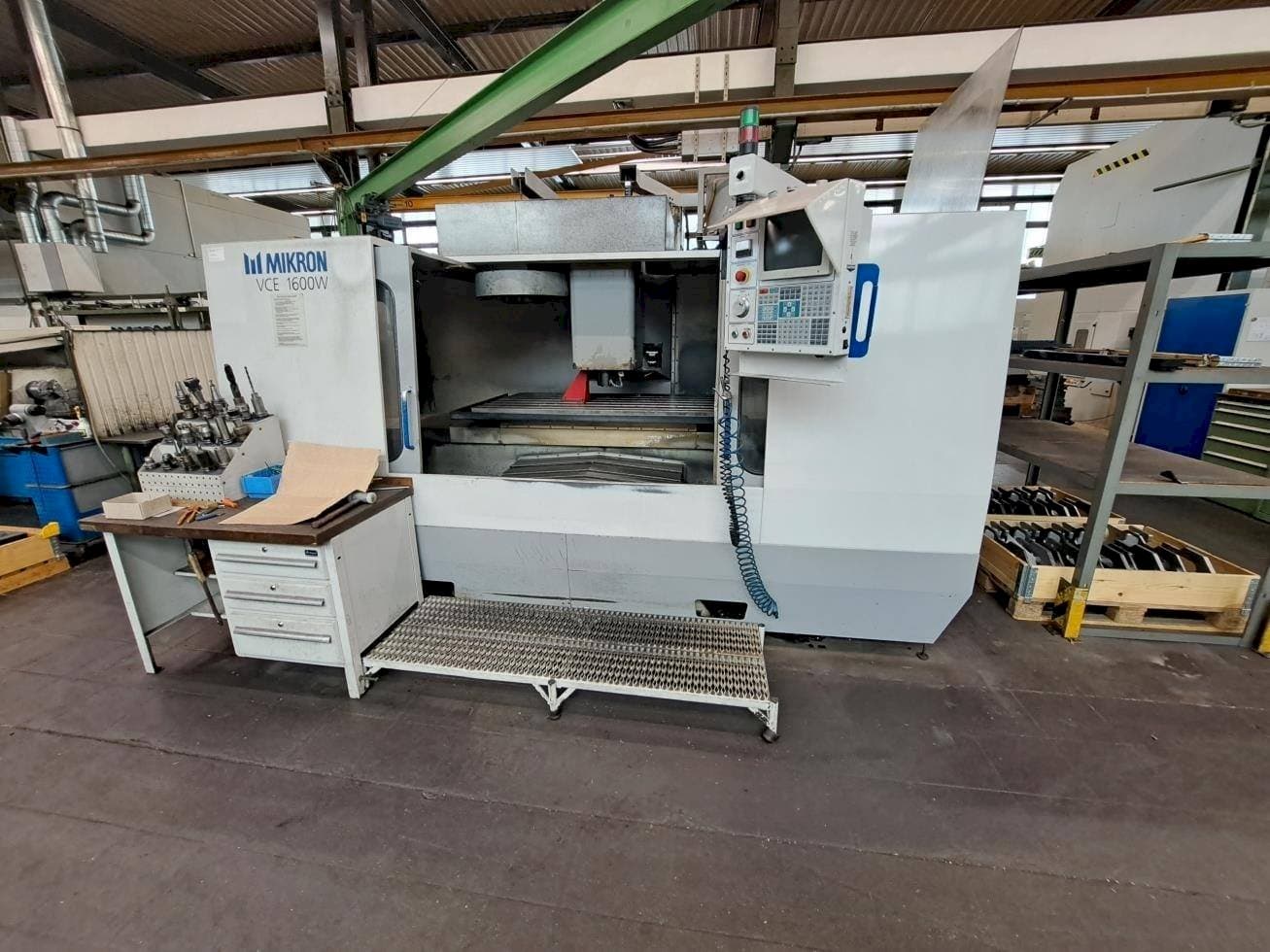

MIKRON VCE 1600W Vertical Machine Center

This MIKRON VCE 1600W Vertical Machine Center was built in the year 1999 in the United States. It is equipped with a Haas control unit. The machine has a spindle speed of 10-7500 rpm.

Overview

brand: MIKRON
year: 1999
MODEL: VCE 1600W
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - MIKRON VCE 1600W

General Data

Measurements width: 3963 mm
Measurements depth: 3531 mm
Measurements height: 3263 mm
Machine weight: 10900 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 10-7500 1/MIN
Spindle motor power: 11 kW
Tool taper: DIN 69871/ISO40

Movement

X-AXIS Movement: 1625 mm
Y-AXIS Movement: 1016 mm
Z-AXIS Movement: 762 mm

Table

Outer length: 1625 mm
Outer width: 914 mm

Tools

Slots in storage: 20

Media

Main electronic connection: 3 x 400V

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum drive power: 15 kw
- - Feed rates (x, y and z axes): 0 -7600 mm/min
- - Tool change time: 5 sec
- - Axis a: 360 degrees (hrt210 divider)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
