➤ Used MIKRON VCE 800 Pro For Sale | gindumac.com

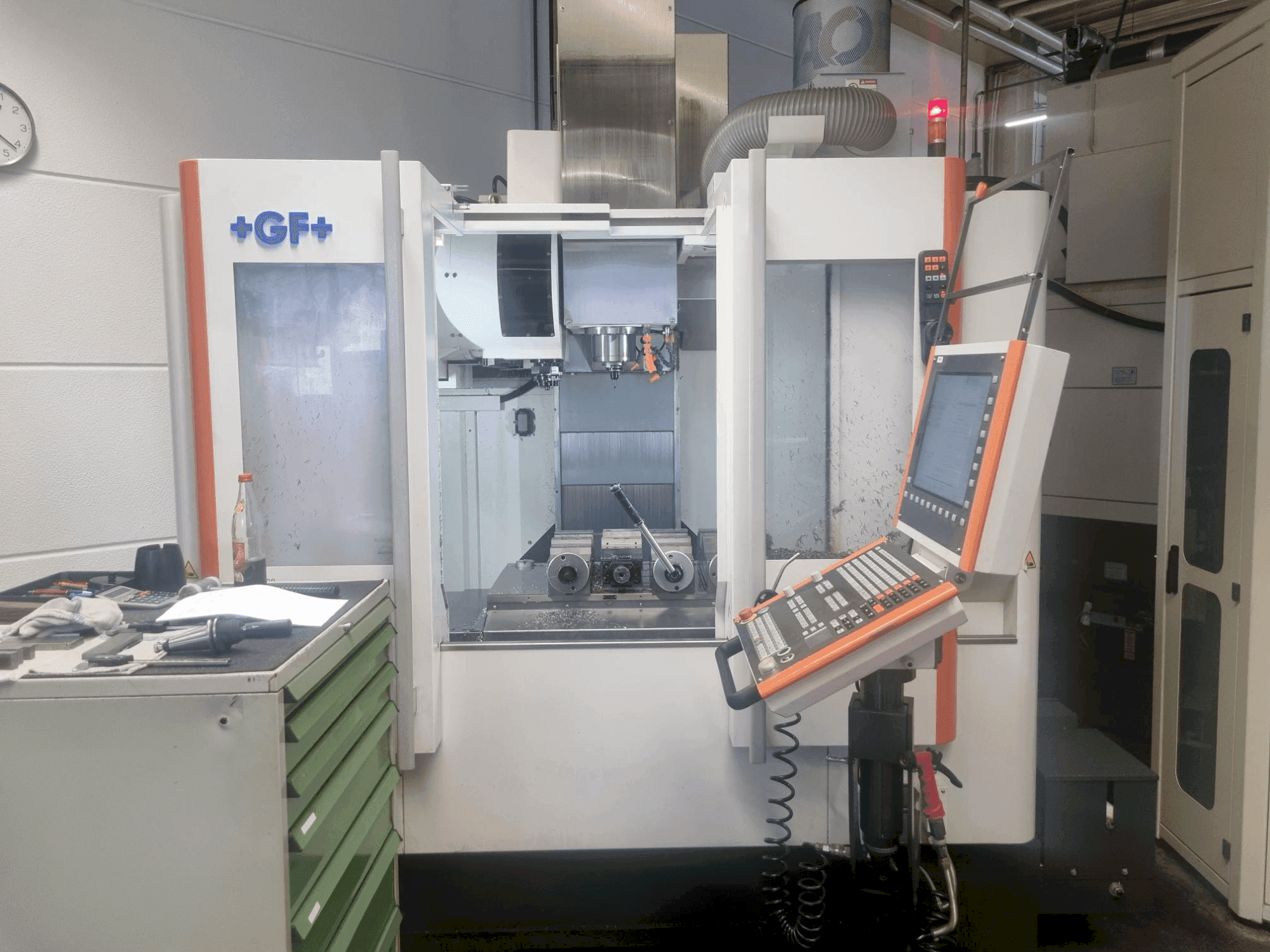

This 3-axis MIKRON VCE 800 Pro vertical machining centre was manufactured in 2019. It features a Heidenhain TNC 620 control, a 10,000 rpm spindle, and a tool magazine with 40 slots for ISO 40 tools. Additional highlights include a spindle cooling system, chip conveyor, and IKZ at 20 bar. A great opportunity to buy this MIKRON VCE 800 Pro vertical machining centre. For more information about this vertical machining centre, please reach out to us.

Overview

brand: MIKRON
year: 2019
MODEL: VCE 800 Pro
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - MIKRON VCE 800 Pro

Control Unit

Model: TNC 620
Brand: HEIDENHAIN

Main drive

Spindle speed range: 10000 1/MIN
Tool taper: ISO 40
Number of axis: 3

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 540 mm

Tools

Slots in storage: 40

Media

Oil water separator: Yes
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Tool magazine: 40x ISO 40 with panel
- Conversion kit: ISO 40 for DIN pull studs
- Linear scales: VCE800 Pro
- Software option: 17 touch probe TNC620
- Spindle cooling system: Air/water
- 3D probe: m&h
- Tool length measurement: m&h
- Bed flushing
- Air through spindle centre
- Spray gun

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Comprehensive tool magazine with 40 positions
- - Advanced cooling and filtration systems
- - Equipped with linear scales for precision
- - Integrated 3d probe and tool length measurement
- - Without any clamping devices and tools
- - Without suction

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
