MIKRON - VCP 600DE-MIL-MIK-2000-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- MIKRON VCP 600 Vertical Machining Center

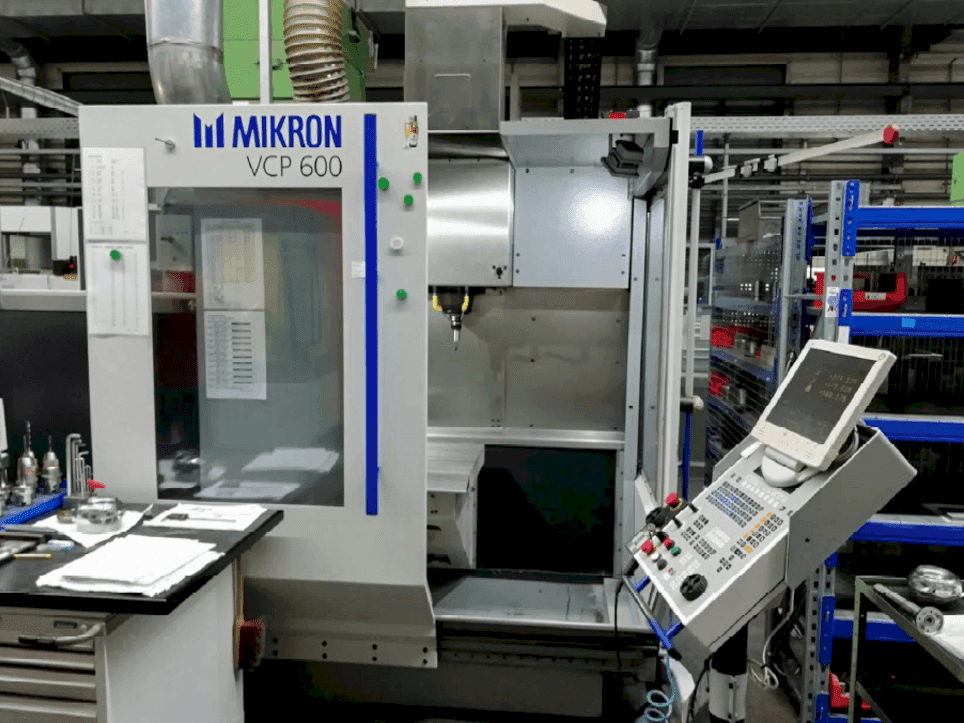

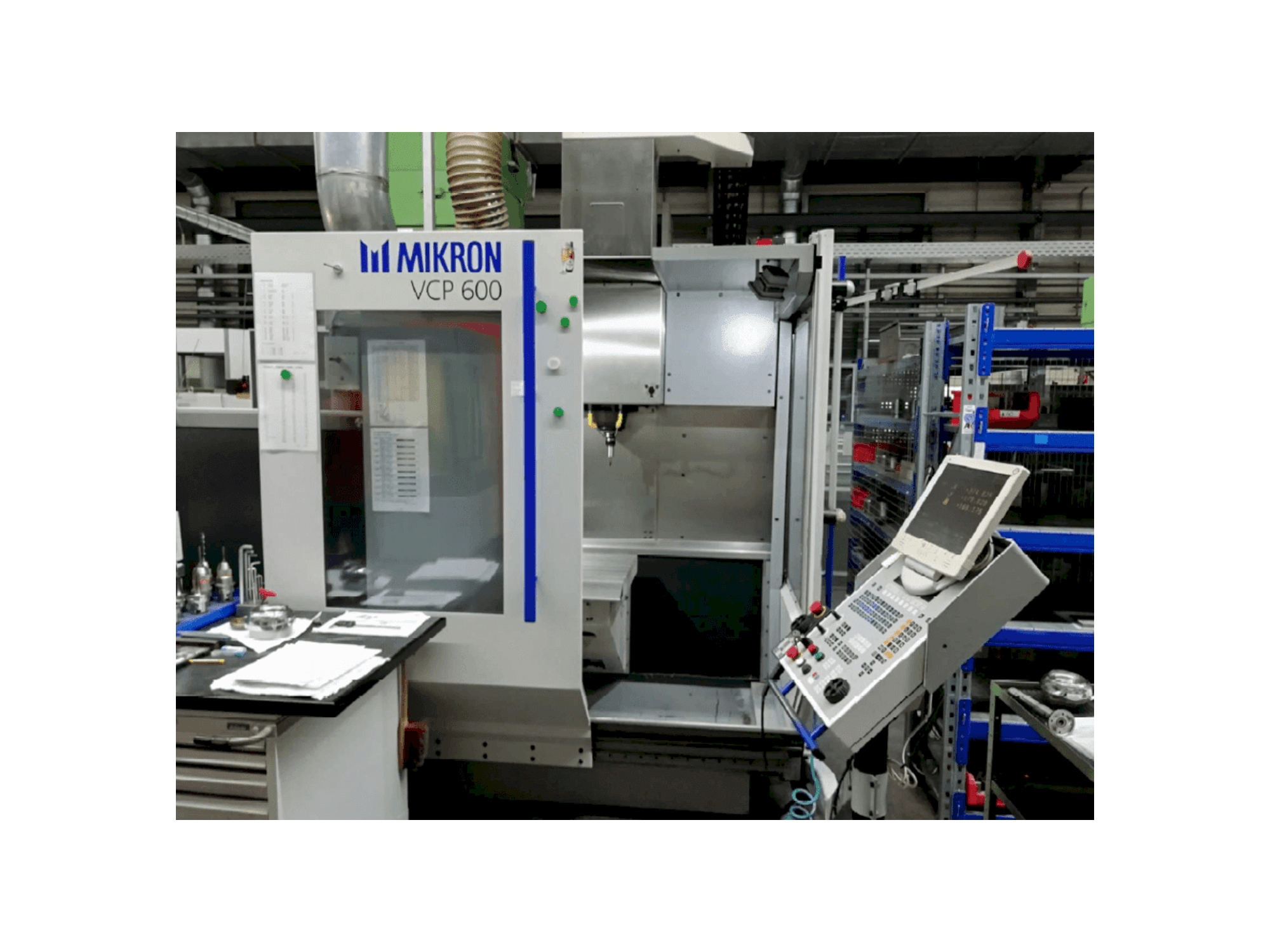

This MIKRON VCP 600 Vertical Machining Center was made in Switzerland in the year 2000. This 3 axis machine works with a spindle speed range 100 - 20000 rpm.
Overview
- brand: MIKRON
- year: 2000
- MODEL: VCP 600
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: Heidenhain
Technical Information - MIKRON VCP 600
General Data
- Measurements width: 3900 mm
- Measurements depth: 3500 mm
- Measurements height: 2700 mm
- Machine weight: 6500 kg
Control Unit
- Brand: Heidenhain
- Model: 426/430
Main drive
- Spindle speed range: 100 - 20000 1/MIN
- Spindle motor power: 12 / 16 kW
- Tool taper: HSK-A63
Movement
- X-AXIS Movement: 600 mm
- Y-AXIS Movement: 450 mm
- Z-AXIS Movement: 450 mm
Table
- Outer length: 850 mm
- Outer width: 530 mm
- TSlots size: 6x 14H12 x 63 mm
- Table load: 400 kg
Tools
- Max weight: 6 kg
- Max tool diameter: 90 mm
- Max tool length: 250 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
