Mitsubishi - EA8PL-EDM-MIT-1999-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

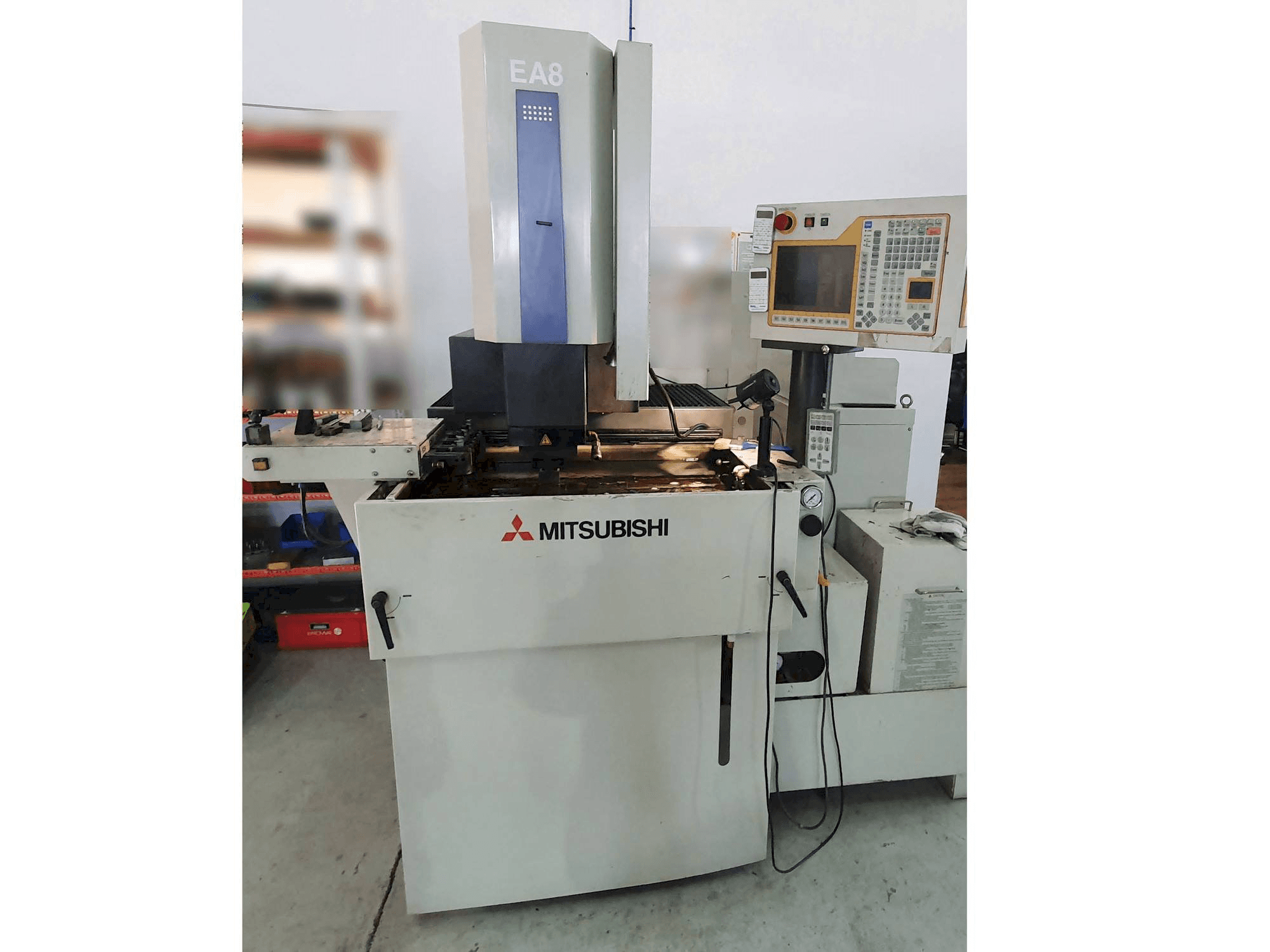

This Mitsubishi EA8 Erosion Machine was built in the year 1999 in Japan. It is equipped with a Mitsubishi FP-60EA Control unit. This machine includes a handheld remote, a fire extinguishing system and works with a EROWA system. It is in very good condition and still at production. This machine presents its full documentation available.

Overview

brand: Mitsubishi
year: 1999
MODEL: EA8
application type: EDM
Location: Poland
machine type: Wire EDM Machine
availability: Sold
control unit brand: MITSUBISHI

Technical Information - Mitsubishi EA8

General Data

Measurements width: 2046 mm
Measurements depth: 2177 mm
Measurements height: 2020 mm
Machine weight: 1200 kg

Control Unit

Model: FP-60EA
Brand: MITSUBISHI

Movement

X-AXIS Movement: 300 mm
Y-AXIS Movement: 250 mm
Z-AXIS Movement: 250 mm

Workpiece

Workpiece weight: 550 kg

Table

Outer length: 500 mm
Inner length: 350 mm

Media

Main electronic connection: 200/220 V 3 PE - 50/50 Hz

Additional Equipment

- Handheld remote
- Fire extinguishing system

Additional Information

Machine Benefits

Technical Machine Benefits:
- - C axis rotation: 0. 001 deg
- - Max. Workpiece dimensions: 740 x 470 x 150 mm
- - Max. Fluid level: 200 mm
- - System erowa
- - Max. Electrode weight: 5 kg
- - Atc electrons: 4 pcs
- - Dielectric fluid reservoir: 196 l
Qualitative Machine Benefits:
- - The machine is in very good condition and still at the production.
- - Full documentation available.
- - There are no tooling included in the offer.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
