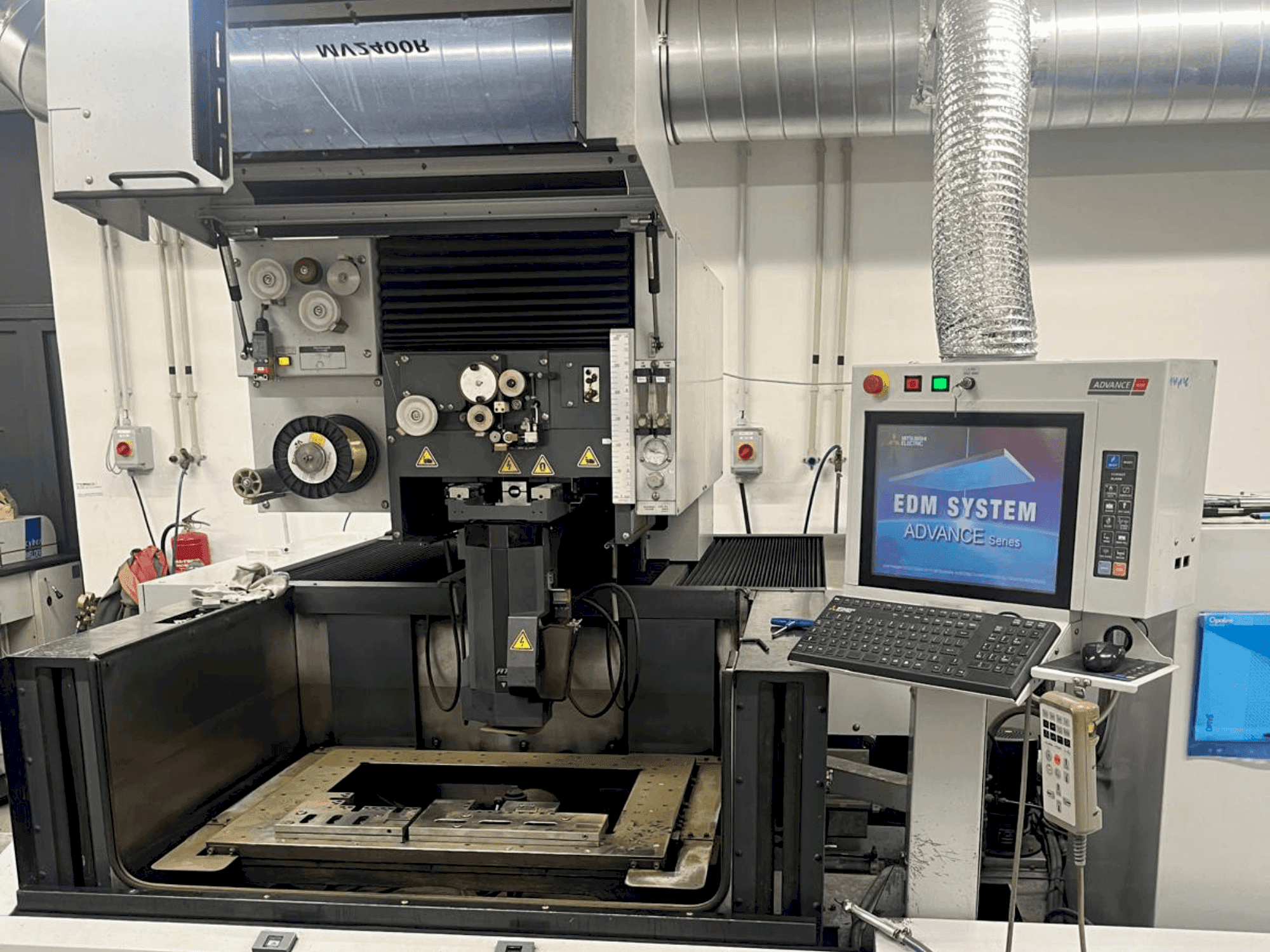

This 5-axis Mitsubishi MV2400 R wire EDM machine was manufactured in 2012. It features linear drives and glass measuring rulers on the X, Y, U, V axes, enhancing precision. The integrated wire shredder and closed cooling compressor system ensure efficient operation. Connectivity options include Ethernet and USB interfaces. If you are looking to get high-quality EDM capabilities, consider the Mitsubishi MV2400 R machine we have for sale. Contact us for more information about this machine.
Overview
- brand: Mitsubishi
- year: 2012
- MODEL: MV2400 R
- application type: EDM
- Location: Czech Republic
- machine type: Wire EDM Machine
- availability: Immediately
- control unit brand: MITSUBISHI
Technical Information - Mitsubishi MV2400 R
General Data
- Measurements width: 3030 m MM
- Measurements depth: 2687 mm
- Measurements height: 2150 mm
- Machine weight: 3500 kg
Control Unit
- Brand: MITSUBISHI
Main drive
- Wire diameter: 0.1 - 0.3 mm
- Number of axis: 5
Movement
- X-AXIS Movement: 600 mm
- Y-AXIS Movement: 400 mm
- Z-AXIS Movement: 310 mm
- V-Axis Movement: 150 mm
- U-Axis Movement: 150 mm
Workpiece
- Workpiece weight: 1500 kg
Additional Equipment
- - Linear (tubular) drives in the X, Y, U, V axes
- - Glass measuring rulers in the X, Y, U, V axes
- - Integrated wire shredder
- - Closed cooling compressor system
- - Finishing generator FMC 50A, achievable surface up to Ra = 0.3
- - 3-2 micron filter unit
- - Optical communication between drives, servos, and control system
- - Connectivity: Ethernet, 2xUSB interface, keyboard, mouse
Additional Information
- Technical Machine Benefits:
- - Table size: 840 x 640 mm
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
