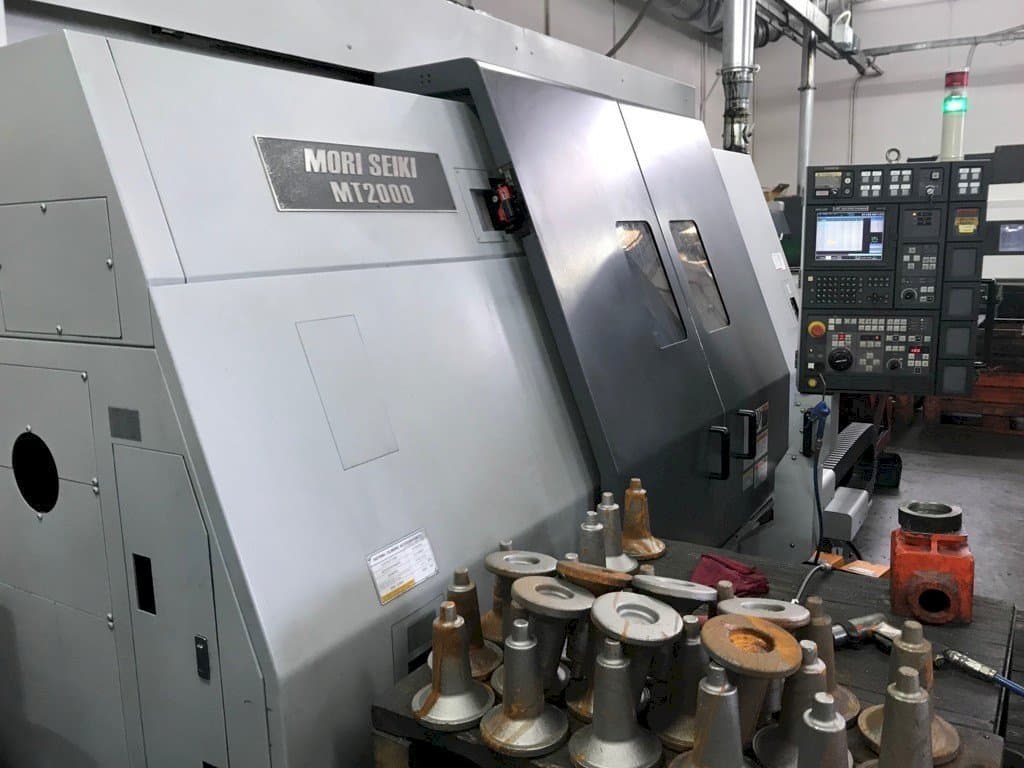

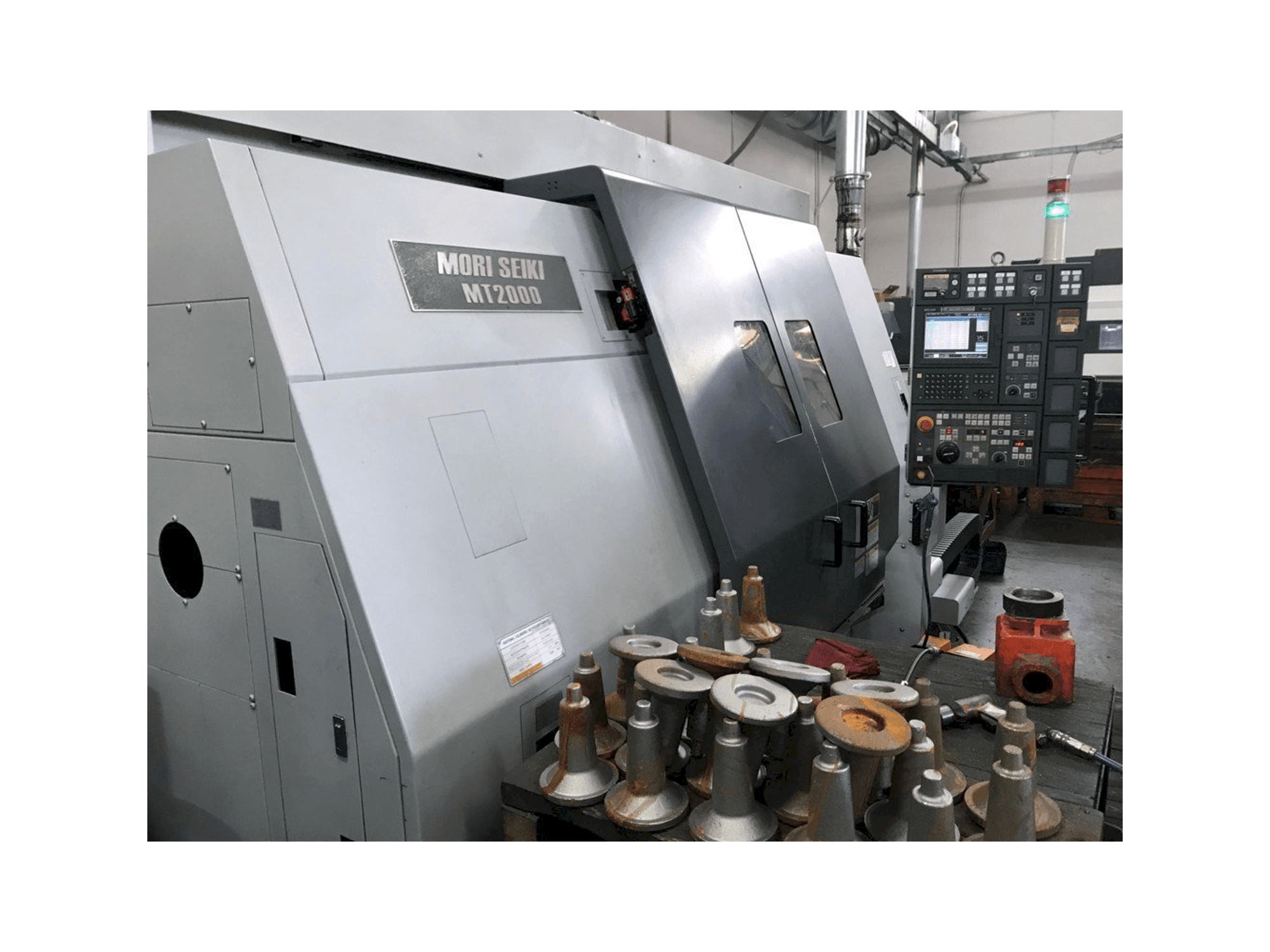

MORI SEIKI MT 2002 SZ Lathe

This MORI SEIKI MT 2002 SZ Lathe was manufactured in 2002 in Japan. Equipped with a MORI SEIKI MSG 501 Control unit, this double spindled machine can work with a speed of 4500 and 6000 rpm respectively.

Overview

brand: MORI SEIKI
year: 2002
MODEL: MT 2002 SZ
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
availability: Sold

Technical Information - MORI SEIKI MT 2002 SZ

General Data

Measurements width: 2650 mm
Measurements depth: 3830 mm
Measurements height: 2881 mm
Machine weight: 12000 kg

Control Unit

Model: MSG 501

Main drive

Number of spindles: 2
Spindle speed range: 4500/6000 1/MIN
Spindle motor power: 22 kW

Movement

X-AXIS Movement: 565 mm
Y-AXIS Movement: +/- 80 mm
Z-AXIS Movement: 1077 mm
Backgauge-X Movement: 155 mm
Backgauge-X1 Movement: 933 mm

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum working diameter: 550 mm
- - Maximum working length: 1020 mm
- - Motorized lower turret
- - End of cycle lamp
- - Auto-off
- - Tool life management

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
