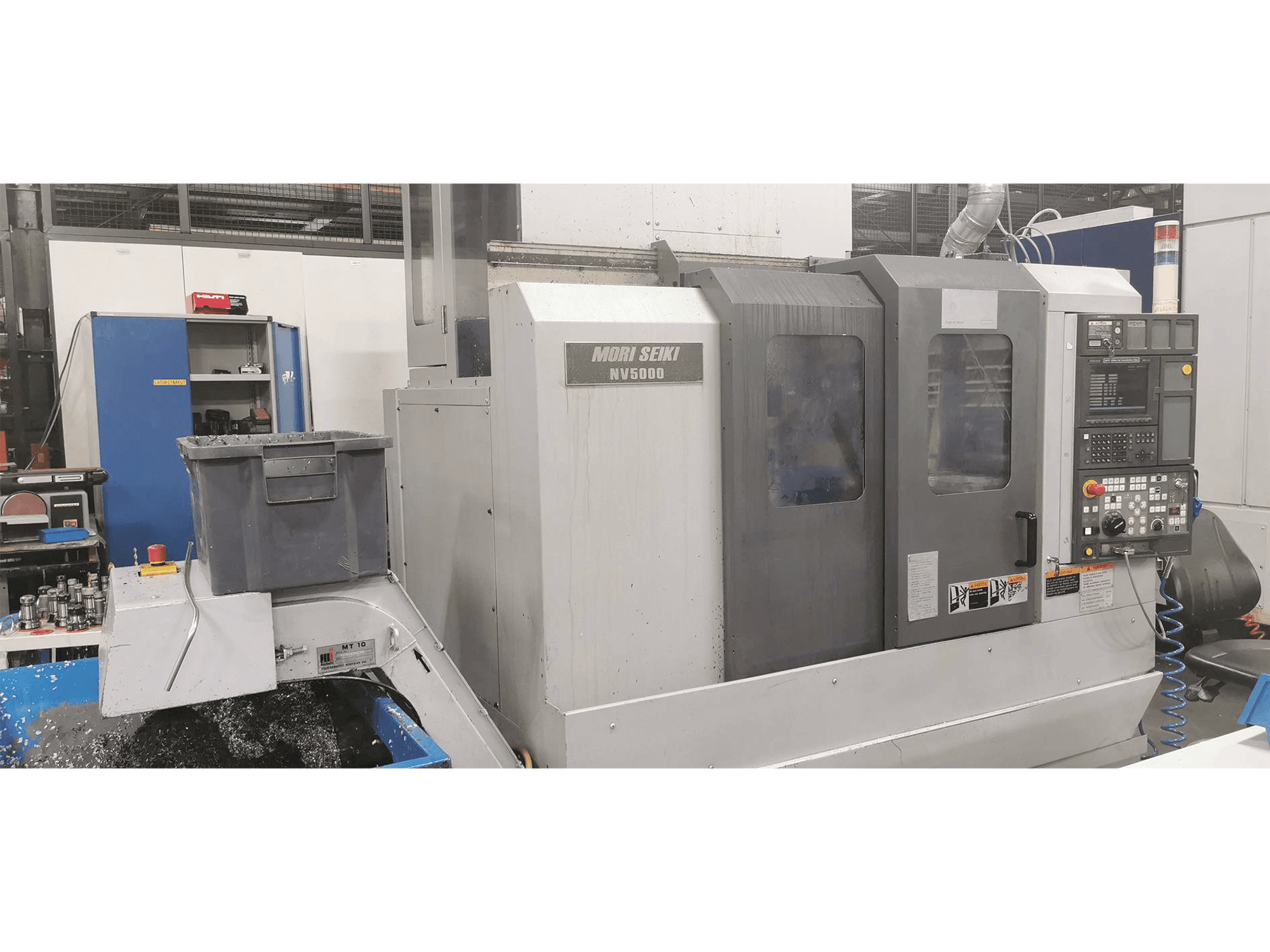

MORI SEIKI NV 5000 Vertical Machining Center

This MORI SEIKI NV 5000 Vertical Machining Center made in Japan in 2003. This machine has a production record of 18600 working hours. Equipped with a MORI SEIKI MSG-501 control unit. It can work with a spindle speed up to 14000 rpm. Machine in very good condition.

Overview

brand: MORI SEIKI
year: 2003
MODEL: NV 5000
production hours: 18600
application type: Milling
Location: Finland
machine type: Vertical Machining Centre
availability: Sold

Technical Information - MORI SEIKI NV 5000

General Data

Measurements width: 2788 mm
Measurements depth: 3040 mm
Measurements height: 2603 mm
Machine weight: 6350 kg

Control Unit

Model: MSG-501

Main drive

Number of spindles: 1
Spindle speed range: 14000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 787 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 508 mm

Workpiece

Workpiece weight: 300 kg

Table

Outer length: 1100 mm
Outer width: 600 mm

Tools

Slots in storage: 30
Type of tool holder: BT40

Media

Main electronic connection: 400 V
Power consumption: 61 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - C axis 360 degrees
- - B axis +110 degrees/-35 degrees
- - Min. -max. Height under spindle 102-610 mm
- - Feedrate 16. 5 m/min.
- - Rapid feedrate 30. 5 m/min.
- - Spindle motor power 22. 4 kw
- - Through spindle coolant, coolant
- - Interlocked guards, remote hand wheel, hard disk 1gb, usb port
Qualitative Machine Benefits:
- - Very good condition
- - Machine manual included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
