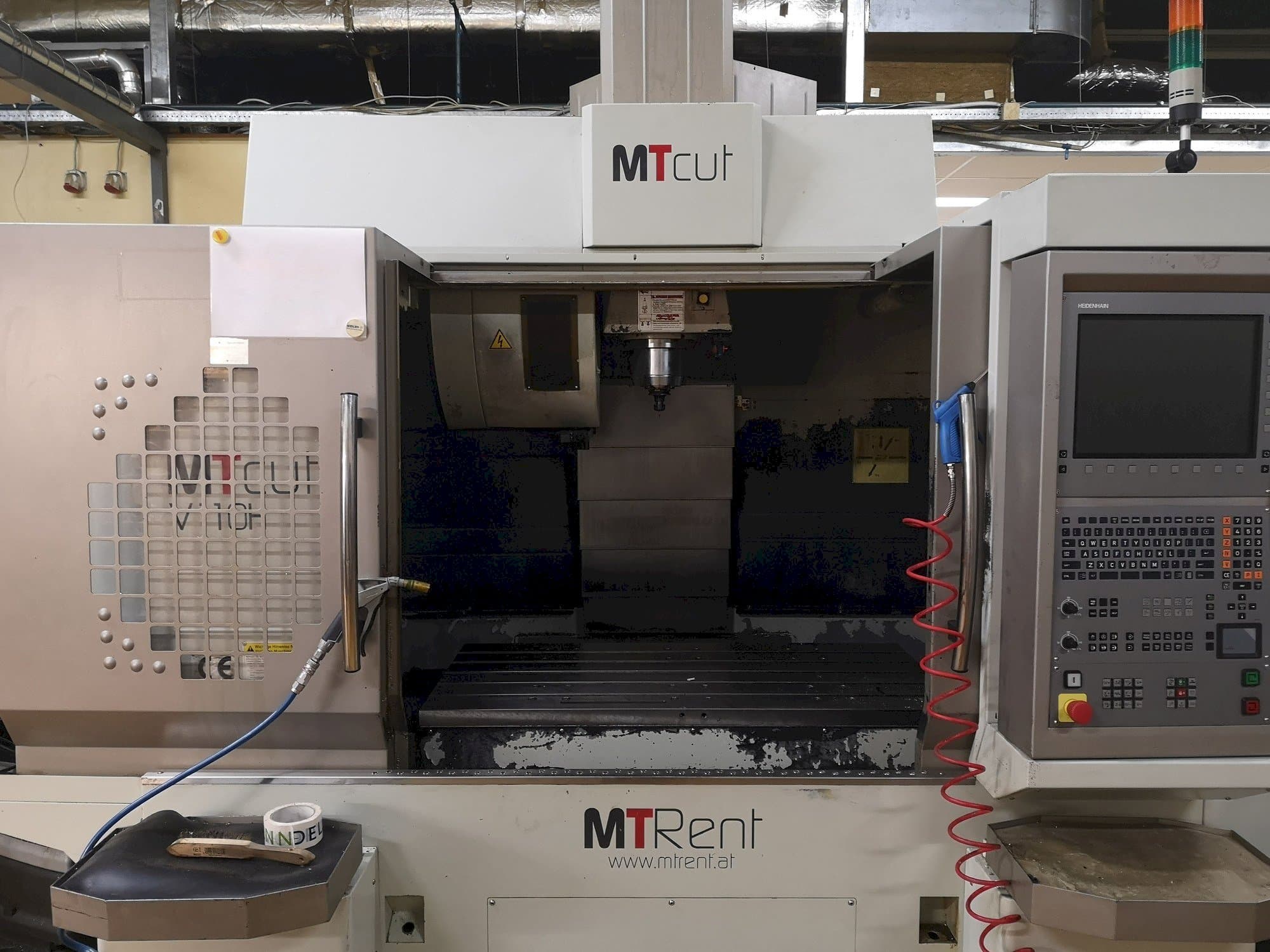

MT Cut V110H Vertical Machining Center

This MT Cut V110H Vertical Machining Center was made in 2007 in Taiwan. It can work with a spindle speed up to 12000 rpm. Must be noted that this machine has damaged housing. You can see it on the last picture in the gallery.

Overview

brand: MTcut
year: 2007
MODEL: Cut V110H
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - MTcut Cut V110H

General Data

Measurements width: 3160 MM
Measurements depth: 2870 MM
Measurements height: 3000 MM
Machine weight: 850 KG

Control Unit

Brand: HEIDENHAIN

Main drive

Spindle speed range: 12000 1/MIN

Movement

X-AXIS Movement: 1100 mm
X-AXIS Rapid traverse: 32M/MIN
Y-AXIS Movement: 610 MM
Y-AXIS Rapid traverse: 32M/MIN
Z-AXIS Movement: 610 MM
Z-AXIS Rapid traverse: 32M/MIN

Table

Outer length: 1250 mm
Outer width: 610 mm
TSlots size: 18MM X 5 X 100MM
Table load: 1000 KG

Tools

Type of tool holder: BT40/CAT40/DIN40/BBT40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle diameter Ø 70mm
- - Positioning accuracy 0. 005mm
- - Repeat accuracy x. Y. And z-axis 0,003mm
- - Distance spindle nose - work table: 120 - 730mm
- - Distance spindle centre to stand 668mm

Extra information

- This machine has damaged housing

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
